Low Drift Inertial Measurement Unit Sensor For Dam Monitoring
Low Drift Inertial Measurement Unit Sensor For Dam Monitoring
Specifications
Brand Name :
Firepower
Model Number :
GI200F-A0
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000/month
Delivery Time :
1 week
Packaging Details :
sponge/box
Product name :
IMU Accelerometer Gyro
Gryo scope :
500deg/s
Gryo allan variance :
2deg/h
Accelerometer allan variance :
0.1mg
Accelerometer scope :
16g
Communication interface :
1-channel SPI/UART
Gryo scale factor accuracy :
0.3%
Power Supply Voltage :
3.3V
Description

Low Drift Inertial Measurement Unit Sensor


Product Description


The GI200F-A0-IMU is an inertial measurement unit (IMU) based on micromachining technology (MEMS), with built-in high-performance MEMS gyroscope and MEMS accelerometer, outputting 3 angular velocities and 3 accelerations.



Main Functions

  1. Three-axis digital gyroscope:
    1. ± 500º/s dynamic measuring range;
    2. Zero bias stability: 10 °/H (GJB, 10s), 2.0 °/H (ALLAN);
  2. Triaxial digital accelerometer:
    1. ± 16g dynamic measuring range;
    2. Zero-bias stability: 0.5mg (GJB, 10s), 0.1mg (ALLAN);
  3. High reliability: MTBF > 20000h;
  4. Guaranteed accuracy within the full temperature range (-40 ℃~ 70 ℃): built-in high-performance temperature calibration and compensation algorithm;
  5. Suitable for working under strong vibration conditions;
  6. Interface 1 channel SPI, 1 channel UART.


Performance Index


Parameter Test conditions Minimum value Typical value Maximum value Unit
Gyro Dynamic measuring range 　

500 º/s
Zero bias stability Allan variance
2 　 º/h
10 s average (-40 ℃ ~ + 70 ℃, constant temperature)
10 　 º/h
Zero bias Zero bias range
±0.5 　 º/s
Zero-bias variation over full temperature range①
±0.5 　 º/s
Scale factor Scale factor accuracy
0.3 　 %
Scale factor nonlinearity
0.02 　 %FS
Bandwidth 　 　 200 　 Hz
Accelerometer Dynamic measuring range 　
16 　 g
Zero bias stability Allan variance
0.1 　 mg
10 s average (-40 ℃ ~ + 70 ℃, constant temperature)
0.5 　 mg
Zero bias Zero bias range
2 　 mg
Zero bias change in full temperature range, peak-to-peak value①
2 　 mg
Scale factor Scale factor accuracy
0.3 　 %
Scale factor nonlinearity
0.02 　 %FS
Bandwidth 　 　 200 　 Hz
Communication interface 1-channel SPI Baud rate

15 MHz
UART Baud rate
230.4 　 Kbps
Sampling frequency SPI
1000 　 Hz
UART 　 200 1000 Hz
Electrical characteristics Voltage 　
3.3 　 V
Power consumption 　

1 W
Ripple P-P 　 　 100 mV
Structural characteristics Size 　
24×24×10 　 mm
Weight 　 　 10 　 g
Use environment Operating temperature 　 -40
70 ℃
Storage temperature 　 -45
85 ℃
Vibration 　
20~2000Hz,6.06g 　
Impact 　 　 1000g,0.5ms 　 　
Reliability MTBF 　
20000 　 h
Continuous working time 　 　 120 　 h
1: Calculate the zero deviation of the whole temperature change process, the temperature change rate is ≤ 1 ℃/min, and the temperature range is-40 ℃ ~ + 70 ℃;


Electrical interface


Low Drift Inertial Measurement Unit Sensor For Dam Monitoring

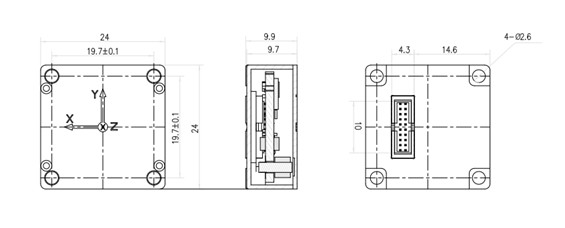

Product Structure


Low Drift Inertial Measurement Unit Sensor For Dam Monitoring

L24mm x W24mm x H10mm(L x W x H)
