Specifications
Brand Name :
FIREPOWER
Model Number :
IMU6
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500/month
Delivery Time :
7 days for sample
Packaging Details :
sponge+box
Gyro Range :
±400°/s
Gyro zero bias stability :
≤0.5°/h
Acc Range :
30g
Scale factor nonlinearity :
0.02mg
Power Supply :
5V
Bandwidth :
125Hz
Description
Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low Noise
Key Specifications
Attribute Value
Gyro Range ±400°/s
Gyro zero bias stability ≤0.5°/h
Acc Range 30g
Scale factor nonlinearity 0.02mg
Power Supply 5V
Bandwidth 125Hz
Product Overview

The MEMS inertial measurement unit integrates a three-axis gyroscope, three-axis accelerometer, three-axis inclinometer, temperature sensor, signal processing board, and supporting software. This comprehensive system measures three-axis angular rate, acceleration, and inclination angle of a carrier, delivering compensated data (including temperature compensation, installation misalignment compensation, and nonlinear compensation) through an RS-422 serial port using standardized communication protocols.

Technical Parameters
Gyroscope Specifications
Parameter Unit IMU6-1 IMU6-1A
Measuring range (customizable) °/s ±400 ±400
Zero bias stability (@ Allan Variance) °/h 1 0.5
Zero bias stability (1s smooth, 1σ, room temperature) °/h 10 5
Zero bias stability (10s smooth, 1σ, room temperature) °/h 5 1
Zero-bias error over full temperature range °/h 20 10
Random walk °/√h 0.2 0.1
Zero-bias repeatability °/h 10 5
Zero bias acceleration sensitivity °/h/g 1 1
Resolution °/h 2 1
Scale factor nonlinearity ppm 500
Scale factor repeatability ppm 500
Cross coupling % 0.1
Bandwidth Hz 125
Accelerometer Specifications
Parameter Unit IMU6-1y-1 IMU6-1y-2
Measuring range (customizable) g ±10 ±30
Zero-bias stability (Allan Variance @ 25 ºC) mg 0.02 0.05
Zero-bias stability (1s smoothing) mg 0.1 0.5
Zero-bias stability (10 s smoothing) mg 0.05 0.2
Zero-bias error over full temperature range mg 1 3
Random walk m/s/√h 0.001 0.002
Zero-bias repeatability mg 0.1 0.5
Scale factor repeatability ppm 500
Scale factor nonlinearity ppm 500
Bandwidth Hz 125

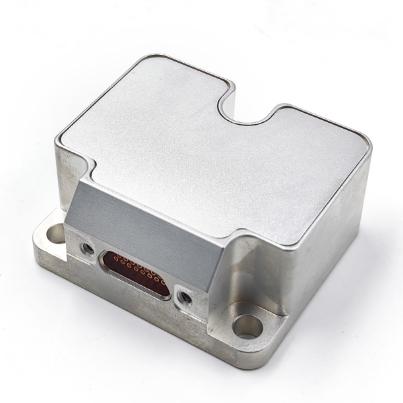

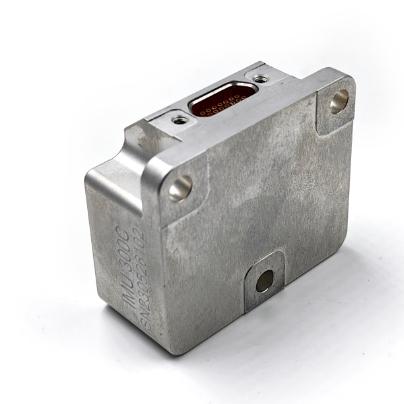

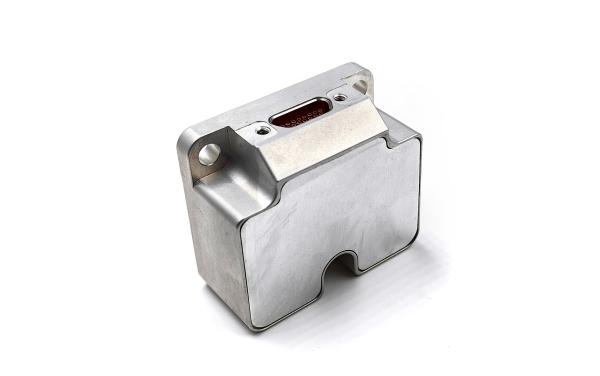

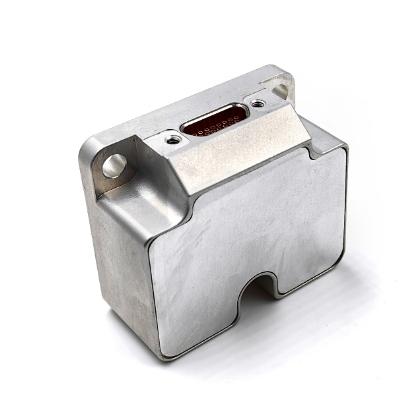

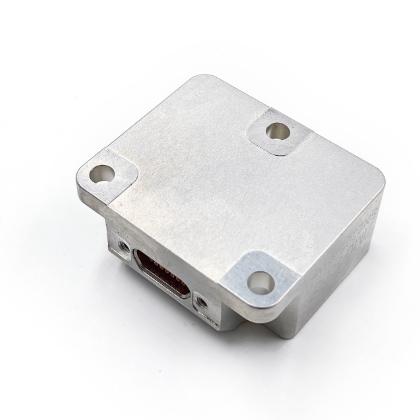

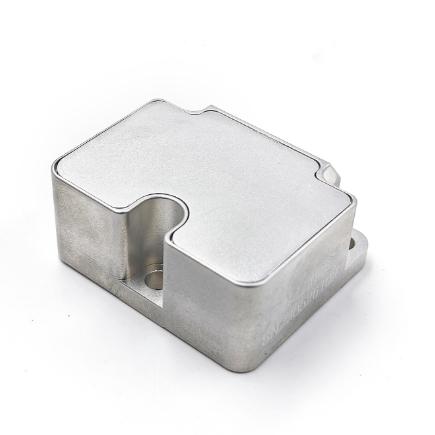

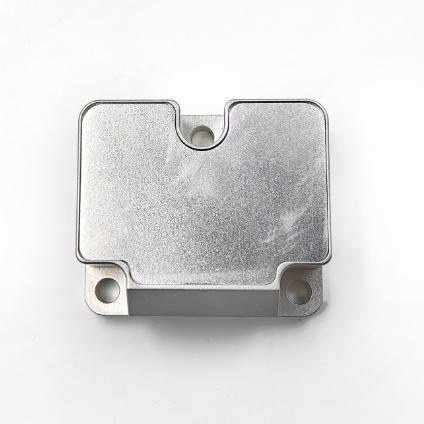

Product Images
Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low noise
Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low noise
Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low noise
Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low noise
Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low noise
Outline Drawing
Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low noise
