Specifications
Brand Name :
FIREPOWER
Model Number :
16488HA
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
200$
Payment Terms :
D/A,L/C,T/T
Supply Ability :
500pcs
Delivery Time :
1 week for Sample
Packaging Details :
box
Gyro Dynamic measuring range :
±450°/s
Zero-bias stability (@ Allan variance) :
≤0.3 °/h
Zero bias stability(10s smooth) :
≤3°/h
Angular random walk :
≤0.15 °/h
Scale factor nonlinearity :
100ppm
Acc range :
±20g
Acc Zero-bias stability (Allan Variance @ 25 ℃) :
0.07mg
Zero-bias error over full temperature range :
1.5mg
Communication Interface :
1-way SPI
Voltage :
3.3V
Description
ADIS16488 Replacement Sensors MEMS Inertial Measurement Unit (IMU) Accelerometer Gyro
Key Specifications
Attribute Value
Gyro Dynamic measuring range ±450°/s
Zero-bias stability (@ Allan variance) ≤0.3 °/h
Zero bias stability (10s smooth) ≤3°/h
Angular random walk ≤0.15 °/h
Scale factor nonlinearity 100ppm
Acc range ±20g
Acc Zero-bias stability (Allan Variance @ 25 ℃) 0.07mg
Zero-bias error over full temperature range 1.5mg
Communication Interface 1-way SPI
Voltage 3.3V

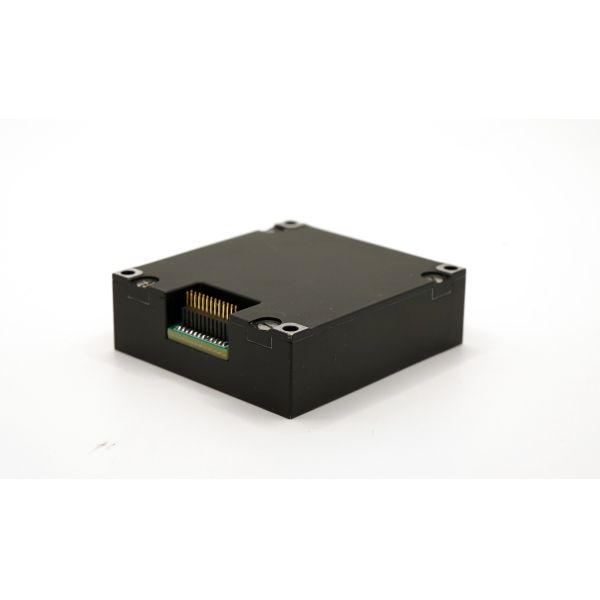

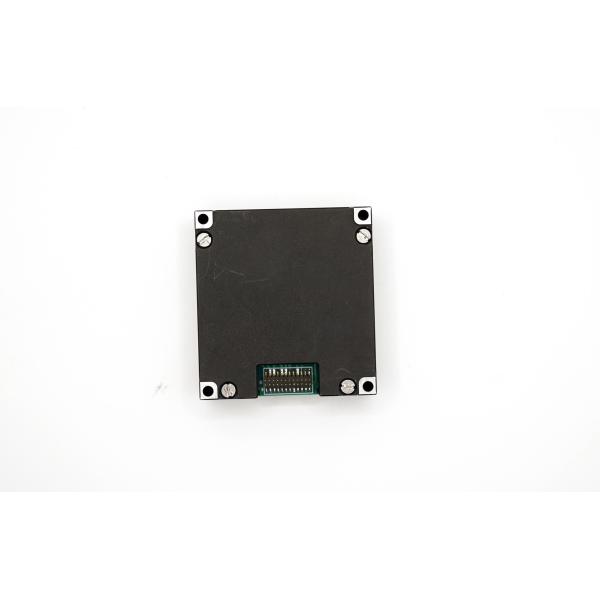

The ADIS16488HA inertial measurement unit is a complete inertial system featuring a built-in three-axis gyroscope and three-axis accelerometer. This high-performance IMU measures three-axis angular rate, acceleration, and other critical parameters of the carrier. The unit outputs error-compensated data (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation) through SPI according to the communication protocol.
Detailed Technical Parameters
Gyroscope Specifications
Parameter Test conditions Minimum value Typical value Maximum value Unit
Dynamic measuring range ±450 º/s
Zero-bias instability Allan variance, better than 0.3 º/h
Zero bias stability 10s smooth, RMS, better than 3 º/h
Zero bias in full temperature range -40 ℃ ~ 85 ℃, 10 s smooth, rms 20 º/h
Random walk 1σ 0.15 º/√h
Zero-bias repeatability 1σ 5 º/h
Scale factor repeatability 1σ 100 ppm
Scale factor nonlinearity 1σ 100 ppm
Bandwidth (-3dB) 250 Hz
Cross coupling 0.1 %
Resolution 2 º/h
Acceleration sensitivity 2 °/h/g
Accelerometer Specifications
Parameter Test conditions Minimum value Typical value Maximum value Unit
Dynamic measuring range ±20 g
Zero bias stability Allan variance 0.07 mg
Zero bias in full temperature range -40 ℃ ~ 85 ℃, 10 s smooth, rms 3 mg
Zero bias stability 10s smooth, RMS, better than 0.25 mg
Random walk 1σ 0.029 m/s/√h
Zero-bias repeatability 1σ 0.5 mg
Scale factor repeatability 1σ 500 ppm
Scale factor nonlinearity FS=20g 500 ppm
Bandwidth (-3dB) 250 Hz
Cross coupling 0.1 %
Communication Interface
1-way SPI Enter the clock frequency 8 15 MHz
Electrical Characteristics
Parameter Test conditions Minimum value Typical value Maximum value Unit
Voltage Direct current 3.3 V
Power consumption 1.5 1.5 W
Ripple P-P 48±2 100 mV
Use Environment
Parameter Test conditions Minimum value Typical value Maximum value Unit
Operating temperature -45 85 ℃
Storage temperature -55 85 ℃
Adis16488 Low Noise 10-DOF Inertial Measurement Unit Sensor for Precision Sensing
ADIS16488 IMU Sensor outline drawing and dimensions
