Specifications
Brand Name :
Firepower
Model Number :
MG2
Place of Origin :
China
MOQ :
1
Price :
500$
Payment Terms :
L/C,T/T
Supply Ability :
500/month
Delivery Time :
1 week
Packaging Details :
Carton+Sponge
Measuring range :
±500°/s
Zero-bias instability :
1°/h
ARW :
0.15°/√h
Bias Repeatabilit :
10°/h
Resolution :
2°/h
Bandwidth :
250Hz
Description
Product Description

The dual-axis gyroscope assembly offers superior performance with an angular rate measurement range of ±500°/s, zero-bias instability as low as 0.05°/h, and random walk of 0.02°/√h. All error compensation processes, including temperature and misalignment corrections, are carried out within the device, ensuring reliable output for attitude control and other precision applications.

With a weight of just 20g and an operating temperature range from -45°C to +85°C, this dual-axis gyroscope assembly combines high accuracy with a compact form factor. It is equipped with advanced error compensation algorithms, including zero-bias and temperature compensation, to ensure precise angular rate measurements even in demanding environments.

Main Technical Parameters
Parameter Unit Test conditions MG2 MG2A MG2B MG2C
XY XZ YZ XZ
Measuring range °/s
±500 ±500 ±500 ±400 ±400 ±300
Zero-bias instability °/h Allan variance 1 1 1 0.1 0.05 0.08
Zero bias stability °/h 1s smooth, RMS, Normal temperature 10 10 10 5 1 3
Zero-bias error at full temperature °/h 10s smoothing, RMS Temperature change rate 1 ℃/min 20 20 20 10 2 5
Random walk °/√h Allan variance 0.15 0.15 0.15 0.05 0.02 0.03
Zero-bias repeatability °/h Q = 6, normal temperature 10 10 10 5 1 5
Zero-bias acceleration sensitive Degree °/h/g Test at ± 1 g 1 1 1 1 1 1
Resolution °/h
2 2 2 1 0.5 1
Bandwidth Hz
250 250 150 400
Scale factor nonlinearity ppm Normal temperature 300 300 300 300 300 300
Scale factor repeatability ppm Q = 3, normal temperature 300 300 300 300 300 300
Cross coupling % Normal temperature 0.2
1.1.1 Electrical characteristics
Parameter Unit MG2y
Voltage V 5±0.25
Starting current mA 200
Steady-state power consumption W ≤1
Ripple mV 100
1.1.2 Environmental adaptability
Parameter Unit MG2y
Operating temperature ℃ -45~85
Storage temperature ℃ -55~ 105
1.1.3 Other
Parameter Unit MG2y
Weight g ≤20
Start time s <1

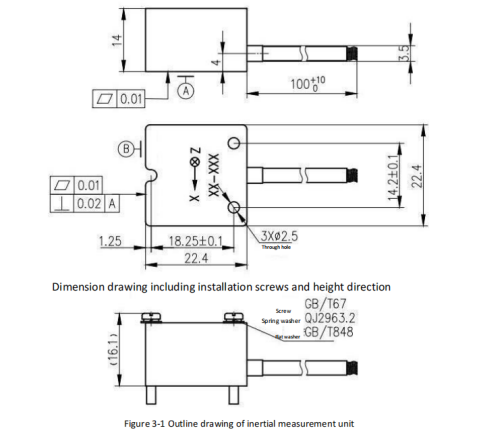

Overall Dimensions
