Specifications
Brand Name :
Firepower
Model Number :
MG3-1A
Certification :
Military standard
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
50/month
Delivery Time :
20 days for sample
Packaging Details :
sponge+ box
Bias Stability :
≤0.3°/h
Random Walk Coefficient :
<0.15°/√h
Zero bias stability :
3°/h
Resolution :
2°/h
Scale factor nonlinearity :
100ppm
Scale factor repeatability :
100ppm
Description

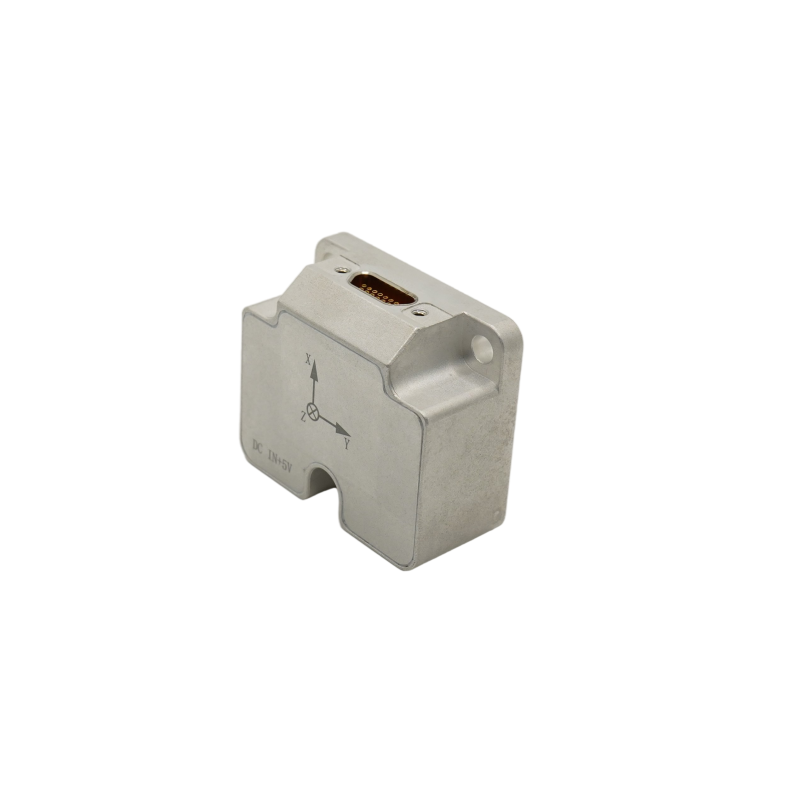

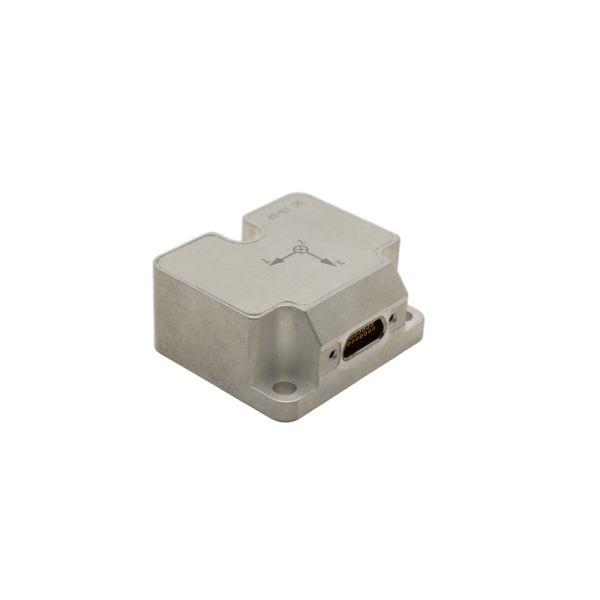

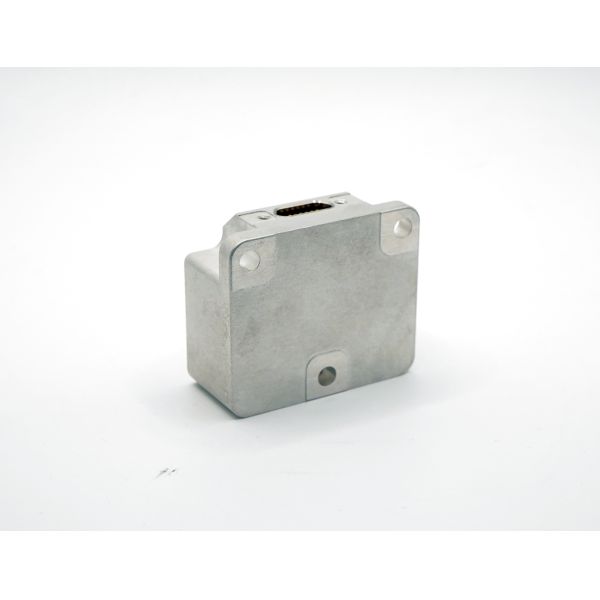

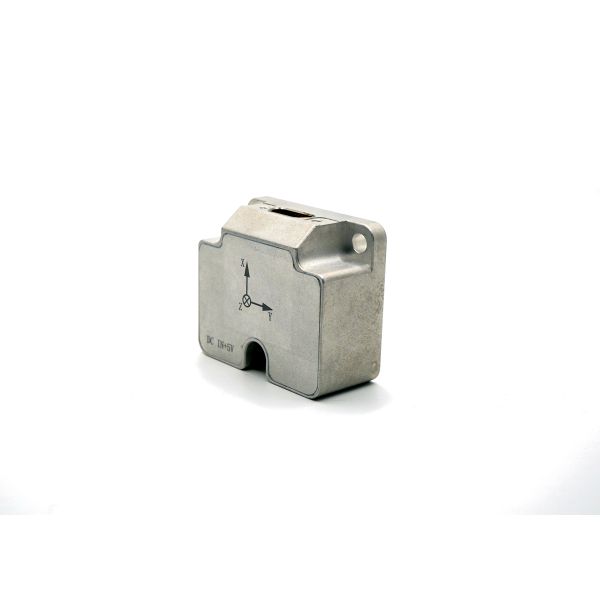

MEMS 3-Axis Gyroscope with Real-Time Angular Rate Output
The MG3-1A MEMS Gyroscope provides accurate and stable 3-axis angular rate measurements for UAVs, autonomous navigation systems, and robotic stabilization.
This integrated solution includes a 3-axis MEMS gyroscope, temperature sensor, signal processing board, structural frame, and dedicated software with RS-422 output and full error compensation (temperature, misalignment, nonlinearity).
Key specifications: ±400°/s range, zero-bias instability 0.3 °/h, random walk 0.15 °/√h, start-up time of 17 seconds, and weight of 52 grams. Ideal for drone navigation, robotic motion control, mapping instruments, and autonomous vehicles.
As a Stim210 replacement, it delivers a drop-in high-performance MEMS gyroscope solution.
Technical Specifications
Gyroscope Performance
Parameter Unit Test Conditions MG3-1A MG3-1C MG3-1E
Measuring range °/s ±400 ±400 ±300
Zero-bias instability °/h Allan variance 0.3 0.1 0.2
Zero bias stability °/h 10s smooth, RMS, Room temperature 3 1 1
Zero bias variation at full temperature °/h 10s smoothing, RMS, temperature change rate 1℃/min 20 10 5
Random walk °/√h Allan variance 0.15 0.05 0.03
Output noise p-p Peak (Half Peak, RMS * 3) 0.3 0.25 0.2
Zero-bias repeatability °/h Q = 6, Room temperature 3 1 0.5
Zero bias acceleration sensitivity Test at ± 1 g 2 2 2
Resolution °/h 2 1 1
Bandwidth Hz 250 250 400
Scale factor nonlinearity ppm Room temperature 100
Scale factor repeatability ppm Q = 3, Room temperature 100
Cross coupling % Room temperature 0.1
Electrical Characteristics
Parameter Unit MG3-1A
Voltage V +5±0.25
Startup current mA ＜400
Steady-state power consumption W ＜1.4
Ripple mV 100
Environmental Adaptability
Parameter Unit MG3-1A
Operating temperature ℃ -45~85
Storage temperature ℃ -55~105
Additional Specifications
Parameter Unit MG3-1A
Weight g 52±5
Start time s 1
Overall Dimensions
MEMS 3-Axis Gyroscope with Real-Time Angular Rate Output
