Specifications
Brand Name :
ZHONGTUO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15 Days
Packaging Details :
Wooden Cases
Power :
7.5kw
Working Pressure :
80MPa
Cylinder :
Single Cylinder,Double Cylinder
Condition :
New
Usage :
Forging Rebar,Steel Bar
Processing Reinforcement Range :
12-40mm
Cylinder Diameter :
220mm
Color :
Red or Costomized
Size :
1250*850*1650mm
HS Code :
8502390000
Description

Single Cylinder 40mm Rebar Upsetting Machine Rebar Threading Machine

Product Description of Threading Machine


The rebar connection upsetting cold forging threading machine is mainly used for the construction of ribbed steel bar rolling straight thread head, it is an important equipment of steel bar connection.

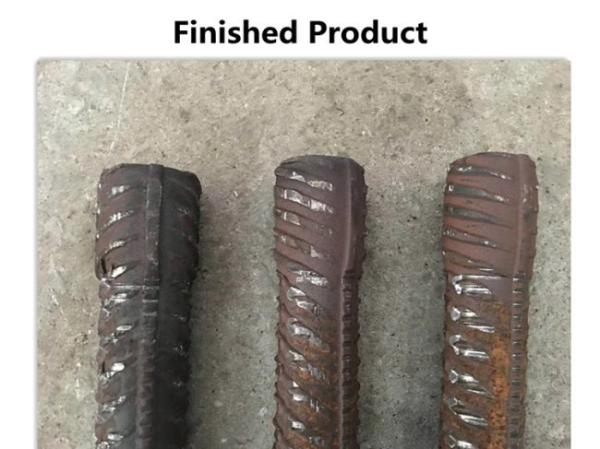

The rebar cold forging upsetting machine uses the cold heading principle to make the steel end for plastic deformation, the diameter increased by 4 ~ 6mm, and then processing thread

Technical Parameters of Threading Machine

Model ZT-40
Upsetting Range 12-40mm
Cylinder Diameter 220mm
Motor Power 7.5kw
Power 380V
Oil Pump Pressure 80Mpa/50HZ
Max. Flow 5.42L/min
Upsetting Length 3-5cm
Increase Size 3-5mm
Work Efficiency 15-20s/pieces
Size 1250×850×1650mm
Weight 800kg

Single Cylinder 40mm Rebar Upsetting Machine 7.5kw Rebar Threading Machine

Features of Threading Machine

1. It can process steel bars with a diameter ranging from 12-40mm.

2. It greatly improves the tensile strength of the joint

3. High efficiency, can produce 300-500 pieces per machine.

4. Environmental protection, safety, economy, and low cost.

Single Cylinder 40mm Rebar Upsetting Machine 7.5kw Rebar Threading Machine

Instructions on the adjustment of the machine

1. Before processing, select the appropriate mold according to the diameter of the steel bar to be processed.

2. Replacing the mold: first remove the travel limit bracket, press the back button of the oil cylinder to the starting position, press the upward button of the oil cylinder to make the lower pressure cylinder rise to the starting position, remove the screws at both ends of the upper mold, The upper mold can be taken out in the middle, then the lower mold can be removed, and the end pressing plate can be taken out, the lower mold can be taken out in the middle, and the mold with the same diameter as the rebar can be installed according to the reverse operation of the above operation. Observe whether the upper mold runs flexibly, if not, remove the sliding surface for grinding.
Single Cylinder 40mm Rebar Upsetting Machine 7.5kw Rebar Threading Machine

Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
