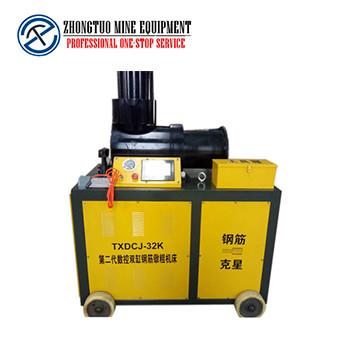

380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine
Specifications
Brand Name :
ZHONGTUO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15 Days
Packaging Details :
Wooden Cases
Power :
7.5kw
Working Pressure :
80MPa
Cylinder :
Single Cylinder,Double Cylinder
Condition :
New
Usage :
Forging Rebar,Steel Bar
Processing Reinforcement Range :
12-40mm
Cylinder Diameter :
220mm
Color :
Red or Costomized
Size :
1250*850*1650mm
HS Code :
8502390000
Description

Rebar Processing Machine Rebar Cold Forging Machine

Product Description of Threading Machine


The rebar connection upsetting cold forging threading machine is mainly used for the construction of ribbed steel bar rolling straight thread head, it is an important equipment of steel bar connection.

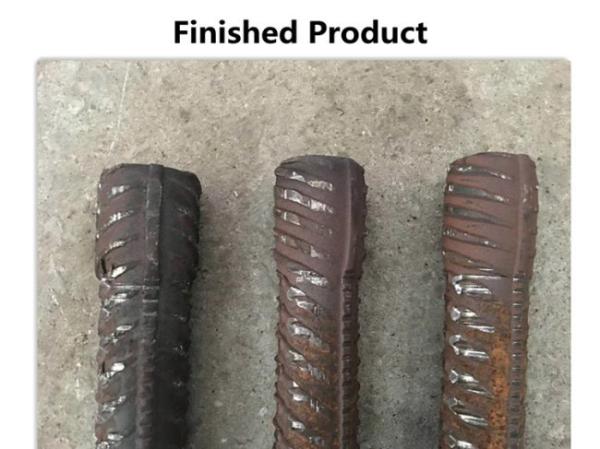

The rebar cold forging upsetting machine uses the cold heading principle to make the steel end for plastic deformation, the diameter increased by 4 ~ 6mm, and then processing thread

Technical Parameters of Threading Machine

Model ZT-40
Upsetting Range 12-40mm
Cylinder Diameter 220mm
Motor Power 7.5kw
Power 380V
Oil Pump Pressure 80Mpa/50HZ
Max. Flow 5.42L/min
Upsetting Length 3-5cm
Increase Size 3-5mm
Work Efficiency 15-20 s/pieces
Size 1250×850×1650mm
Weight 800kg

380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine

Features of Threading Machine

1. It can process steel bars with a diameter ranging from 12-40mm.

2. It greatly improves the tensile strength of the joint

3. High efficiency, can produce 300-500 pieces per machine.

4. Environmental protection, safety, economy, and low cost.

380V 50HZ Rebar Processing Machine 80MPa Rebar Cold Forging Machine

Application of Threading Machine

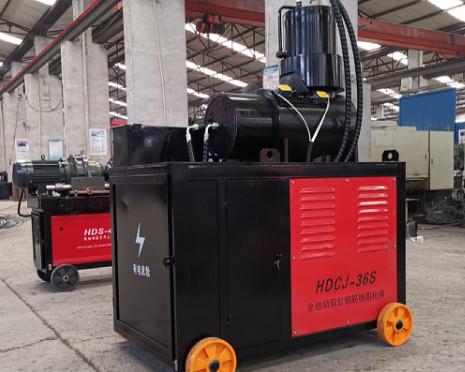

LTDC-36 automatic double-cylinder steel bar roughing machine is to use high pressure to plastically deform the head of the steel bar by cold pressing, increase the diameter, and then process the thread, so that the effective cross-section of the machined thread is higher than the base material of the steel bar, so as to improve the quality of the joint. The compressive and tensile strength of the joint is greater than that of the base material. This machine tool is suitable for the connection of steel bars in bridges, subways, etc.

Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
