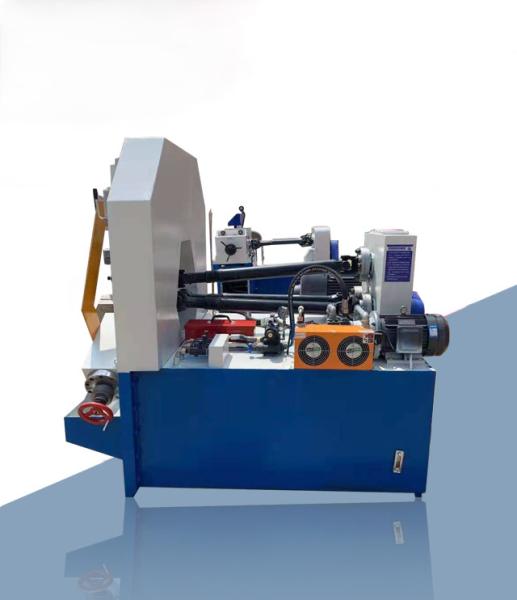

Features of Hydraulic Three-axis Thread Rolling Machine

Features: This model remembers three hydraulic cylinders, which are reasonable and firm, with large power, high precision thread processing, convenient adjustment, frequency conversion speed regulation, wide application range, and can roll various threads, ordinary threads, T-shaped threads, mesh grain, straight grain, special-shaped thread, central control anchor rod, hollow jacking, and can also perform operations such as forming and calendering on the workpiece.

Description of Hydraulic Three-axis Thread Rolling Machine

The thread rolling machine is a multi-functional cold extrusion-forming machine tool. The thread rolling machine can process the thread, straight grain, and oblique grain rolling of the workpiece under the cold state within its rolling pressure range; straight teeth, helical teeth, and helical spline gears rolling; straightening, reducing, rolling, and various forming rolling. The machine has a safe and reliable electric-hydraulic execution and control system, which allows each working cycle to be selected from three modes: manual, semi-automatic, and automatic.

Technical Parameter

The reason and inspection of the thread rolling machine not starting

1. Empty open, reversing always stop at closed; power supply phase loss;
2. The thermal protector plays a protective role, and the insurance burns out;
3. The wiring has come off and the transformer has burned out.
4. Check whether the control circuit contacts are damaged or poorly connected；
5. Check the stop and start button, whether it is disconnected or loose; whether the contact of the button is good;
6. Check whether the limit contacts on the front of the equipment are in good condition and whether the contacts, wires, and insurance are damaged (input and output insurance of the transformer).
