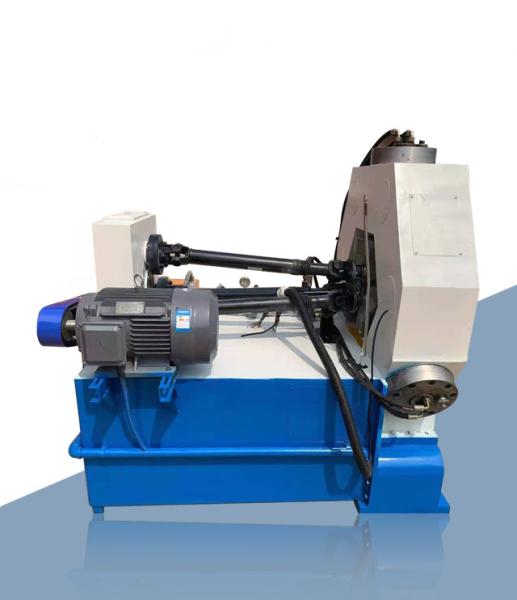

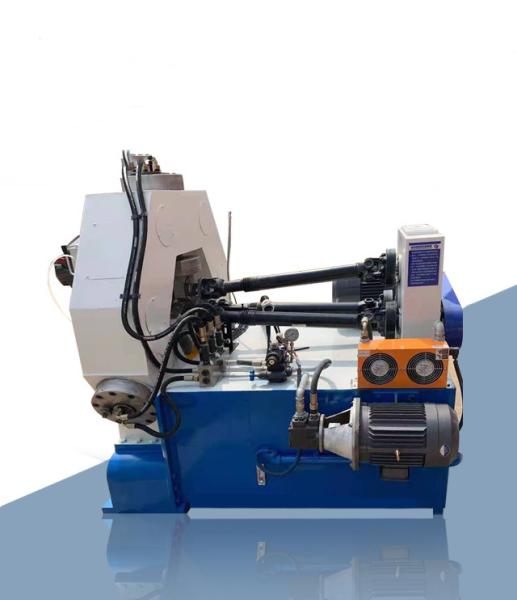

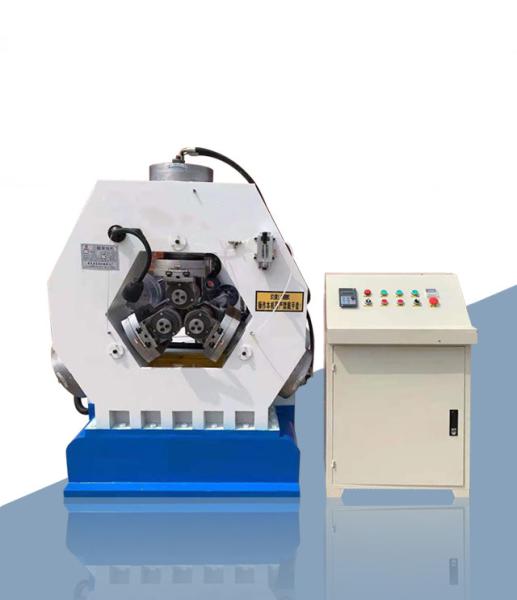

ZT125 Hydraulic Three-Axis Thread Rolling Machine
ZT125 Hydraulic Three-Axis Thread Rolling Machine
ZT125 Hydraulic Three-Axis Thread Rolling Machine
ZT125 Hydraulic Three-Axis Thread Rolling Machine
ZT125 Hydraulic Three-Axis Thread Rolling Machine
ZT125 Hydraulic Three-Axis Thread Rolling Machine
Specifications
Brand Name :
ZHONGTUO
Model Number :
ZT125
Certification :
CE; ISO
Place of Origin :
Shaanxi
MOQ :
1PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15Days
Packaging Details :
Wooden Case
Condition :
New
Color :
Blue、white
Warranty :
1 Year
Application :
building machine
Power :
15kw
Dimension(long * breadth * high) :
2000×1500×1700mm
Weight :
3500kg
Brand :
ZHONGTUO
Description

Description of Hydraulic Three-axis Thread Rolling Machine

The thread rolling machine is a multi-functional cold extrusion-forming machine tool. The thread rolling machine can process the thread, straight grain, and oblique grain rolling of the workpiece under the cold state within its rolling pressure range; straight teeth, helical teeth, and helical spline gears rolling; straightening, reducing, rolling, and various forming rolling. The machine has a safe and reliable electric-hydraulic execution and control system, which allows each working cycle to be selected from three modes: manual, semi-automatic, and automatic.

Features of Hydraulic Three-axis Thread Rolling Machine

Casting structure, three hydraulic cylinders are designed inside the fuselage, reasonable and strong, with large power, high precision thread processing, convenient adjustment, frequency conversion speed regulation, wide application range, can roll various threads, ordinary threads, T-shaped Screw thread, net pattern, straight pattern, special-shaped thread, hollow anchor rod, hollow jacking, and hydraulic processing such as forming and calendering of the workpiece can also be performed.

Technical Parameter

Item Parameter
Model ZP125

Processing Diameter

　

 Ø25-120mm
Main drive motor 15kw Rolling pitch 1-16mm
Hydraulic motor station 5.5kw-4 Speed 0-50r/min
Roller Diameter Ø125-Ø180mm Unit quality 3500kg
Dimensions 2000×1500×1700mm

ZT125 Hydraulic Three-Axis Thread Rolling Machine

The solution to rolling out or messy silk
1. The direction of rotation of the rolling head is incorrect;

the specification of the rolling head is inconsistent with the steel bar；
2. The order of the positioning sleeve is incorrect;

3. Whether the order of the rolling heads is installed correctly;
4. The roller and the positioning sleeve are damaged;
