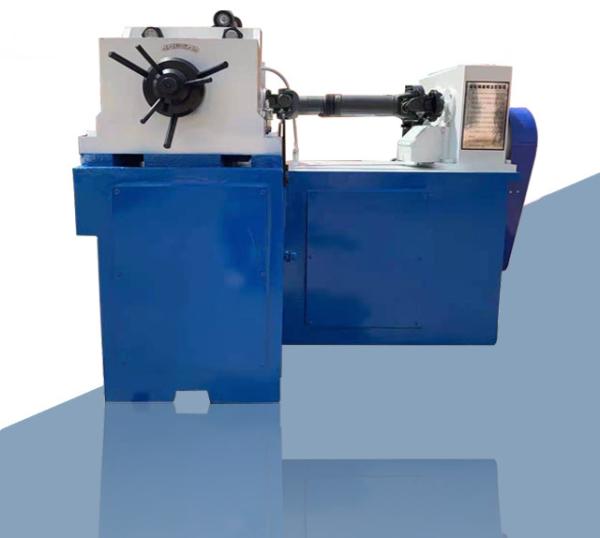

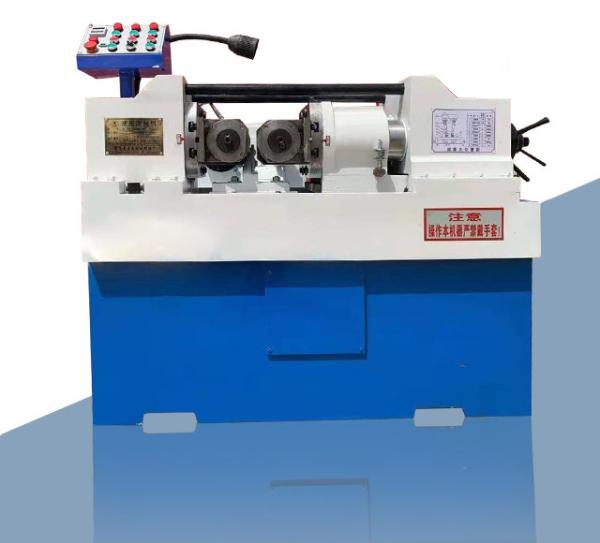

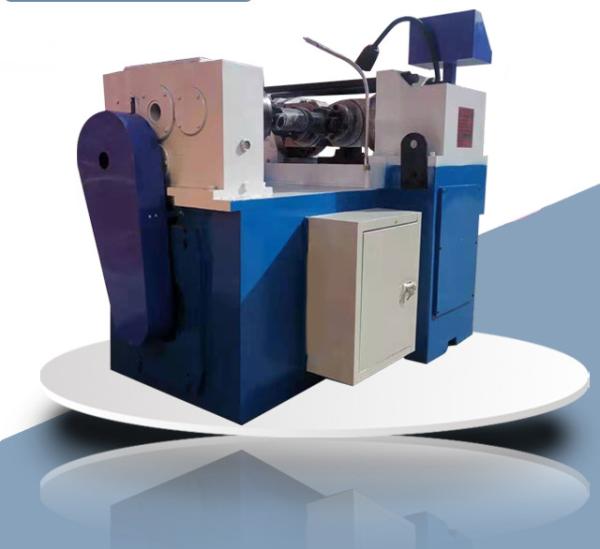

Features of Automatic Hydraulic Thread Rolling Machine

It is mainly used for processing various high-strength and precision workpiece threads, including ordinary threads, trapezoidal threads, modulus threads, through-wire threads, etc. It has the characteristics of reasonable design, strong processing capacity, and high efficiency.

Description of Hydraulic Automatic Hydraulic Thread Rolling Machine

The thread rolling machine is a multi-functional cold extrusion-forming machine tool. The thread rolling machine can process the thread, straight grain, and oblique grain rolling of the workpiece under the cold state within its rolling pressure range; straight teeth, helical teeth, and helical spline gears rolling; straightening, reducing, rolling, and various forming rolling. The machine has a safe and reliable electric-hydraulic execution and control system, which allows each working cycle to be selected from three modes: manual, semi-automatic, and automatic.
The thread rolling cold rolling process is an advanced non-cutting process, which can effectively improve the internal and surface quality of the workpiece. The radial compressive stress generated during processing can significantly improve the fatigue strength and torsional strength of the workpiece. It is an efficient, energy-saving, low-consumption ideal process.

Technical Parameter

Common problems and solutions of thread rolling machine

1. The order of changing the inner gasket of the thread rolling wheel: clockwise: thick, medium, and thin, and outer gasket, thin and medium;
2. Fine-tune the size: After loosening the six inner angle screws (or three outer hexagonal screws) behind the rolling wheel head, use an adjustable wrench to fine-tune the size;
3. The length of wire adjustment: adjust the stopper distance on the double-stroke switch;
4. Adjust the length of the leather: adjust and install the square seat on the retracting shaft;
5. Car anti-wire
(1) The gaskets in the thread rolling wheel are installed in reverse order
(2) Push button switch up
(3) Turn on the machine and peel the skin counterclockwise, press the button switch on the back button to roll the thread clockwise, and then return the thread counterclockwise
