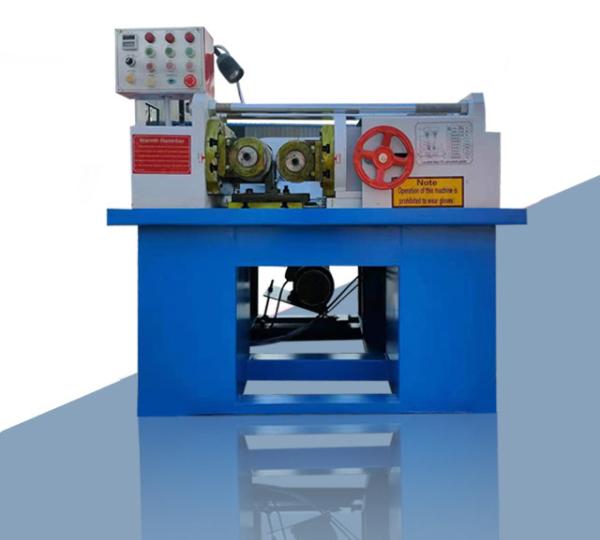

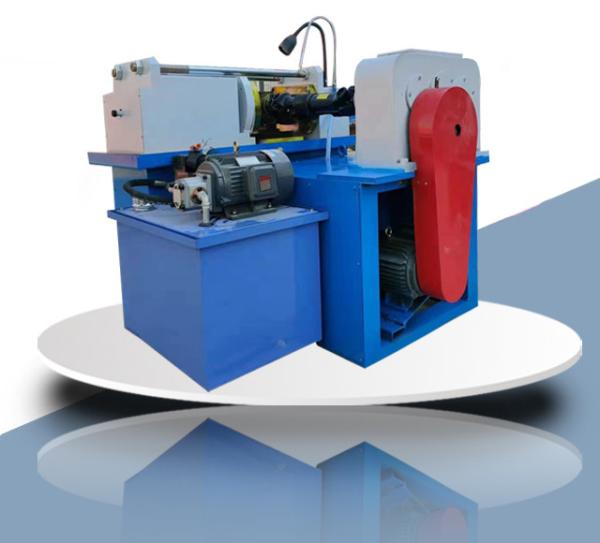

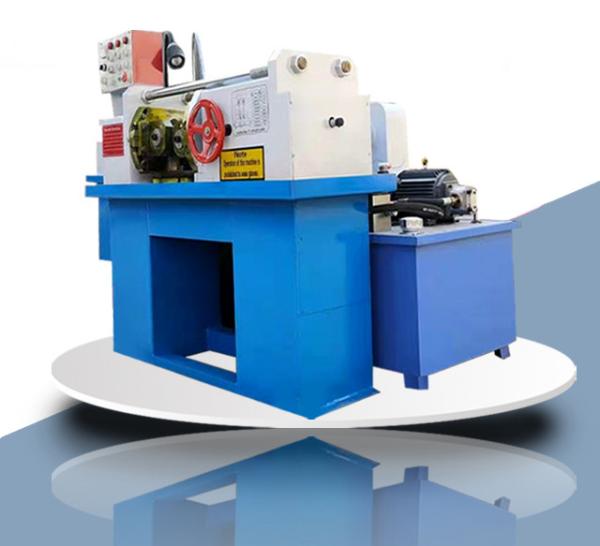

Features of Thread Rolling Machine Steel Stainless Steel

It is suitable for radial and axial processing of various threads below 36. It can be used as bolts or threaded rods (threads). It is equipped with time control, high efficiency, reasonable structure, and easy operation.

Wear & Refurbishment of Thread Rolling Machine Steel Stainless Steel

The rolling wheels must be adjusted synchronously, that is, to adjust the coincidence of the indentations of the L and R wheels on the surface of the workpiece. If the synchronous adjustment is inaccurate, the workpiece will have chaotic teeth, chips, and out-of-tolerance conditions. The center height of the workpiece is consistent with the center height of the rolling wheel (allowing a lower 0.01-0.08mm). The commonly used adjustment methods are:
After the rolling wheel is worn out, the teeth can be ground off to reduce the number of teeth, and the parameters can be calculated again according to the above process, and the teeth can be re-cut to produce a refurbished rolling wheel, which can be refurbished multiple times within the allowable range of the center distance of the machine tool.

Technical Parameter of Thread Rolling Machine Steel Stainless Steel

Common problems and solutions of thread rolling machine

1. The order of changing the inner gasket of the thread rolling wheel: clockwise: thick, medium, and thin, and outer gasket, thin and medium;
2. Fine-tune the size: After loosening the six inner angle screws (or three outer hexagonal screws) behind the rolling wheel head, use an adjustable wrench to fine-tune the size;
3. The length of wire adjustment: adjust the stopper distance on the double-stroke switch;
4. Adjust the length of the leather: adjust and install the square seat on the retracting shaft;
5. Car anti-wire
(1) The gaskets in the thread rolling wheel are installed in reverse order
(2) Push button switch up
(3) Turn on the machine and peel the skin counterclockwise, press the button switch on the back button to roll the thread clockwise, and then return the thread counterclockwise
