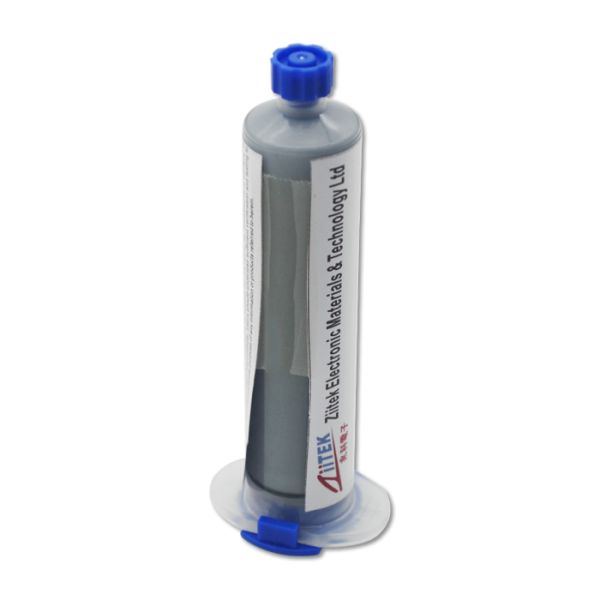

TIF030-10 Soft Silicone Based Thermal Conductive Gel With High Viscosity And 3.0W/MK Thermal Conductivity Designed For Heat Dissipation In Telecom
TIF030-10 Soft Silicone Based Thermal Conductive Gel With High Viscosity And 3.0W/MK Thermal Conductivity Designed For Heat Dissipation In Telecom
TIF030-10 Soft Silicone Based Thermal Conductive Gel With High Viscosity And 3.0W/MK Thermal Conductivity Designed For Heat Dissipation In Telecom
TIF030-10 Soft Silicone Based Thermal Conductive Gel With High Viscosity And 3.0W/MK Thermal Conductivity Designed For Heat Dissipation In Telecom
Specifications
Keywords :
Thermal conductive gel
Supply Ability :
1000000 tube/month
Materail :
Ceramic Filled Silicon Material
Model Number :
TIF030-10
Density :
2.9 g/cm³
MOQ :
1000tube
Delivery Time :
3-5 work days
Recommended Operating Temperature (℃) :
-40~200℃
Payment Terms :
T/T
Thermal conductivity :
3.0W/mK
Price :
0.1-10 USD/PCS
Color :
Gray
Certification :
RoHS
Products name :
Soft Silicone Based Thermal Conductive Gel With High Viscosity And 3.0W/MK Thermal Conductivity Designed For Heat Dissipation In Telecom
Brand Name :
Ziitek
Application :
For Heat Dissipation In Telecom
Place of Origin :
Vietnam
Packaging Details :
300cc/tube
Description

Soft Silicone Based Thermal Conductive Gel With High Viscosity And 3.0W/MK Thermal Conductivity Designed For Heat Dissipation In Telecom

Products description

TIF®030-10 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both high thermal conductivity and superior softness. Compared to conventional thermal greases, it has a higher viscosity,which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment.

Feature

> High Thermal conductivity
> Soft,very low compression
> Low thermal impedance
> Suitable for automated operation in dispensing systems
> Proven long-term reliability

Application

> Heat-sink & frame
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe radiator
> Vihicel enginee controller
> Communication hardware
> Semiconductor automatic laboratory equipment

Typical Propertes of TIF®030-10
Property Value Test method
Color Gray Visual
Construction Ceramic filled silicon material -
Flow Rate(g/min) 12 Ziitek Test Methbod
(30cc syringe/ 2.5mm or rifice/90 psi)
Density(g/cm³) 2.9 ASTM D792
Thermal conductivity(W/mK) 3.0 ASTM D5470
Thermal impedance(℃-in²/W)@10psi 0.11 ASTM D5470
Thermal impedance(℃-in²/W)@50psi 0.10 ASTM D5470
Recommended Operating Temperature -40~200℃ -
Breakdown Strength(V/mm) ≥4000 ASTM D149
Volume Resistivity (Ohm·cm) ＞1.0x1011 ASTM D257
Bond line Thickness (mm) 0.10 -
Flame Rating V-0 UL 94
Oil Separation (%) @ 150°C,
24 hrs		 ＜0.03 -
Volatility Loss (%) @150°C,
24 hrs		 ＜0.2 -

Product Specifications

30cc/pcs, 50cc/pcs, 300 cc/pc

For more information about thermal conductive materials, please contact our company.

TIF030-10 Soft Silicone Based Thermal Conductive Gel With High Viscosity And 3.0W/MK Thermal Conductivity Designed For Heat Dissipation In Telecom

Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Independent R&D team
