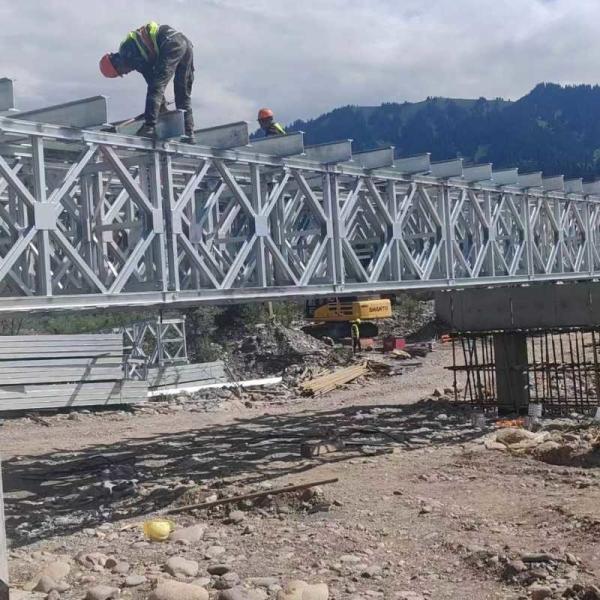

Customized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35m
Customized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35m
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
OEM :
Specialized
Durable :
Yes
Structure Type :
Steel Truss Bridge
Lane :
Single lane 4.2m，Double Lane 7.35m
Net Width :
3.15m,3.6m,4.2m,7.35m,10.5m
Grade :
Q355B
Color :
According to detailed order
Product Capability :
60000 Pieces Per Year
Standard :
ASTM,GB,BS,BV
Description

Steel Bridge/customized Steel Structure Bridge


The products of Jiangsu Zhonghai Bridge Equipment Co., Ltd. are renowned for their high quality and innovative design. The company specializes in manufacturing Bailey bridges, including the 200-type and 321-type, which are known for their durability, ease of assembly, and adaptability to various terrains. These bridges are designed to withstand harsh environments and heavy loads, ensuring long-term reliability. Additionally, the company offers customized bridge solutions tailored to specific client needs, further enhancing the versatility and applicability of its products.



​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
Customized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35mCustomized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35mCustomized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35mCustomized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35m

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
Customized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35mCustomized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35mCustomized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35mCustomized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35m

​​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
Customized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35mCustomized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35mCustomized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35mCustomized Steel Truss Bridge Single Lane 4.2m Double Lane 7.35m

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
