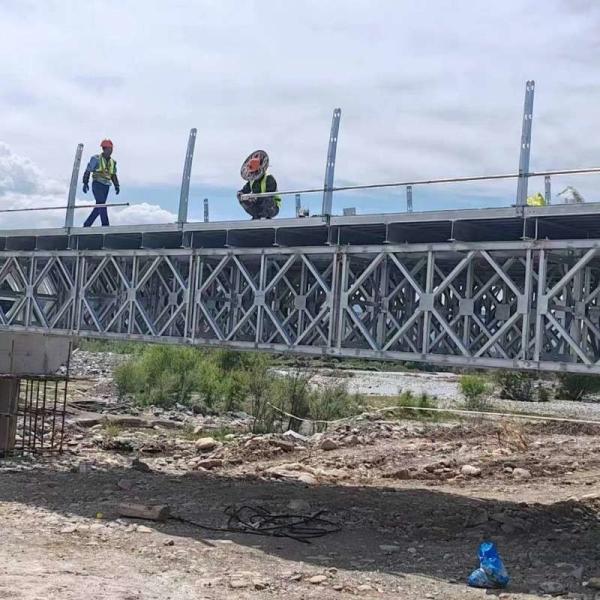

Compact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular Design
Compact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular Design
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Modular Design :
Yes
Design Life :
50-100 years
Origin :
China
Dimensions :
Standard
Modular :
Bailey Truss
Structure Type :
compact panel bridge
Reliability :
High Structural Reliability
Product Capability :
60000 Pieces Per Year
Standard :
ASTM,GB,BS,BV
Grade :
Q355B
Description

Permanent Assembly Steel Truss Bridge/prefabricated Steel Truss Bridge


Jiangsu Zhonghai Bridge Equipment Co., Ltd. is a leading modern enterprise specializing in the design, manufacture, and installation of bridge equipment. Established in 2014, the company is located in the Dantu High-tech Park of Zhenjiang City, Jiangsu Province. With a registered capital of 55 million yuan, it has an annual production capacity of over 60,000 tons. The company is committed to technological innovation and quality excellence, having obtained ISO9001:2015 certification and multiple patents. Its core product, the Bailey bridge, is widely used in infrastructure construction, emergency response, and defense projects. The company also exports its products to over 20 countries, adhering to international standards such as American and European specifications.




​Specifications:

​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
Compact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular DesignCompact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular DesignCompact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular DesignCompact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular Design

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
Compact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular DesignCompact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular DesignCompact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular DesignCompact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular Design

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
Compact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular DesignCompact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular DesignCompact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular DesignCompact Panel Permanent Assembly Prefabricated Steel Truss Bridge Modular Design

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
