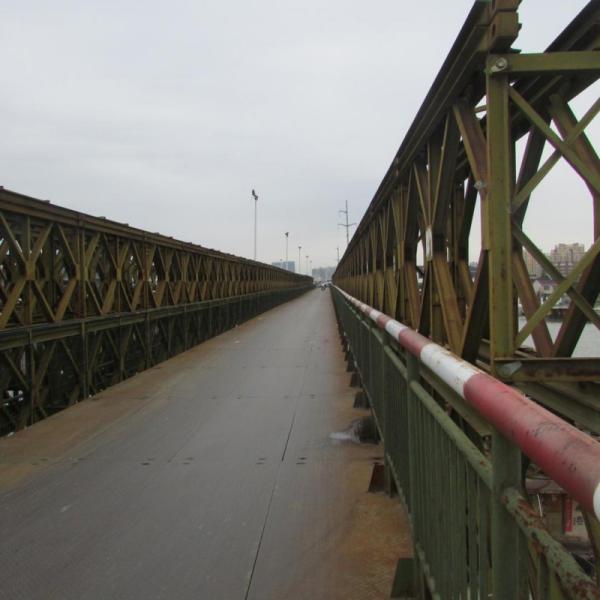

Modular Small Steel Truss Bridge Hot Dip Galvanized Steel Bridge
Modular Small Steel Truss Bridge Hot Dip Galvanized Steel Bridge
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Grade :
Q355B
Corrosion Resistance :
High
Reliability :
High Structural Reliability
Material :
Steel
Usage :
Bridge
Stiffness :
Modular Bridge Construction
Related :
Callender-Hamilton bridge
Product Capability :
60000 Pieces Per Year
Standard :
ASTM,GB,BS,BV
Description

Small Steel Bridges Manufacture/hot-dip Galvanized Steel Bridge


At Jiangsu Zhonghai Bridge Equipment Co., Ltd., we prioritize the highest quality standards for our exported steel products. All our steel materials undergo rigorous testing by internationally recognized institutions such as SGS and TÜV. These tests ensure full compliance with American and European standards, providing our customers with confidence in the reliability and safety of our products. Additionally, our main welds have undergone ultrasonic testing to meet welding standards, further enhancing the quality and durability of our bridge equipment.


Specifications:

​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
Modular Small Steel Truss Bridge Hot Dip Galvanized Steel BridgeModular Small Steel Truss Bridge Hot Dip Galvanized Steel BridgeModular Small Steel Truss Bridge Hot Dip Galvanized Steel BridgeModular Small Steel Truss Bridge Hot Dip Galvanized Steel Bridge

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
Modular Small Steel Truss Bridge Hot Dip Galvanized Steel BridgeModular Small Steel Truss Bridge Hot Dip Galvanized Steel BridgeModular Small Steel Truss Bridge Hot Dip Galvanized Steel BridgeModular Small Steel Truss Bridge Hot Dip Galvanized Steel Bridge

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
Modular Small Steel Truss Bridge Hot Dip Galvanized Steel BridgeModular Small Steel Truss Bridge Hot Dip Galvanized Steel BridgeModular Small Steel Truss Bridge Hot Dip Galvanized Steel BridgeModular Small Steel Truss Bridge Hot Dip Galvanized Steel Bridge

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity



Modular Small Steel Truss Bridge Hot Dip Galvanized Steel Bridge
