High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235
High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Design Life :
50-100 years
OEM :
Specialized
Structure :
Truss bridge
Weather resistance :
Good
Name :
Bailey Bridge
Deck :
steel deck / timber deck
Secondary Steel :
Q235
Lane :
Single lane 4.2m，Double Lane 7.35m
Standard :
ASTM,GB,BS,BV
Product Capability :
60000 Pieces Per Year
Grade :
Q355B
Description

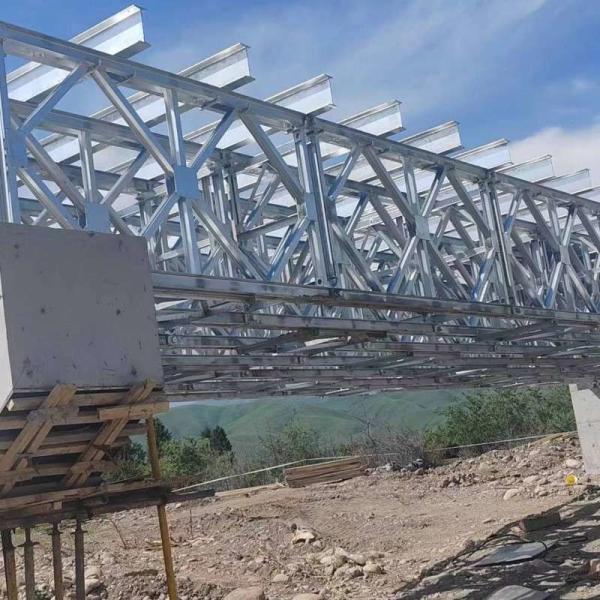

Steel Frame Bridge With High Strength/permanent Steel Truss Bridge


Jiangsu Zhonghai Bridge Equipment Co., Ltd. specializes in the production and supply of high-quality bridge equipment. Our main products include various types of Bailey bridges, such as the 200-type and 321-type Bailey bridges, which are widely used in infrastructure construction, emergency response, and defense projects. These bridges are designed to meet international standards, including American and European specifications, and have undergone rigorous testing by institutions like SGS. In addition to Bailey bridges, we also offer prefabricated highway steel bridges, pedestrian bridges, and customized bridge solutions. Our products are exported to numerous countries, demonstrating our commitment to providing reliable and durable bridge solutions globally.


​Specifications:

​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235High Strength Permanent Steel Truss Bridge Steel Frame Bridge Q235

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
