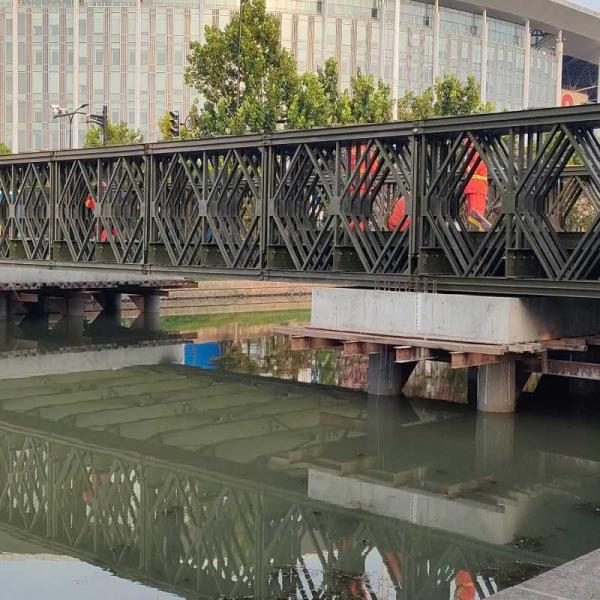

GB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian Bridge
GB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian Bridge
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Product Capability :
60000 Pieces Per Year
Grade :
Q355B
Main Steel :
GB Q345B
Bolts Grade :
8.8
Surface :
Galvanized
Surface Protection :
hot-dip galvanized
Secondary Steel :
GB Q235
Usage :
Temporary or Permanent Bridge
Application :
Emergency Bridges
Standard :
ASTM,GB,BS,BV
Description

Temporary Steel Bridge For Sale/steel Bridge For Sale


Jiangsu Zhonghai Bridge Equipment Co., Ltd. stands out as a leading provider of high-quality bridge equipment, offering several key advantages. Our company is renowned for its commitment to technological innovation, having achieved breakthroughs such as fully automatic welding, which enhances production efficiency and ensures consistent product quality. We prioritize quality control, with our products undergoing rigorous testing by international institutions like SGS and TÜV to meet American and European standards. Our extensive R&D efforts have resulted in numerous patents, further solidifying our position as an industry innovator. Additionally, we provide comprehensive after-sales service, including technical support and maintenance guidance, ensuring customer satisfaction. With a strong focus on both quality and innovation, Jiangsu Zhonghai Bridge Equipment Co., Ltd. is well-positioned to meet the diverse needs of our global clients.


Specifications:

​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
GB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian BridgeGB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian BridgeGB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian BridgeGB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian Bridge

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
GB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian BridgeGB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian BridgeGB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian BridgeGB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian Bridge

​​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
GB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian BridgeGB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian BridgeGB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian BridgeGB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian Bridge

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
