ISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B Grade
ISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B Grade
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Design Life :
50-100 years
Qualification :
ISO or Similar
Material :
Steel
Modular Panel Length :
3m,3.048m
Panel Height :
1.5m ,2.134m
Anti-Corrosion Coating :
Yes
Product Capability :
60000 Pieces Per Year
Standard :
ASTM,GB,BS,BV
Grade :
Q355B
Description

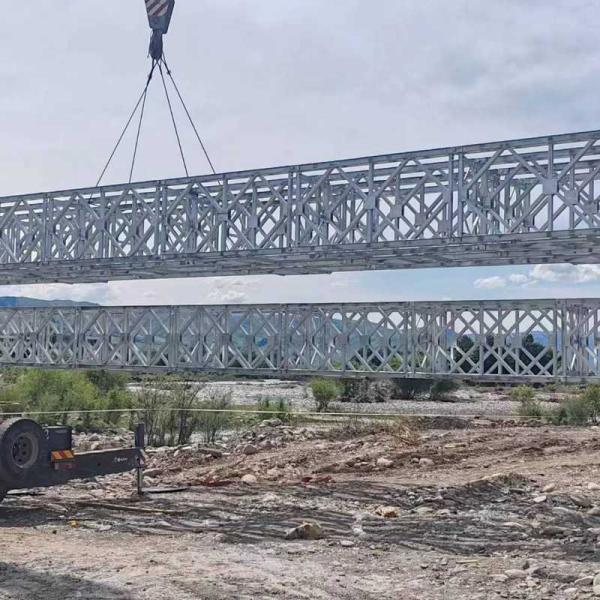

Portable Steel Bridge Maker/portable Steel Bridge


The lifespan of Bailey bridges produced by Jiangsu Zhonghai Bridge Equipment Co., Ltd. can vary depending on factors such as construction quality, environmental conditions, and maintenance practices. However, with proper care and maintenance, these bridges typically have a lifespan of 20 to 50 years. In some cases, well-maintained bridges can last even longer, with certain Bailey bridges remaining in service for up to 70 years.

Regular maintenance, including inspections, timely repairs, and the application of protective coatings, is crucial to extending the lifespan of these bridges. Additionally, the use of high-quality materials and advanced manufacturing techniques, such as hot-dip galvanization and robotic welding, further enhances durability and corrosion resistance.



​Specifications:

​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
ISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B GradeISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B GradeISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B GradeISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B Grade

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
ISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B GradeISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B GradeISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B GradeISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B Grade

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
ISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B GradeISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B GradeISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B GradeISO9001 Prefabricated Steel Pedestrian Bridges Portable Steel Bridge Q355B Grade

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
