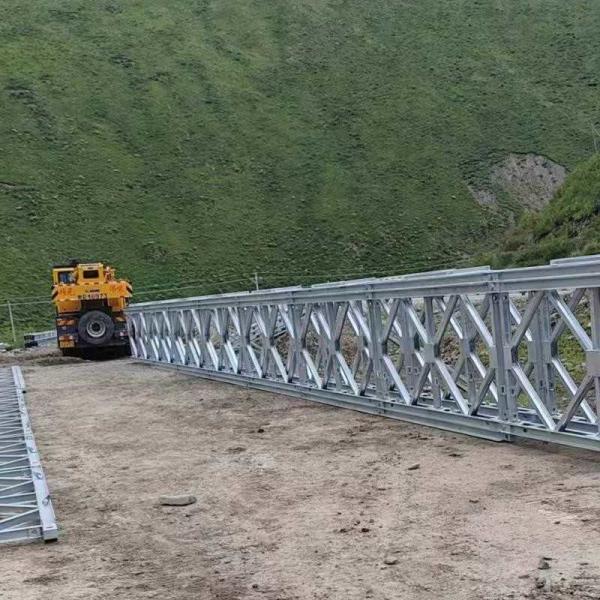

Steel Prefabricated Bridge/reinforced Steel Structure Bridge

Hot-dip galvanized Bailey bridges, such as those produced by Jiangsu Zhonghai Bridge Equipment Co., Ltd., generally require minimal maintenance due to the long-lasting corrosion protection provided by the galvanizing process. However, some key maintenance practices are recommended to ensure their longevity and performance:

1. **Regular Inspections**:

Periodic visual inspections are essential to identify any signs of damage, corrosion, or wear. This includes checking the integrity of the galvanized coating, welds, and connections.

2. **Cleaning**:

While hot-dip galvanizing provides excellent protection against corrosion, it is still important to keep the bridge free from debris, dirt, and organic growth. Regular cleaning can help prevent localized corrosion.

3. **Repair of Coating Damage**:

If the galvanized coating is damaged during installation or due to impact, it should be repaired promptly. This can be done using thermal spraying or other approved methods to prevent localized corrosion.

4. **Attention to Joints and Connections**:

Welded joints and connections should be carefully monitored. Any signs of corrosion or damage should be addressed immediately, as these areas can be more susceptible to wear.

5. **Environmental Considerations**:

In environments with high exposure to de-icing salts or corrosive substances, additional measures such as thicker galvanized coatings (over 250μm) may be necessary to ensure long-term protection.

By following these maintenance practices, hot-dip galvanized Bailey bridges can achieve a maintenance-free service life of up to 100 years, significantly reducing economic costs associated with traffic disruptions and recurring maintenance.

Specifications:

​

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

​​

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

​

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
