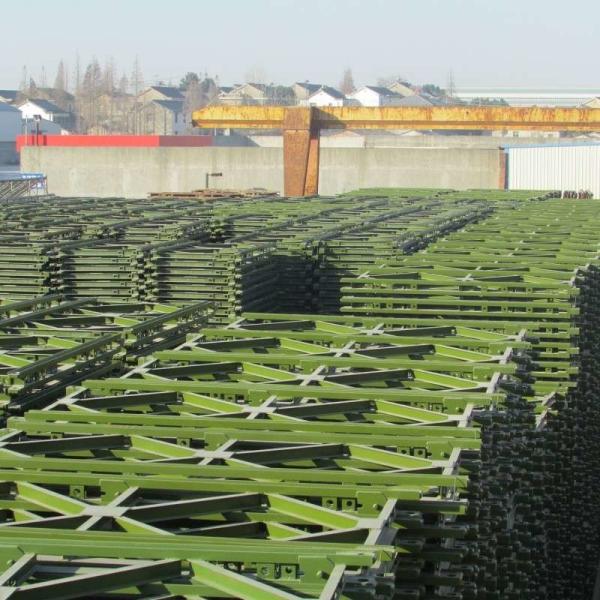

Prefabricated Steel Bailey Truss Bridge Q355B Galvanized Surface
Prefabricated Steel Bailey Truss Bridge Q355B Galvanized Surface
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Grade :
Q355B
Structure Type :
Steel Truss Bridge
Deck :
steel deck / timber deck
Reusable :
Yes
Surface :
Galvanized
Modular Design :
Yes
Color :
Green, Grey, Orange,Red
Product Capability :
60000 Pieces Per Year
Standard :
ASTM,GB,BS,BV
Description

High Quality Structural Steel Prefabricated Bridge/steel Truss Bailey Bridge


Mechanical processing and welding offer numerous benefits that are crucial in modern manufacturing. Welding allows for the creation of strong, durable joints, ensuring the structural integrity of components and products. It enables the fabrication of complex shapes and structures that would be impossible to achieve through other means. Mechanical processing, on the other hand, enhances precision and consistency. It allows for the accurate shaping and finishing of parts, ensuring they meet tight tolerances and high-quality standards. Together, these processes improve efficiency, reduce material waste, and enable the production of high-quality products across various industries. They are essential for creating everything from small precision components to large-scale structures, driving innovation and reliability in manufacturing.


Specifications:

​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
Prefabricated Steel Bailey Truss Bridge Q355B Galvanized SurfacePrefabricated Steel Bailey Truss Bridge Q355B Galvanized SurfacePrefabricated Steel Bailey Truss Bridge Q355B Galvanized SurfacePrefabricated Steel Bailey Truss Bridge Q355B Galvanized Surface

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
Prefabricated Steel Bailey Truss Bridge Q355B Galvanized SurfacePrefabricated Steel Bailey Truss Bridge Q355B Galvanized SurfacePrefabricated Steel Bailey Truss Bridge Q355B Galvanized SurfacePrefabricated Steel Bailey Truss Bridge Q355B Galvanized Surface

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
Prefabricated Steel Bailey Truss Bridge Q355B Galvanized SurfacePrefabricated Steel Bailey Truss Bridge Q355B Galvanized SurfacePrefabricated Steel Bailey Truss Bridge Q355B Galvanized SurfacePrefabricated Steel Bailey Truss Bridge Q355B Galvanized Surface

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
