Structure Steel Bailey Bridge Manufacture Used Bailey Truss Bridge
Structure Steel Bailey Bridge Manufacture Used Bailey Truss Bridge
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Dimensions :
Standard or Customized
Weather Resistant :
Yes
Main Steel :
Q345B
Corrosion Prevention :
Galvanization Or Painting
Lane :
Single lane 3.15m~4.2m，Double Lane 7.35m
Type :
Truss bridge
Product Capability :
60000 Pieces Per Year
Standard :
ASTM,GB,BS,BV
Grade :
Q355B
Description

Steel Bailey Bridge Manufacture In China/used Bailey Bridges


Using Midas Civil for the analysis and design of Bailey Bridges offers several notable advantages, enhancing both efficiency and accuracy in engineering projects. One of the key benefits is the software's ability to handle complex bridge modeling with ease. Midas Civil allows engineers to create detailed models of Bailey Bridges, incorporating various parameters such as load conditions and material properties, which are critical for accurate analysis.

Another advantage is its advanced computational capabilities, which facilitate dynamic and static analysis of the bridge structure. This feature ensures that engineers can assess the bridge's performance under different loading scenarios, including vehicle loads, environmental factors, and dynamic effects. The precision of these analyses helps ensure safety and compliance with design standards.



Specifications:

​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2

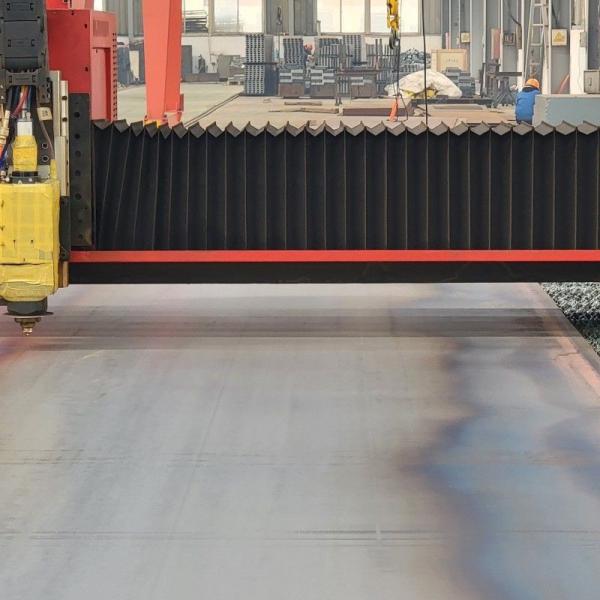

Structure Steel Bailey Bridge Manufacture Used Bailey Truss BridgeStructure Steel Bailey Bridge Manufacture Used Bailey Truss BridgeStructure Steel Bailey Bridge Manufacture Used Bailey Truss BridgeStructure Steel Bailey Bridge Manufacture Used Bailey Truss Bridge

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
Structure Steel Bailey Bridge Manufacture Used Bailey Truss BridgeStructure Steel Bailey Bridge Manufacture Used Bailey Truss BridgeStructure Steel Bailey Bridge Manufacture Used Bailey Truss BridgeStructure Steel Bailey Bridge Manufacture Used Bailey Truss Bridge

​​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
Structure Steel Bailey Bridge Manufacture Used Bailey Truss BridgeStructure Steel Bailey Bridge Manufacture Used Bailey Truss BridgeStructure Steel Bailey Bridge Manufacture Used Bailey Truss BridgeStructure Steel Bailey Bridge Manufacture Used Bailey Truss Bridge

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
