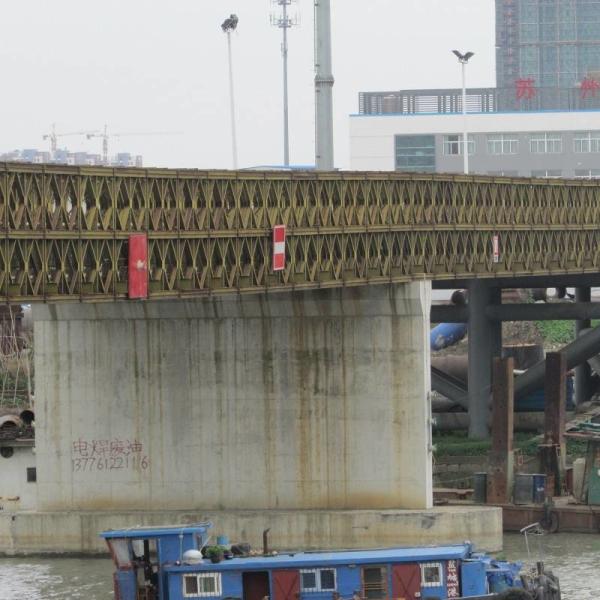

High Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary Steel
High Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary Steel
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Qualification :
ISO or Similar
Surface :
Galvanized
Secondary Steel :
GB Q235
Net Width :
double lane 7.35m
Weather Resistance :
Suitable for all weather conditions
Cost-effective :
Lower cost compared to traditional bridges
Material :
Steel
Product Capability :
60000 Pieces Per Year
Standard :
ASTM,GB,BS,BV
Grade :
Q355B
Description

High Strength Steel Structure Bridge/sell Bailey Truss


Jiangsu Zhonghai Bridge Equipment Co., Ltd. has fully embraced advanced automatic welding technology to enhance its production capabilities. By introducing automatic welding robots, the company has achieved welding precision within 0.3 millimeters, significantly improving product quality and consistency. This technology not only ensures precise and error-free connections but also boosts production efficiency by completing large volumes of welding tasks in a shorter time. The adoption of automatic welding has been a major breakthrough in modern engineering practices, helping the company meet international standards and expand its market globally.


Specifications:

​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
High Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary SteelHigh Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary SteelHigh Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary SteelHigh Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary Steel

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
High Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary SteelHigh Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary SteelHigh Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary SteelHigh Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary Steel

​​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
High Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary SteelHigh Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary SteelHigh Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary SteelHigh Strength Steel Structure Bridge Bailey Truss GB Q235 Secondary Steel

​


Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
