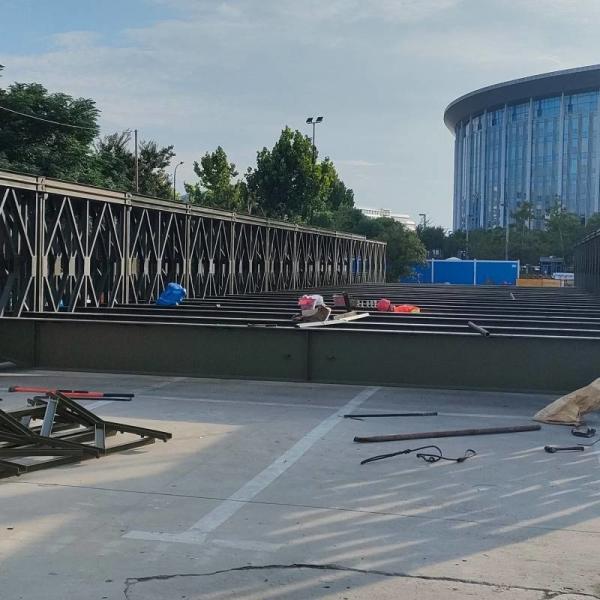

Heavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip Galvanized

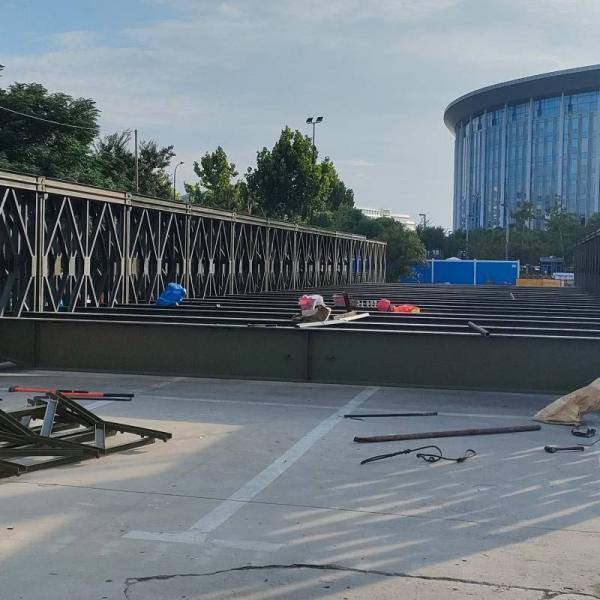

Heavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip Galvanized
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Product Capability :
60000 Pieces Per Year
Grade :
Q355B
Qualification :
ISO or Similar
Application :
Bailey Bridge
Feature :
high bearing, convenience for loading
Structure Type :
CB100 Steel Bridge
Corrosion Prevention :
Hot Dip Galvanized Or Painted
Standard :
ASTM,GB,BS,BV
Description

Heavy Duty Steel Structure Bridge/steel Structure Bridge


At Jiangsu Zhonghai Bridge Equipment Co., Ltd., we ensure the durability of our bridge equipment through a combination of advanced manufacturing techniques, rigorous quality control measures, and adherence to international standards. Our products undergo stringent testing by international institutions such as SGS to meet American and European standards. We employ automatic welding robots to ensure precise connections and high production quality. Additionally, our steel products are tested for compliance with international standards, and our main welds undergo ultrasonic testing to ensure full compliance with welding standards. Our commitment to durability is further demonstrated by our ISO9001:2015 certification and the successful application of numerous patents.


Specifications:

​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
Heavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip GalvanizedHeavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip GalvanizedHeavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip GalvanizedHeavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip Galvanized

​​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
Heavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip GalvanizedHeavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip GalvanizedHeavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip GalvanizedHeavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip Galvanized

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
Heavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip GalvanizedHeavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip GalvanizedHeavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip GalvanizedHeavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip Galvanized

​

​Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity


Heavy Duty Steel Structure Bailey Bridge / Long Truss Bridge Hot Dip Galvanized
