OEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge Truss
OEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge Truss
Specifications
Brand Name :
Zhonghai Bailey Bridge
Model Number :
CB200/CB321
Certification :
IS09001, CE
Place of Origin :
China
MOQ :
1 Pcs
Price :
USD 95-450
Payment Terms :
L/C,D/P,T/T
Supply Ability :
60000ton/year
Delivery Time :
8-10 work days
Packaging Details :
Naked
Standard :
ASTM,GB,BS,BV
Packing :
Packing in Containers or Bulk
OEM :
Specialized
Grade :
Q355B
Panel Size :
3000mm*1400mm
Corrosion Resistance :
High
Suitable For Emergency Situations :
Yes
Deck :
steel deck / timber deck
Description

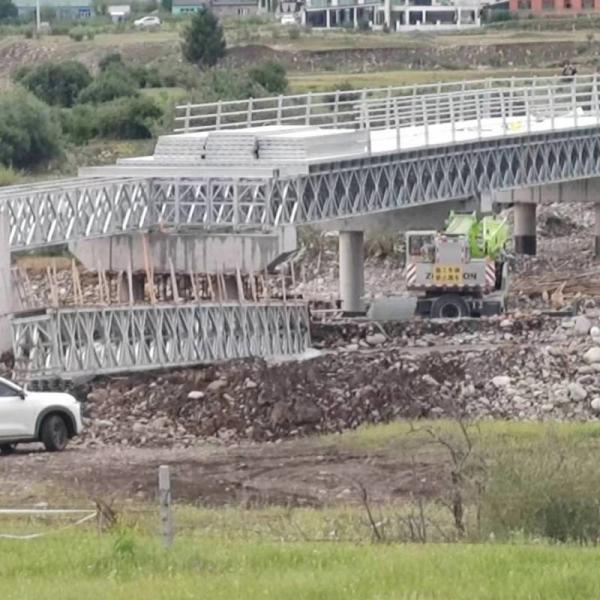

Portable Steel Bridge Maker/steel Structure Trestle Bridge


One notable example of a bridge that utilizes steel's ductility is the **Forth Bridge** in Scotland. This cantilever bridge, completed in 1890, is a classic example of how steel's ductility and strength can be harnessed to create a durable and resilient structure. The bridge's design allows it to withstand significant loads and environmental stresses, demonstrating the long-term benefits of using ductile steel in bridge construction.

Another example is the **Howrah Bridge** (also known as Rabindra Setu) in India. Completed in 1943, this cantilever bridge is 97 meters high and 705 meters long. It has withstood the test of time and continues to serve as a vital transportation link, showcasing the durability and ductility of steel.

These bridges illustrate how steel's ductility allows for the absorption and redistribution of stresses, which is crucial for withstanding dynamic loads such as wind, traffic, and seismic activity. The use of high-quality steel with enhanced ductility ensures that these structures can deform plastically under stress without fracturing, thereby maintaining their structural integrity and safety.




Specifications:

​

CB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS QS SSR DSR TSR QSR
200 Standard Truss Moment(kN.m) 1034.3 2027.2 2978.8 3930.3 2165.4 4244.2 6236.4 8228.6
200 Standard Truss Shear (kN) 222.1 435.3 639.6 843.9 222.1 435.3 639.6 843.9
201 High Bending Truss Moment(kN.m) 1593.2 3122.8 4585.5 6054.3 3335.8 6538.2 9607.1 12676.1
202 High Bending Truss Shear(kN) 348 696 1044 1392 348 696 1044 1392
203 Shear Force of Super High Shear Truss(kN) 509.8 999.2 1468.2 1937.2 509.8 999.2 1468.2 1937.2
OEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge TrussOEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge TrussOEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge TrussOEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge Truss

​​

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure Geometric Characteristics
Geometric Characteristics Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
ss SS 25.48 5437 580174
SSR 50.96 10875 1160348
DS DS 50.96 10875 1160348
DSR1 76.44 16312 1740522
DSR2 101.92 21750 2320696
TS TS 76.44 16312 1740522
TSR2 127.4 27185 2900870
TSR3 152.88 32625 3481044
QS QS 101.92 21750 2320696
QSR3 178.36 38059 4061218
QSR4 203.84 43500 4641392
OEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge TrussOEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge TrussOEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge TrussOEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge Truss

​​

CB321(100) Truss Press Limited Table
No. Lnternal Force Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Standard Truss Moment(kN.m) 788.2 1576.4 2246.4 3265.4 1687.5 3375 4809.4 6750
321(100) Standard Truss Shear (kN) 245.2 490.5 698.9 490.5 245.2 490.5 698.9 490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No. Geometric Characteristics Structure Form
Not Reinforced Model Reinforced Model
SS DS TS DDR SSR DSR TSR DDR
321(100) Section properties(cm3) 3578.5 7157.1 10735.6 14817.9 7699.1 15398.3 23097.4 30641.7
321(100) Moment of inertia(cm4) 250497.2 500994.4 751491.6 2148588.8 577434.4 1154868.8 1732303.2 4596255.2
OEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge TrussOEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge TrussOEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge TrussOEM Portable Steel Trestle Bridge 3000mm*1400mm Corrosion Resistance Best Bridge Truss

​



Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
