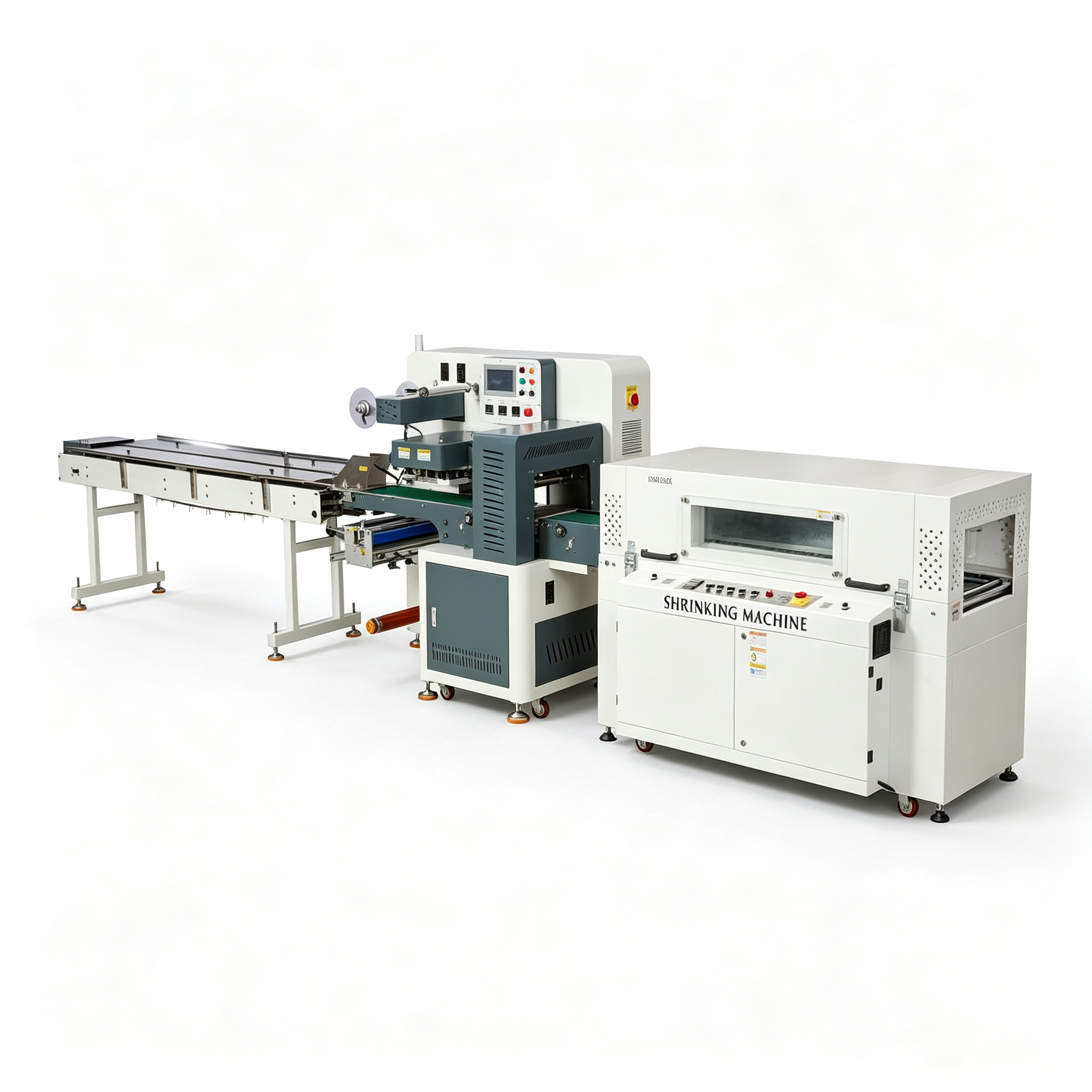

Shrink Wrap Horizontal Flow Wrapping Machine POF Flow Wrapper PLC Controlled
Shrink Wrap Horizontal Flow Wrapping Machine POF Flow Wrapper PLC Controlled
Specifications
Model Number :
ZRS-590X
Delivery Time :
15-30 working days
Machine Dimensions :
4750*1120*1610MM
Place of Origin :
CHINA
Packing speed :
50-100 packs/Min
Control System :
PLC with Touch Screen Interface
MOQ :
1 set
Weight :
650KG
Compatible Products :
Masking film, milk tea, food
Supply Ability :
10 sets per month
Packaging film :
PVC, POF, PE
Certification :
VERIFICATION OF CONFORMITY
Price :
Negotiable
Applicable Product Size :
Φ(40-220)*H(5-90)mm
Max. Film Width :
<590mm
Packaging Details :
Wooden Case
Brand Name :
ZHIROBO
Type :
Horizontal Flow Wrapper
Payment Terms :
T/T
Description
POF Dedicated Wide 590mm Max Film Width Shrink Flow Wrapper For Food Masking Film
Technical Specifications
Parameter ZRS-590X KS-4525
Max. Film Width <590mm
Packing Size Φ(40-220)*H(5-90)mm 450(W)*200(H)mm
Packaging Speed 50-100 packs/Min 0-18/min
Voltage and Power 1P220V 50/60HZ/5.4KW AC380V/12KW
Machine Size 4750*1120*1610MM
Heating Tunnel Size 1500*450*250MM
Packing Kind Masking film, milk tea, food packaging PVC, POF, PE
Film Type POF
Weight 650KG 150kg
Configuration Details
Component ZRS-590X KS-4525
Touch Screen WECON
AC Contactor TIANGAO
Servo Motor/Driver/Controller WECON
Circulation Fan Surin
Gear Reducer HASHIMAI
Stepper Motor Instar
Air Circuit Breaker MOFIIFR
Photoelectric Switch DCF
Speed Governor DingJianpai
Magnetic Particle Clutch YOSEEN
Switching Power Supply Ming wei
Contactor/Relay Schneider
Push Button Switch Kndele TIANGAO
Temperature Controller Caoren Shanghai yatai
Linear Guides HIWIN
Motor Sanly MaiLi
Terminal Block Tend
Three-Color Signal Tower Light TʌYB
Solid State Relay FTEK
Proximity Switch CNTD
Bearing NSK HRB
Sealing and Cutting Knife DC53 die steel surface Teflon treatment
Production Line SUN304 stainless steel
Device Body Steel structure baking powder
Working Desk SUN304 stainless steel
Application Overview

Primarily designed for heat shrink packaging applications across multiple industries including adhesive products, daily chemicals, gifts, toys, medical treatment, and food processing. Ideal for packaging individual items such as masking film, tape, barbecue aluminum foil, milk tea products, plastic wrap, garbage bags, instant noodles, shower gel, and similar consumer goods.

Key Features
  • Three-servo control system with instant bag length setting and cutting capability
  • Rotary sealing and cutting knife for continuous packaging operation
  • Automatic shutdown when film is depleted and standby mode without material
  • Anti-stick cutter made from high-speed die steel with Teflon surface treatment
  • Color touch screen control with convenient parameter setting
  • Lead screw adjustment for easy specification changes
  • Simplified transmission system for reliable operation and easy maintenance
  • Anti-miscut protection with automatic sealing jaw retraction
  • Torque-controlled waste removal system with stepper motor-driven mechanism
Equipment Layout

Shrink Wrap Horizontal Flow Wrapping Machine POF Flow Wrapper PLC Controlled

Shrink Wrap Horizontal Flow Wrapping Machine POF Flow Wrapper PLC Controlled

Shrink Wrap Horizontal Flow Wrapping Machine POF Flow Wrapper PLC Controlled
