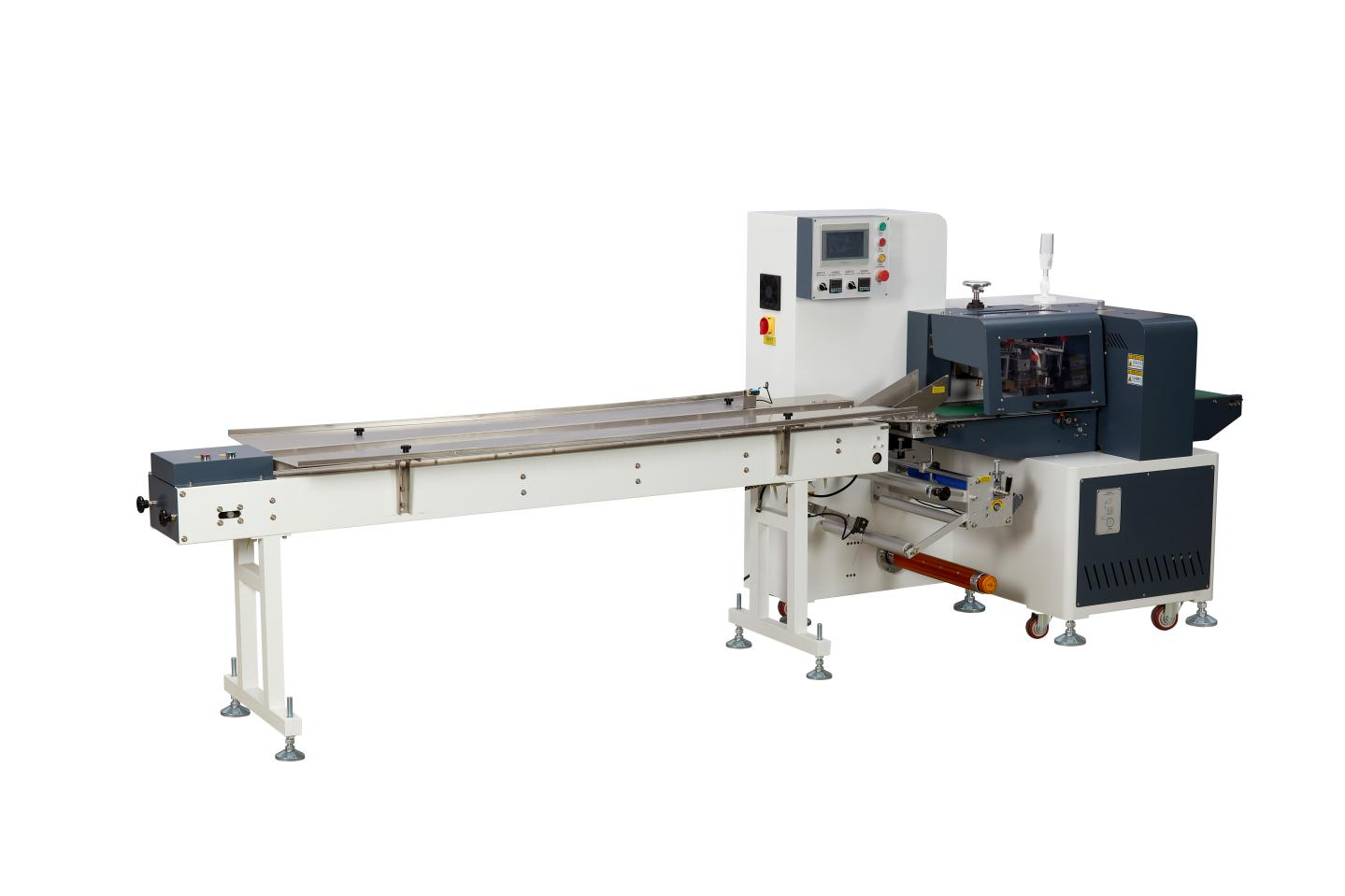

Color Mark Tracking Flow Pack Machine Large Format Flow Pack Wrapping Machine
Color Mark Tracking Flow Pack Machine Large Format Flow Pack Wrapping Machine
Specifications
Model Number :
ZRS-580X
Control System :
PLC with Touch Screen Interface
Supply Ability :
10 sets per month
Certification :
VERIFICATION OF CONFORMITY
Place of Origin :
CHINA
Payment Terms :
T/T
Packing Speed :
50-100 packs/Min
Delivery Time :
15-30 working days
Weight :
550KG
Brand Name :
ZHIROBO
Machine Size :
4500*1200*1680MM
Applicable Product Size :
Φ(80-220MM)*H(5-70MM)
Product application :
Food, hardware, daily necessities
Type :
Horizontal Flow Wrapper
MOQ :
1 set
Packaging Details :
Wooden Case
Price :
Negotiable
Description
580mm Film Capacity Flow Wrapping Machine With Color Mark Tracking For Printed OPP Film
Main Technical Parameters
Model ZRS-580X
Pack Size Φ(80-220MM)*H(5-70MM)
Packing Speed 50-100 packs/Min
Power 1P 220V 50/60HZ 5.4KW
Machine Size 4500*1200*1680MM
Packing Kind (BOPP, double-adhesive, foam tape)
Weight 550KG
Equipment Configuration
Component Model/Brand
Touch Screen VEICHI
Servo Motor VEICHI
Server Driver VEICHI
Motion Controller VEICHI
Reducer HASHIMAI
Leakage Switch Chint
Switching Power Supply Ming Wei
Contactor Schneider
Relay Schneider
Push Button Switch KNDELE
Thermostat Caoren
Solid State Relay C.LIN
Motor Sanly
Terminal Block Tend
Tri-color Warning Light TʌYB
Photoelectric Sensor DCF
Belt Diamond Pattern Belt
Sealing and Cutting Knife DC53 Die Steel Surface Teflon Treatment
Assembly Line SUN304 Stainless Steel
Device Body Steel Structure Baking Powder
Working Desk SUN304 Stainless Steel
Basic Use

Widely used in pillow packaging for adhesive products, daily chemicals, printing, food, hardware, toys and other industries.

Product Characteristics
  • PC system control, bag length can be set and cut immediately in one step, saving time and film
  • Automatic shutdown without film, standby without material, air defense bag
  • Anti-stick cutter made of high-speed die steel with surface Teflon treatment, preventing packaging film sticking and enhancing cutter service life
  • Color touch screen control for convenient and quick parameter setting, capable of storing 49 packaging parameters
  • Fault self-diagnosis function with clear fault display for quick troubleshooting
  • High-sensitivity photoelectric eye color mark tracking with digital input of sealing and cutting position for more accurate and exquisite color film packaging
  • Simple transmission system for more reliable work and convenient maintenance
  • Anti-miscut protection - sealing knife automatically turns over when product is cut incorrectly, protecting knife holder and product for enhanced safety

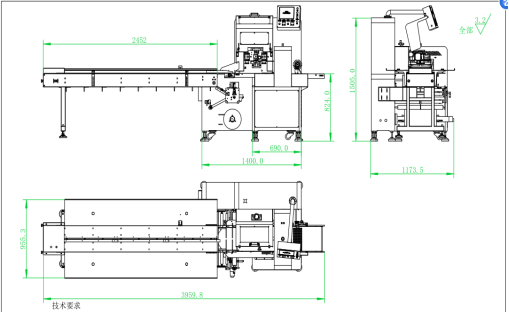

Equipment Layout

Color Mark Tracking Flow Pack Machine Large Format Flow Pack Wrapping Machine

Color Mark Tracking Flow Pack Machine Large Format Flow Pack Wrapping Machine

Color Mark Tracking Flow Pack Machine Large Format Flow Pack Wrapping Machine
