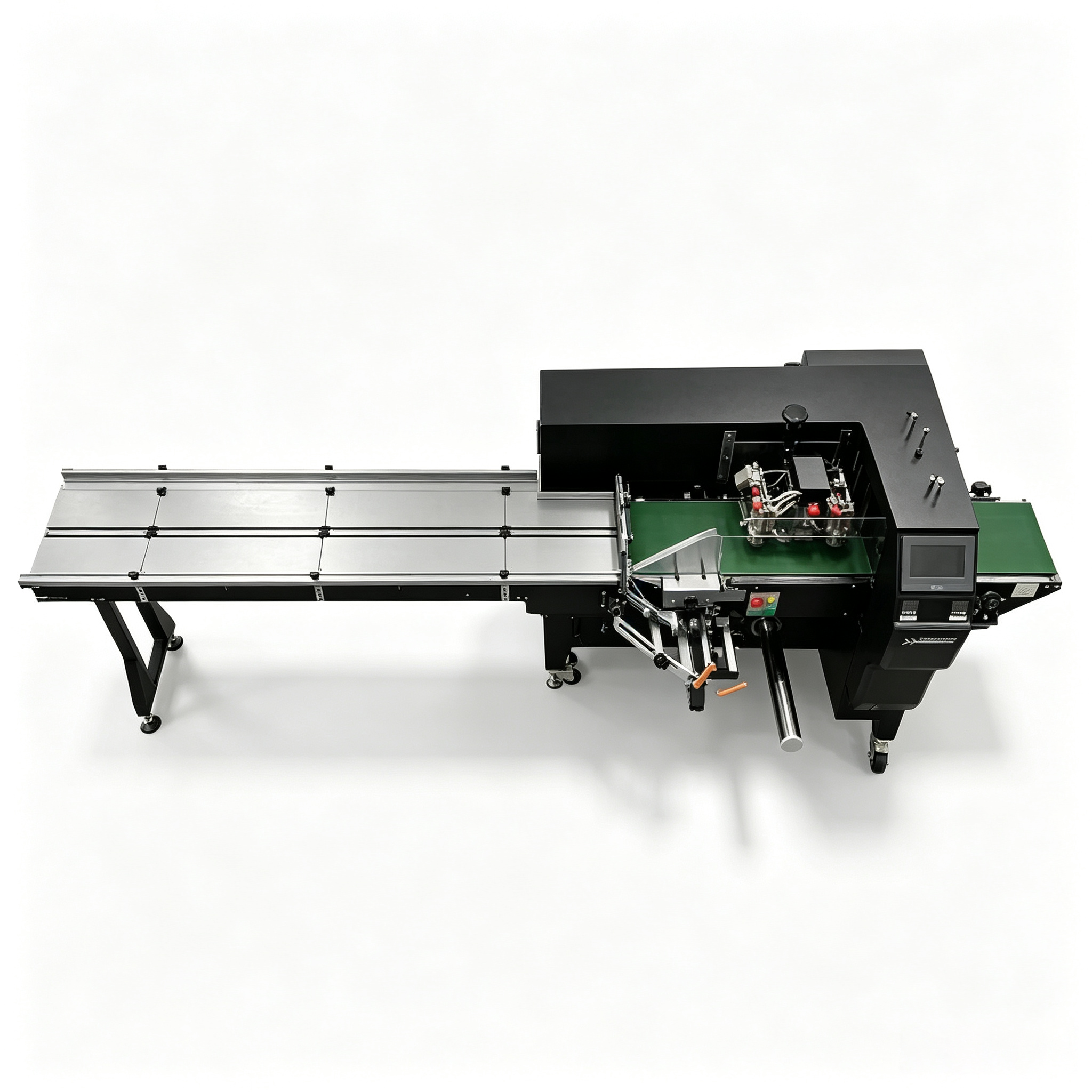

Automatic Pillow Packaging Machine Horizontal Flow Packing Machine
Automatic Pillow Packaging Machine Horizontal Flow Packing Machine
Specifications
Model Number :
ZRS-450XJ
Machine Dimensions :
3590*960*1080mm
MOQ :
1 set
Packing speed :
30-120 packs/Min
Control System :
PLC with Touch Screen Interface
Supply Ability :
10 sets per month
Certification :
VERIFICATION OF CONFORMITY
Weight :
340KG
Compatible Products :
Wrench, screwdriver, switch, socket, etc.
Place of Origin :
CHINA
Applicable Product Size :
（W）150*（H）60MM
Packaging Details :
Wooden Case
Price :
Negotiable
Delivery Time :
15-30 working days
Packaging film :
PP, CPP, PVC, PET, etc
Payment Terms :
T/T
Packaging film width :
90-450mm
Brand Name :
ZHIROBO
Type :
Horizontal Flow Wrapper
Description
High Cost Performance Automatic Pillow Packaging Machine With Color Mark Sensor
Main Technical Parameters
Model
ZRS-450XJ
Packaging Film Width
90-450mm
Packaging Width
150mm
Packaging Height
60mm
Packaging Speed
30-120 packs/Min
Voltage & Power
1P 220V 50HZ 2.8KW
Machine Size
3590*960*1080mm
Compatible Products
Wrench, screwdriver, switch, socket, etc.
Weight
340KG
Packaging Film Types
PP, CPP, PVC, PET, etc.
Equipment Configuration List
No. Name Brand Technical Specs Qty Remarks
1 Touch Screen FLEXEM 7-inch Resistive Touch Panel 1
2 Servo Motor WECON 750W/400W 3
3 Servo Driver WECON 3
4 Air Circuit Breaker Huanyu 2
5 Special Power Supply for Servo & Stepper Motor Leadshine 1
6 Relay Omron 2
7 Push Button Switch Schneider 4
8 Temperature Controller Sinny 2
9 Solid State Relay Baideli (Wenzhou) 2
10 Terminal Block TEND 50
11 Photoelectric Sensor Controlymay 1
12 Power Switch Changxin 1
13 Color Mark Sensor CNBDL 1
14 Filter TRANS 1
15 Sealing & Cutting Cutter Double cutter sealing & cutting, Teflon coated 1
16 Film Guide Swing Lever Mechanism Standard Type Film Swing Lever Assembly 1
17 Film Supporting Mechanism Single support with automatic centering function 1
18 Feeding Mode Belt feeding tail rack 1
19 Machine Main Body Carbon steel frame with black finish 1
20 Cutter Safety Guard Black ABS polymer material 1
21 Out-feed Conveyor Belt Green PVC belt with hair brush cleaner 1
22 In-feed Unit Chain transmission Several
23 Product Feeding Unit Chain transmission Several
24 Tool Kit Cutting blades, spanners and other maintenance tools 1 Set
Basic Applications

Suitable for packaging products in hardware, electrical appliances, switches, small commodities, daily chemicals, and other industries. Capable of wrapping items such as wrenches, screwdrivers, switches, sockets, and various small components.

Equipment Advantages
  • Triple-servo control system ensures clear operational status and stable performance
  • Intuitive HMI (Human-Machine Interface) enables simple operation with one-touch parameter storage and quick changeover
  • Automatically adjustable bag length with ultra-high precision and digital sealing/cutting position control
  • Optional knife seal chain drive for heavy-duty packaging applications
  • Changeover-free operation for different product sizes with auto in-feed and high-sensitivity sensor positioning
  • Accommodates a wider range of product dimensions
  • High-precision gearbox ensures stable operation, low noise, high efficiency, and extended service life
Equipment Layout

Automatic Pillow Packaging Machine Horizontal Flow Packing Machine

Automatic Pillow Packaging Machine Horizontal Flow Packing Machine

Automatic Pillow Packaging Machine Horizontal Flow Packing Machine
