PLC Controlled Horizontal Flow Wrapping Machine Precision Gearbox Horizontal Flow Wrapper
PLC Controlled Horizontal Flow Wrapping Machine Precision Gearbox Horizontal Flow Wrapper
Specifications
Model Number :
ZRS-350XJ
Packaging Details :
Wooden Case
Payment Terms :
T/T
Packing speed :
30-120 packs/Min
Place of Origin :
CHINA
Control System :
PLC with Touch Screen Interface
MOQ :
1 set
Machine Dimensions :
3590*960*1080mm
Price :
Negotiable
Weight :
340KG
Kind of package :
Wrench, screwdriver, switch, socket, etc
Packaging film :
PP, CPP, PVC, PET, etc
Delivery Time :
15-30 working days
Supply Ability :
10 sets per month
Certification :
VERIFICATION OF CONFORMITY
Applicable Product Size :
（W）120*（H）50MM
Packaging film width :
90-350mm
Type :
Horizontal Flow Wrapper
Brand Name :
ZHIROBO
Description
Economical Horizontal Flow Wrapping Machine with High-Precision Gearbox
Main Technical Parameters
Model ZRS-350XJ
Packaging film width 90-350mm
Packaging width 120mm
Packaging height 50mm
Packing speed 30-120 packs/Min
Voltage and power 1P 220V 50HZ 2.8KW
Machine size 3590*960*1080mm
Kind of package Wrench, screwdriver, switch, socket, etc
Weight 340KG
Packaging film PP, CPP, PVC, PET, etc
Equipment Configuration List
No. Name Brand Technical Specs Qty Remarks
1 Touch Screen FLEXEM 7-inch Resistive Touch Panel 1
2 Servo Motor WECON 750W/400W 3
3 Servo Driver WECON 3
4 Air Circuit Breaker Huanyu 2
5 Special Power Supply for Servo & Stepper Motor Leadshine 1
6 Relay Omron 2
7 Push Button Switch Schneider 4
8 Temperature Controller Sinny 2
9 Solid State Relay Baideli (Wenzhou) 2
10 Terminal Block TEND 50
11 Photoelectric Sensor Controlymay 1
12 Power Switch Changxin 1
13 Color Mark Sensor CNBDL 1
14 Filter TRANS 1
15 Sealing & Cutting Cutter Double cutter sealing & cutting, Teflon coated 1
16 Film Guide Swing Lever Mechanism Standard Type Film Swing Lever Assembly 1
17 Film Supporting Mechanism Single support with automatic centering function 1
18 Feeding Mode Belt feeding tail rack 1
19 Machine Main Body Carbon steel frame with black finish 1
20 Cutter Safety Guard Black ABS polymer material 1
21 Out-feed Conveyor Belt Green PVC belt with hair brush cleaner 1
22 In-feed Unit Chain transmission Several
23 Product Feeding Unit Chain transmission Several
24 Tool Kit Cutting blades, spanners and other maintenance tools 1 Set
Basic Use

Suitable for packaging products in hardware, electrical appliances, switches, small commodities, daily chemicals, and other industries. It can wrap items such as wrenches, screwdrivers, switches, sockets, and more.

Equipment Advantages
  • The triple-servo control system ensures clear operational status and stable performance. The intuitive HMI (Human-Machine Interface) enables simple operation, and product parameters and recipes can be stored with one touch for quick changeover.
  • The bag length is automatically adjustable without manual intervention, offering ultra-high precision. The sealing and cutting positions can be digitally entered for precise operation, ensuring no material is cut into. The stop position and printing position are freely programmable.
  • Optional knife seal chain drive for heavy-duty packaging. Changeover-free operation for different product sizes. Auto in-feed with high-sensitivity sensor for precise positioning — simple and labor-saving.
  • Can accommodate a wider range of products.
  • The machine is equipped with a high-precision gearbox, which ensures more stable operation, low noise, high efficiency, and a longer service life.

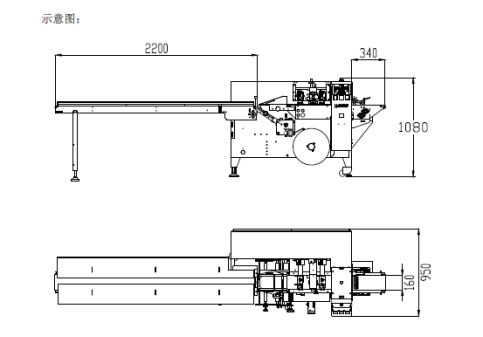

Equipment Layout

PLC Controlled Horizontal Flow Wrapping Machine Precision Gearbox Horizontal Flow Wrapper

PLC Controlled Horizontal Flow Wrapping Machine Precision Gearbox Horizontal Flow Wrapper
