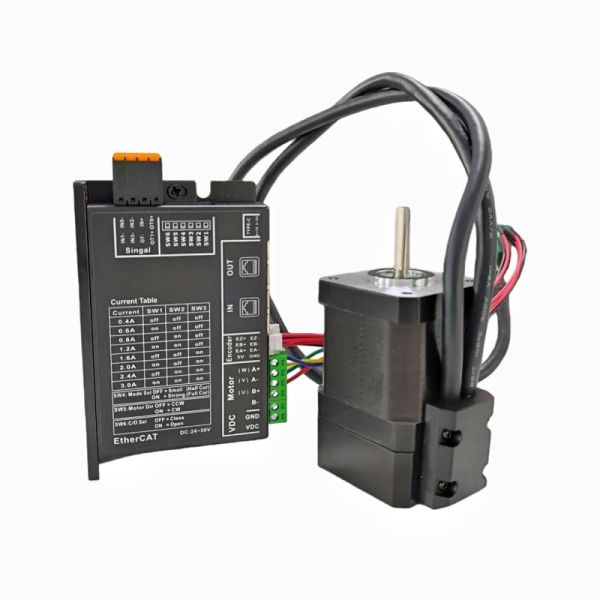

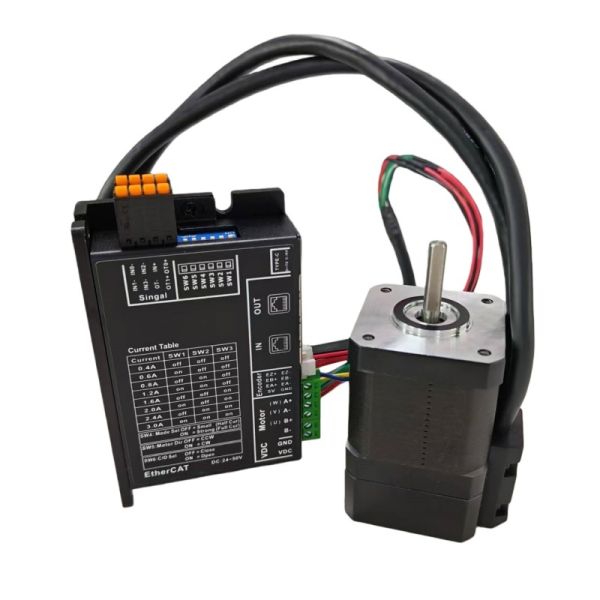

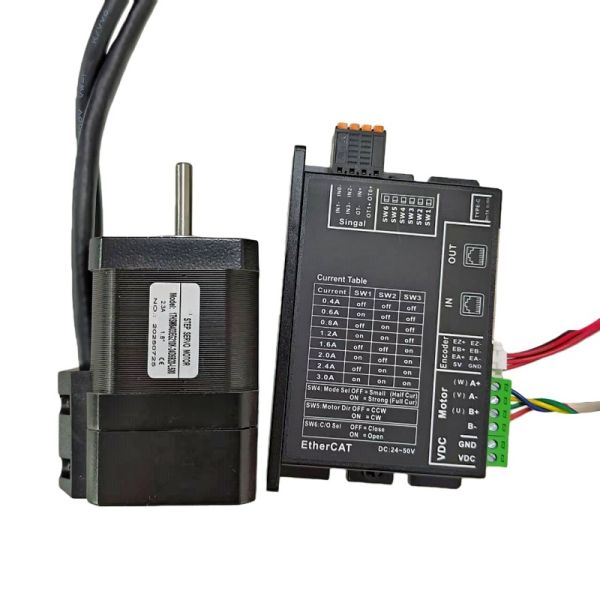

Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines
Specifications
Brand Name :
ZEROONE-Control
Model Number :
EC42 driver + 42 motor
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1 set
Price :
US$42/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 sets/day
Delivery Time :
3-7 days
Packaging Details :
Carton
Description
Closed Loop 2 Phase Stepper Motor NEMA17 42mm Flange with EtherCAT Communication Bus EC42 Servo Stepper Driver

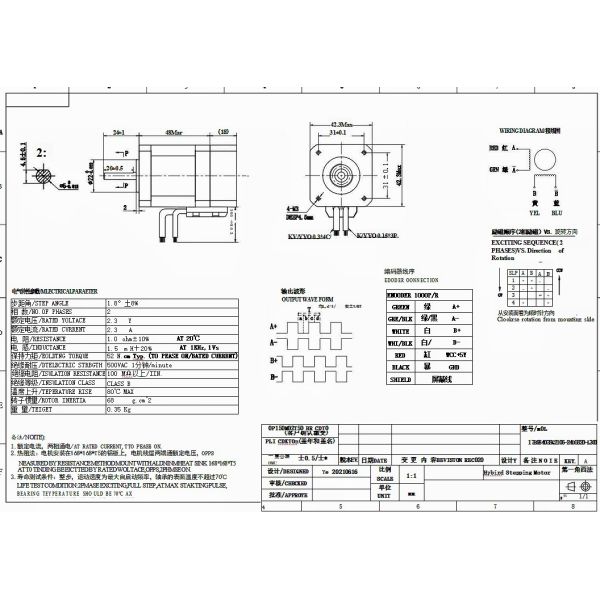

Stepper Motor Specifications:
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines

Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines

Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines

Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines

EC42 EtherCAT Stepper Driver Technical Parameters
Electrical Specifications:

Parameter EC42 Minimum Typical Maximum Unit
Output Current (Peak) EC42 0.1 - 3.0 A
Input Power Supply Voltage (DC) EC42 15 24 80 VDC
Control Signal Input Current EC42 6 10 16 mA
Control Signal Interface Level EC42 4.5 5 28 VDC
Pull-up Voltage for OC Output EC42 5 - 24 VDC
EtherCAT Communication Frequency EC42 - 100 - MHz
Insulation Resistance EC42 100

MΩ
Environmental & Operating Conditions
Parameter Specification
Cooling Method Natural cooling or forced air cooling
Operating Environment Do not place near heating equipment; avoid dust, oil mist, corrosive gas, excessive humidity, and strong vibration; no flammable gas or conductive dust
Temperature Range -10℃ to +50℃
Humidity Range 40-90% RH
Vibration Tolerance 5.9 m/s² MAX
Storage Temperature -20℃ to 60℃
Operating Altitude Below 1000 meters
Weight Approximately 0.16 kg

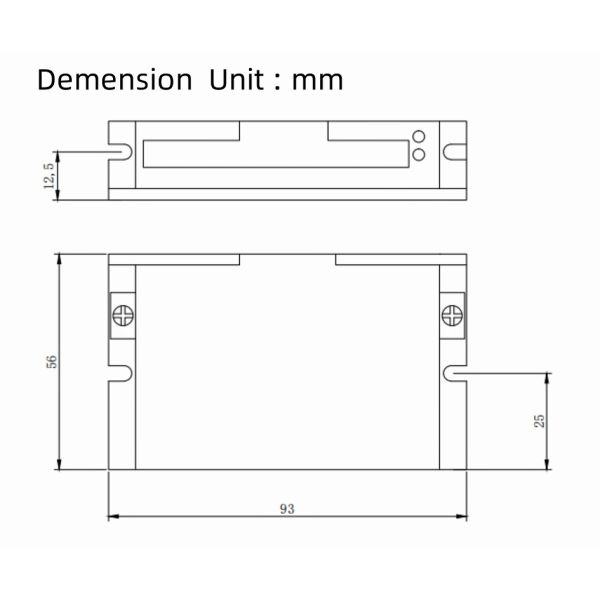

Mechanical Installation Dimensions
Unit: millimeters:
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines
USB Type-C Adapter for EC42 Stepper Driver
Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines Closed Loop 2 Phase NEMA17 42mm Flange Stepper Motor with EtherCAT Servo Stepper Driver for CNC Machines

Application areas

This solution is compatible with various EtherCAT communication protocols for small and medium-sized automation equipment and

instruments, including engraving machines, marking machines, cutting machines, laser typesetters, plotters, CNC machine tools, and

automatic assembly equipment. It delivers exceptional performance in applications requiring low noise and high-speed operation.
