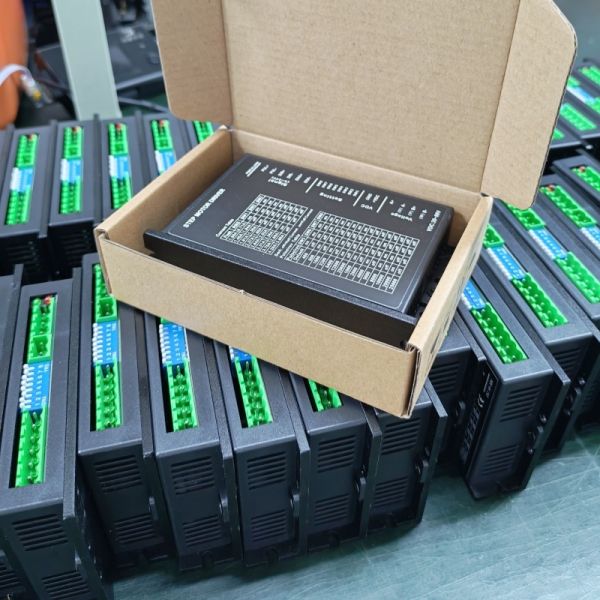

DM542 Stepper Motor Driver Introduction & Motor Matching Recommendations

Core Brief: DM542 is a 2-phase digital open-loop stepper driver, with DC20-80V input, 1.0-4.2A peak current and 16-step microstepping (200-25600 steps/rev). It is ideally paired with 42/57 (NEMA17/23) motors, featuring low noise, low heat and high cost performance.

I. Core Specifications & Features (Mainly Leadshine DM542 V3.0)

- Power Supply: DC20V-80V (24-48V recommended, power supply ≥100W)
- Output Current: 1.0-4.2A peak (8-level adjustable via DIP switch)
- Microstepping: 16 levels (200/400/800/1600/3200/6400/12800/25600 steps/rev)
- Control Signal: 5V/24V compatible (switchable via DIP switch), PUL/DIR/ENA (differential/single-ended, single/double pulse optional)
- Protection Functions: Overvoltage, undervoltage, overcurrent, phase-to-phase short circuit protection & idle half-current mode (heat reduction)
- Highlights: Anti-resonance, smooth filtering, auto-tuning, low vibration & noise, suitable for 42/57 frame open-loop stepper motors

II. Key Motor Matching Principles (Must Follow)

1. Phase Current Matching: Motor rated phase current ≤ Driver set current (preferably ≤4.0A, 4.2A is peak value)
2. Frame Priority: 42mm (NEMA17) & 57mm (NEMA23) are optimal; 60mm (NEMA24) is adaptable at low current, 86mm is not recommended (insufficient current/torque)
3. Voltage Compatibility: Motor rated voltage within 18-50V range
4. Motor Type: 2-phase hybrid stepper motors (4/6/8 wires; 6/8-wire motors need to be wired as 4 wires per manual)

III. Recommended Motor Models (Ready to Apply)

42mm (NEMA17) Low Torque (≤0.8N·m)

- 42CM04/06/08 (0.4/0.6/0.8N·m, 1.0-2.0A current)
- Universal: NEMA17 42×42mm, phase current 1.0-2.5A, torque 0.3-0.8N·m
- Applications: 3D printers, small engraving machines, instruments & meters, feeding mechanisms

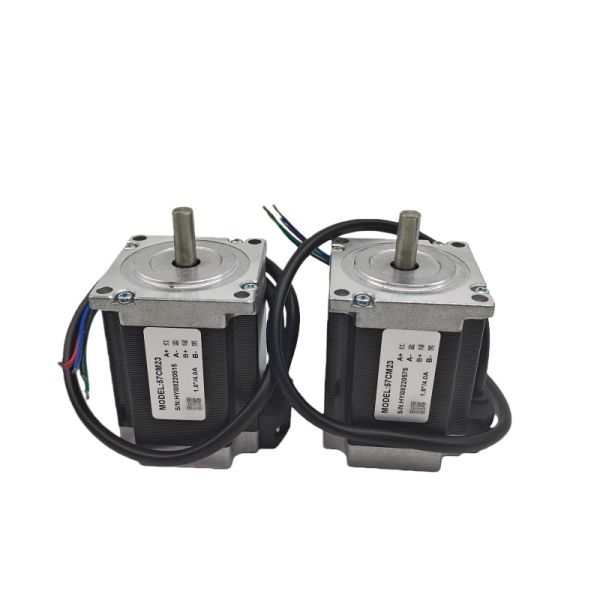

57mm (NEMA23) Medium Torque (0.8-3.0N·m) 【Highly Recommended】

- 57CM13/22/23/26 (1.3/2.2/2.3/2.6N·m, 2.0-4.0A current)
- Universal: NEMA23 57×57mm, phase current 2.0-4.0A, torque 1.0-3.0N·m
- Applications: Engraving machines, dispensers, screw drivers, packaging machines, small CNC machine tools

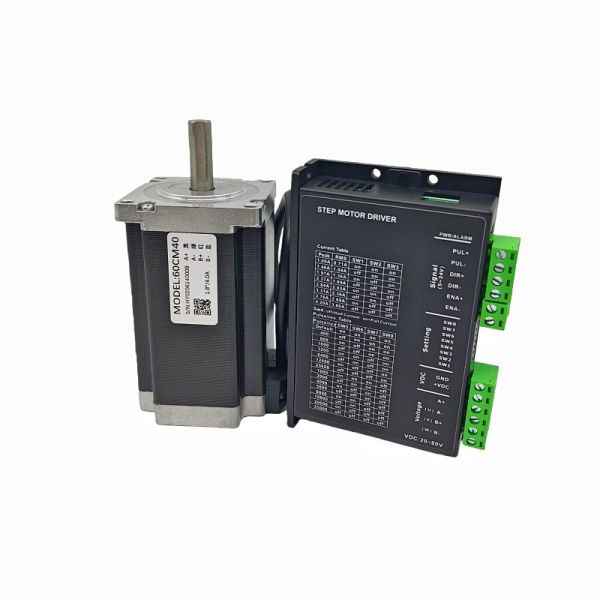

60mm (NEMA24) High Torque (3.0-4.0N·m) 【Use Cautiously】

- Recommended only: 60mm stepper motors with phase current ≤3.5A & torque ≤3.5N·m (e.g. Leadshine 60CM30)
- Notes: Set current to 3.0-4.0A, avoid long-term full load, enhance heat dissipation

IV. Precautions & Setting Suggestions

- Prohibited: 86mm stepper motors, motors with phase current >4.0A, voltage >50V/<18V

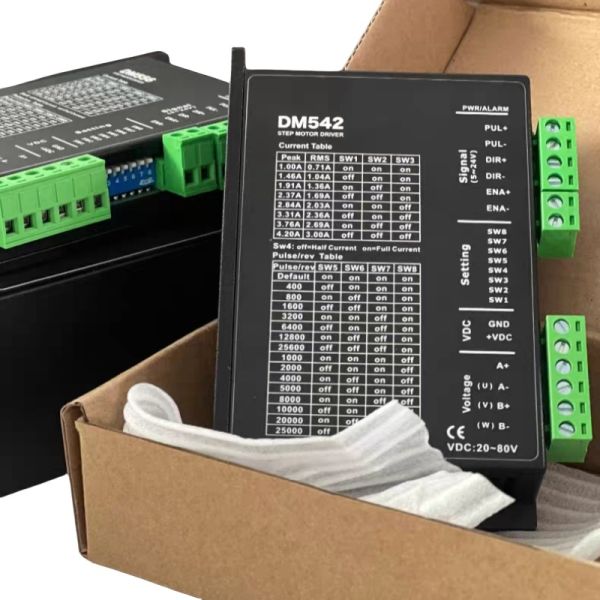

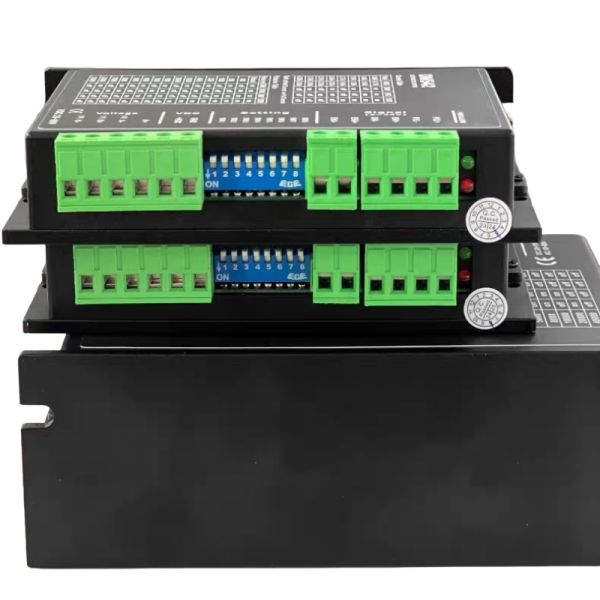

- DIP Switch Settings (Universal):
- Current: Set to 80-100% of motor rated current (80% for small motors, 100% for large motors)
- Microstepping: 12800/25600 for low-speed high precision; 1600/3200 for high speed
- Signal: 24V for 24V system, 5V for 5V system; differential mode for better anti-interference
- Heat Dissipation: Heat sink + small fan is recommended when current ≥3.0A or for continuous operation
- Test: Run no-load at low microstepping & low current first, then increase load gradually, monitor temperature rise and noise

V. Typical Application Scenarios

- Small automation equipment: Dispensers, screw drivers, labeling machines, packaging machines
- CNC equipment: Small engraving machines, laser cutting machines, CNC drilling machines
- Office & instruments: 3D printers, plotters, testing instruments.
