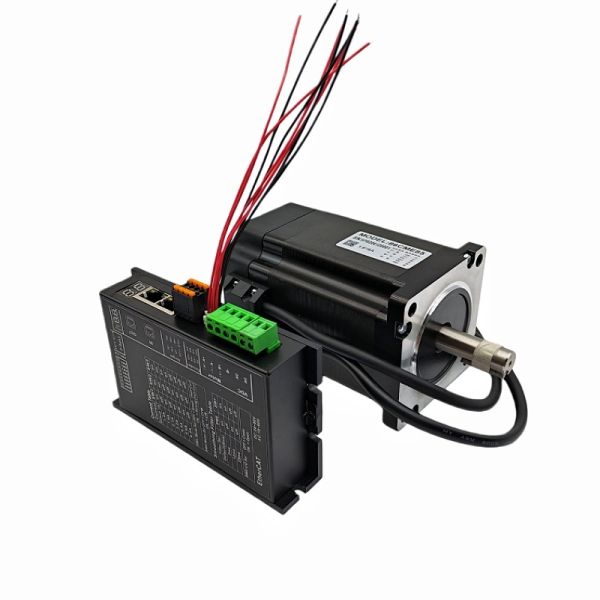

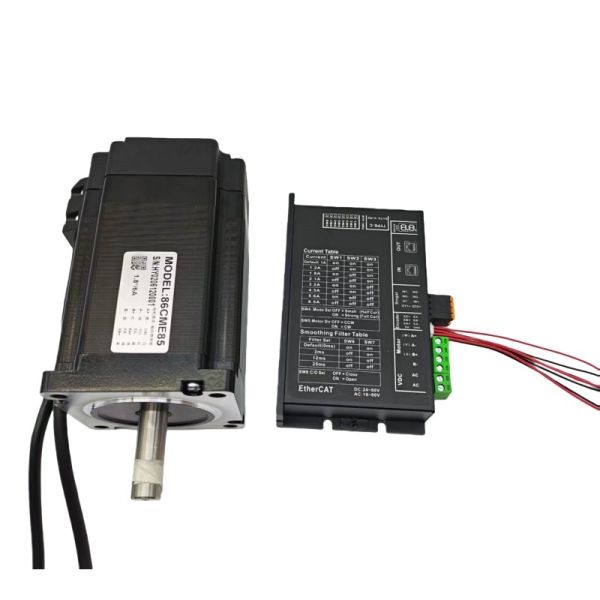

Closed Loop 2 Phase NEMA34 86mm Flange 8.5Nm Stepper Motor with EtherCAT Communication Bus EC86 Driver
The EC86 Servo Stepper Driver combines high-performance stepper motor technology with advanced EtherCAT communication for precision CNC and automation applications.
Application Areas
This solution is compatible with various EtherCAT communication protocols for small and medium-sized automation equipment and instruments, including:
  • Engraving machines
  • Marking machines
  • Cutting machines
  • Laser typesetters
  • Plotters
  • CNC machine tools
  • Automatic assembly equipment
It delivers exceptional performance in applications requiring low noise and high-speed operation.

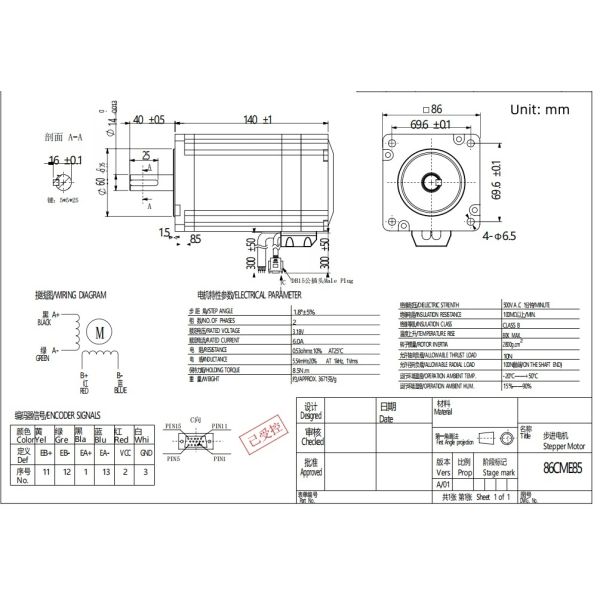

Stepper Motor Specifications
Closed Loop 2 Phase NEMA34 86mm Flange 86CME85 8.5Nm Stepper Motor with EtherCAT EC86 Servo Stepper Driver for CNC Machines

Closed Loop 2 Phase NEMA34 86mm Flange 86CME85 8.5Nm Stepper Motor with EtherCAT EC86 Servo Stepper Driver for CNC Machines

Closed Loop 2 Phase NEMA34 86mm Flange 86CME85 8.5Nm Stepper Motor with EtherCAT EC86 Servo Stepper Driver for CNC Machines

Closed Loop 2 Phase NEMA34 86mm Flange 86CME85 8.5Nm Stepper Motor with EtherCAT EC86 Servo Stepper Driver for CNC Machines

Closed Loop 2 Phase NEMA34 86mm Flange 86CME85 8.5Nm Stepper Motor with EtherCAT EC86 Servo Stepper Driver for CNC Machines

Closed Loop 2 Phase NEMA34 86mm Flange 86CME85 8.5Nm Stepper Motor with EtherCAT EC86 Servo Stepper Driver for CNC Machines

Closed Loop 2 Phase NEMA34 86mm Flange 86CME85 8.5Nm Stepper Motor with EtherCAT EC86 Servo Stepper Driver for CNC Machines

EC86 EtherCAT Stepper Driver Technical Parameters

EtherCAT communication terminal

The Ethernet cable for the EtherCAT bus should not exceed 100 meters in length. It is recommended to use Category 5e 100 Mbps Ethernet cable with dual shielding or higher-grade cables.

(1) Power terminal and motor winding terminal

name

pin

function

AC+

1

Power supply positive pole, supply voltage range: 24~80Vdc/18-60Vac, recommended 24Vdc or 36Vdc operation.

AC-

2

Power negative

A+

3

Stepper Motor A+ Phase Winding Interface

A-/U

4

Stepper motor A-phase winding interface (or 3-phase motor's U )

B+/V

5

Stepper motor B+ phase winding interface (or 3-phase motor's V )

B-/W

6

Stepper motor B-phase winding interface (or 3-phase motor's W )

(2) Encoder interface

EZ-

1

Encoder Z signal differential input interface negative terminal(open-loop stepping not connected).

EZ+

2

Encoder Z signal differential input interface positive terminal(open-loop stepping not connected).

EB-

3

Encoder B signal differential input interface negative terminal(open-loop stepping not connected).

EB+

4

Encoder B signal differential input interface positive terminal(open-loop stepping not connected).

EA-

5

Encoder A signal differential input interface negative terminal(open-loop stepping not connected).

EA+

6

Encoder A signal differential input interface positive terminal(open-loop stepping not connected).

GND

7

Provide DC voltage to the motor encoder at the negative pole

5V

8

Provide 5V DC voltage and 100mA current to the motor encoder.

(1) The encoder power supply is provided by the driver internally at 5V, but it is necessary to pay attention that if the polarity of the encoder power supply line is reversed, the stepper motor or the driver will be damaged.

(2) The encoder generates a 5V differential signal, which is processed internally by a differential chip and then sent to the main controller. The interface voltage here is only 5V, and exceeding 5V will damage the stepper

driver.

(3) Control signal

name

pin

function

IN0-

1

Digital input signal 0, compatible with 4.5-28VDC

IN1-

2

Digital input signal 1, compatible with 4.5-28VDC

IN2-

3

Digital input signal 2, compatible with 4.5-28VDC

IN3-

4

Digital input signal 3, compatible with 4.5-28VDC

IN+

5

Connect to the positive terminal of the digital input signal, compatible with 4.5-28VDC

OT-

6

Digital output signal 0 negative terminal, maximum input voltage 24Vdc, input resistance 2K Ω, maximum output current 100mA

OT0+

7

Digital output signal 0 positive terminal, maximum input voltage 24Vdc, input resistance 2K Ω, maximum output current 100mA

OT1+

8

Digital output signal 1 positive terminal, maximum input voltage 24Vdc, input resistance 2K Ω, maximum output current 100mA

Default input ports: IN0, IN1, IN2, IN3

IN0-: Negative limit (corresponding to Bit0 in parameter 0x60FD)

IN1-: Positive limit (corresponding to Bit1 of parameter 0x60FD)

IN2-: Origin (corresponding to Bit2 of parameter 0x60FD)

IN3-: Reserved

Default output ports: OT0, OT1

OT0+: Alarm output

OT1+: Position output (default) / Brake output (see the brake wiring diagram below)

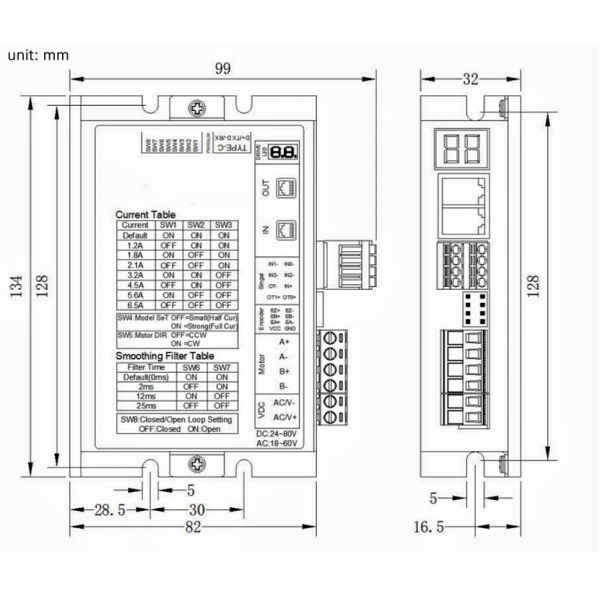

Mechanical Installation Dimensions
Unit: millimeters
Closed Loop 2 Phase NEMA34 86mm Flange 86CME85 8.5Nm Stepper Motor with EtherCAT EC86 Servo Stepper Driver for CNC Machines
