Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A
Specifications
Model Number :
EC42/EO42
Operating Temperature :
-20°C to 50°C
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Matching Motor :
Nema17 Ethercat closed-loop stepper motor
Current :
0.4A to 3A
Price :
US$27/pcs
Mounting Type :
flange mount
Supply Ability :
200pcs /day
Voltage :
24V to 50V
Certification :
CE,ROHS,EMC
MOQ :
1pc
Delivery Time :
1-8 days
Phase :
2-phase
Stepangle :
1.8 degrees (typical)
Packaging Details :
carton
Drive Method :
Ethercat
Brand Name :
ZEROONE-Control
Max Speed :
Up to 1000 RPM
Place of Origin :
Shenzhen,China
Description

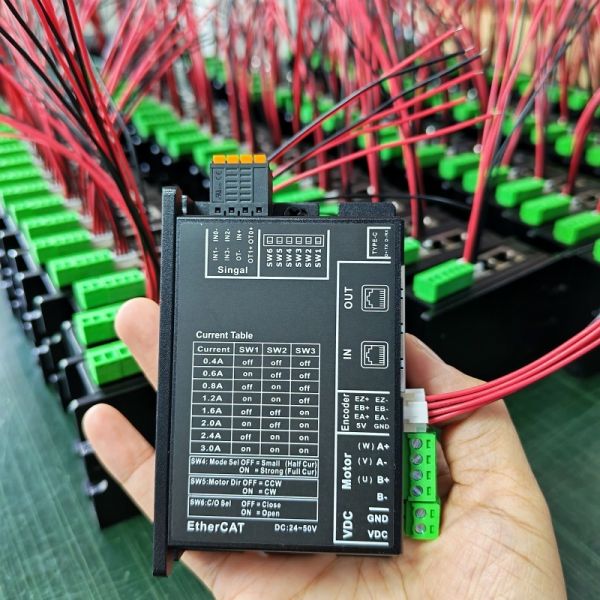

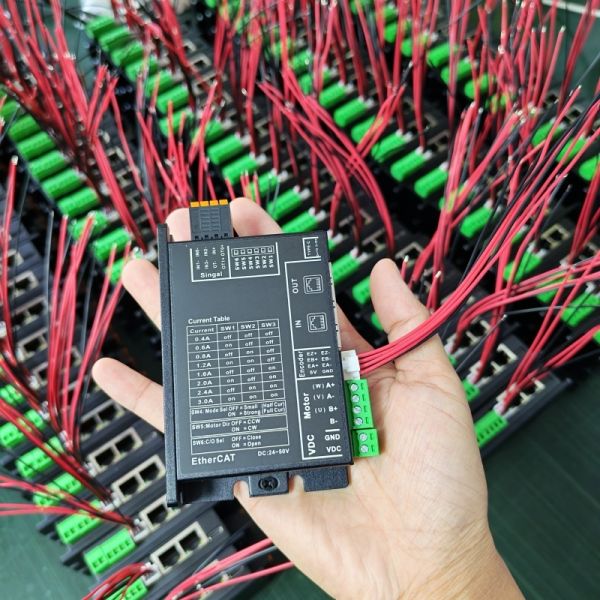

EC42 EtherCAT Stepper Driver for NEMA17(42) Motor

This is an EtherCAT fieldbus 2-phase stepper driver designed for NEMA17 42 frame stepper motors. It follows CoE & CiA402 protocol with 100Mbps real-time communication.


Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A

Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A

Bus-type Comminucation Ethercat 2-phase 42 Nema17 Closed-loop Stepper Motor driver EC42 DC24V-50V 3A



- Control modes: PP, PV, CSP, HM

- Power supply: DC 24~50V

- Output current: 0.2~3.0A adjustable

- Dual RJ45 port for daisy-chain multi-axis network

- DIN rail mounting, compact size 104x70x24.5mm

- Two versions: open-loop EO42 & closed-loop EC42 with encoder feedback. The EC42/EO42 EtherCAT bus-type stepper motor drives manufactured by You Yituo are compatible with both open-loop and closed-loop systems.
Built-in anti-resonance algorithm and auto current reduction to reduce motor heat and vibration. Widely used in dispensing machines, PCB equipment, small automation sliding tables.
