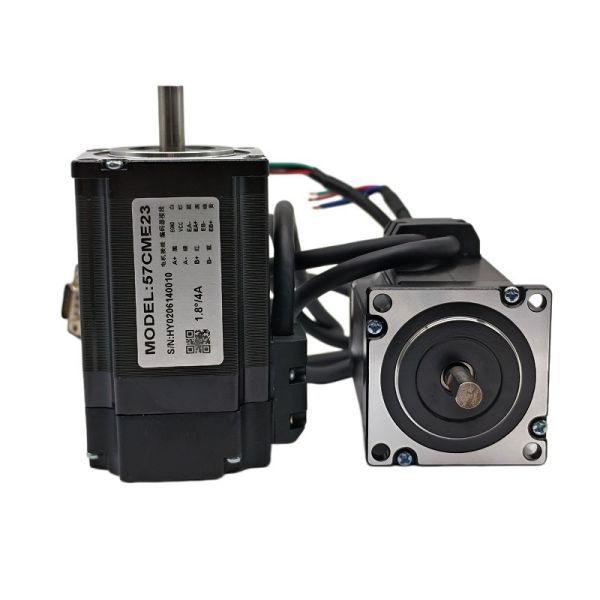

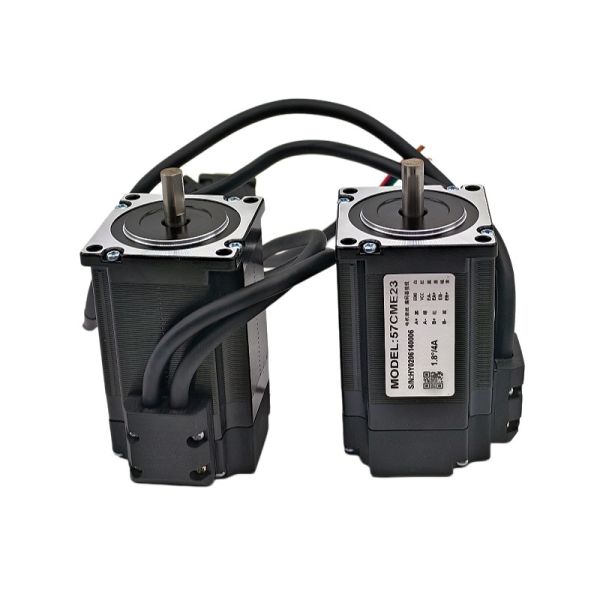

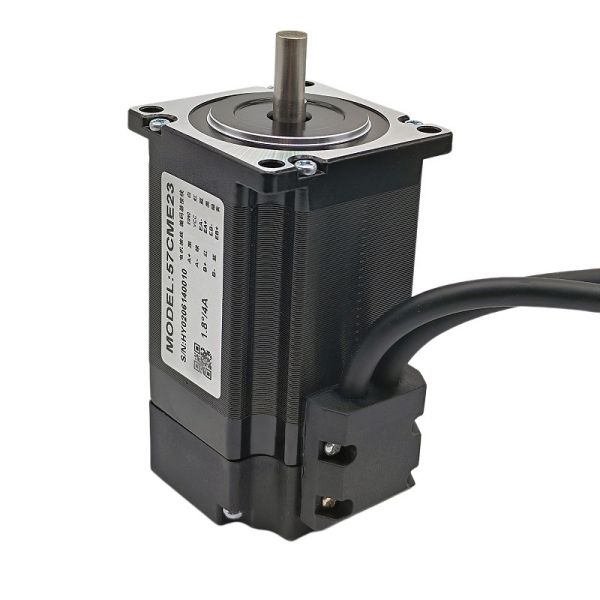

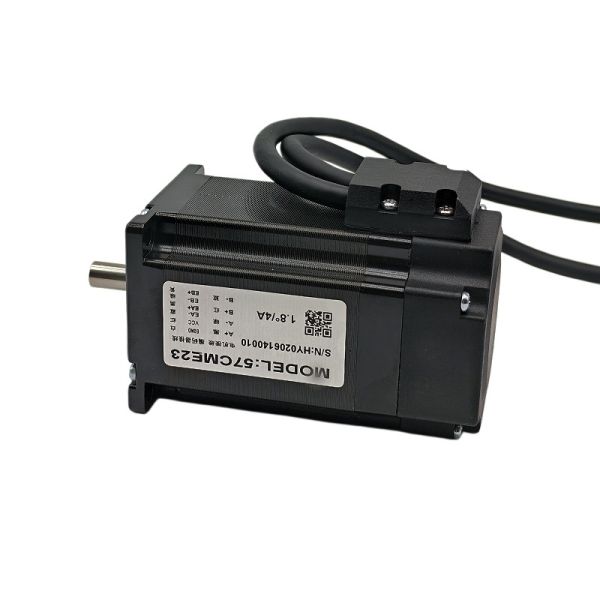

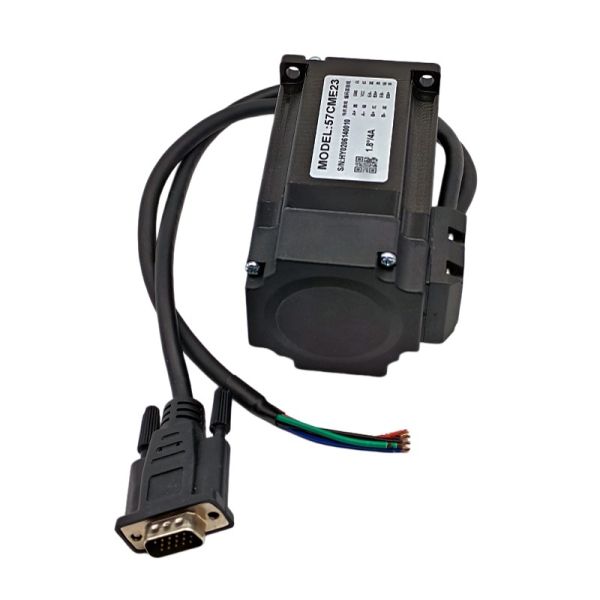

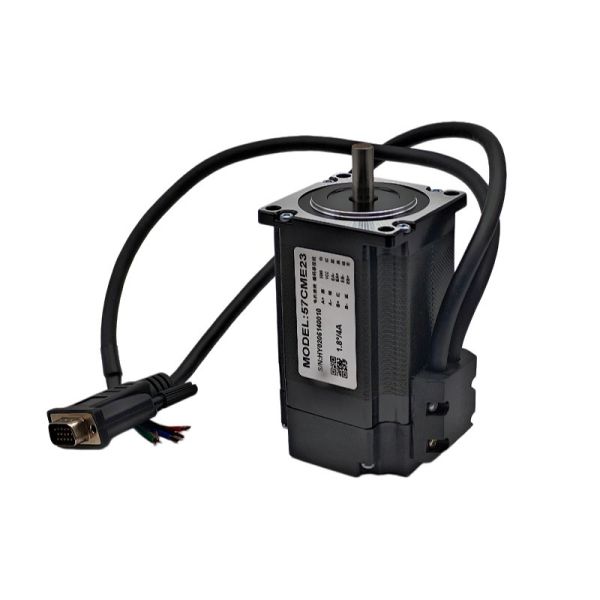

57CME23 57 NEMA23 Closed-Loop Stepper Motor

Product Overview
The 57CME23 is a high-performance NEMA 23 closed-loop stepper motor (also known as a hybrid servo motor). It features a 1.8° step angle, 2.3N·m holding torque, and a built-in 1000CPR optical encoder for real-time position feedback. This eliminates step loss, significantly improves motion accuracy, and delivers smoother, quieter operation with lower heat generation compared to traditional open-loop stepper motors. It is widely used in automation equipment requiring high precision and reliability.

Key Specifications

- Model: 57CME23

- Frame Size: NEMA 23 (57mm)

- Step Angle: 1.8°

- Rated Current: 4.0A/phase

- Holding Torque: 2.3 N·m

- Encoder Resolution: 1000CPR

- Insulation Class: B

- IP Rating: IP40

Compatible Drivers
For optimal performance, it is recommended to pair the 57CME23 with Leadshine dedicated closed-loop stepper motor drivers:

- CL57 / CL57D/ EC57: The most recommended match, supporting full closed-loop control and pulse/direction signal input.

- CL1-507/PC60: Suitable for applications requiring basic closed-loop functionality.

- Alternative drivers: Other closed-loop drivers that support 4A current output and encoder feedback, such as the HBS57 series, can also be used (calibration required).

Typical Applications & Equipment Compatibility
The 57CME23 is widely used in the following industrial automation equipment and machinery:

1. CNC Routers & Engraving Machines

- Suitable for small to medium-sized CNC routers, such as 3040, 4060, and 6090 desktop engraving machines, replacing open-loop motors to improve machining accuracy and reduce scrap rates.

2. 3D Printers & 3D Printing Equipment

- Applied to large-format FDM 3D printers and industrial-grade additive manufacturing equipment to ensure stable layer stacking and dimensional accuracy.

3. Packaging & Labeling Machines

- Used in automatic labeling machines, carton sealing machines, and filling machines to drive conveyor belts and positioning mechanisms, ensuring high-speed and accurate material handling.

4. PCB Assembly Equipment

- Suitable for AOI (Automated Optical Inspection) machines, SMT pick-and-place equipment, and PCB cutting machines for precise positioning and movement control.

5. Textile Machinery

- Used in automatic sewing machines, embroidery machines, and fabric cutting equipment to control needle movement and fabric feeding.

6. Medical Equipment

- Applied to small medical devices such as blood analyzers, and laboratory automation equipment requiring low noise and high precision.

7. Robotics & Automation Stages

- Suitable for multi-axis linear motion stages, delta robots, and sorting robots, providing reliable power for automated production lines.
