Openwrt 4g Lte Modem 3G 4G Wifi Router Plastic Case Black Color Watchdog Function
Openwrt 4g Lte Modem 3G 4G Wifi Router Plastic Case Black Color Watchdog Function
Openwrt 4g Lte Modem 3G 4G Wifi Router Plastic Case Black Color Watchdog Function
Openwrt 4g Lte Modem 3G 4G Wifi Router Plastic Case Black Color Watchdog Function
Specifications
Brand Name :
OEM
Model Number :
ZBT-WE826-WD
Certification :
FCC CE RoHs
Place of Origin :
China
MOQ :
Neutral order:100pcs,OEM order: 1000pcs,
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
80000 pcs /month
Delivery Time :
sample order 2-3 work days.Bulk order:20-25 Work days
Packaging Details :
Inner packing box. 20pcs/carton. Box size:263*173*63mm, Carton Size:548*340*368mm
Main Chipset :
MT7620A
SPI Flash :
16MB
RAM :
DDR2 128MB
Wireless Rate :
Max 300Mbps
Work Frequency :
2.4 GHz
Protocol :
IEEE 802.11n/g/b
Color :
Black
Case :
Metal
Antenna :
4*5Dbi detachable antennas
watchdog function :
Supported
3G/4G :
Supported
Description

ZBT in Shenzhen China.We specialized in openWRT wifi router, 3G/4G router, vehicle router, home using router,GPON/EPON, Access point.
30 R&D team, 300 workers. 8 years experience.OEM/ODM can be accepted.

1. Simply Description:

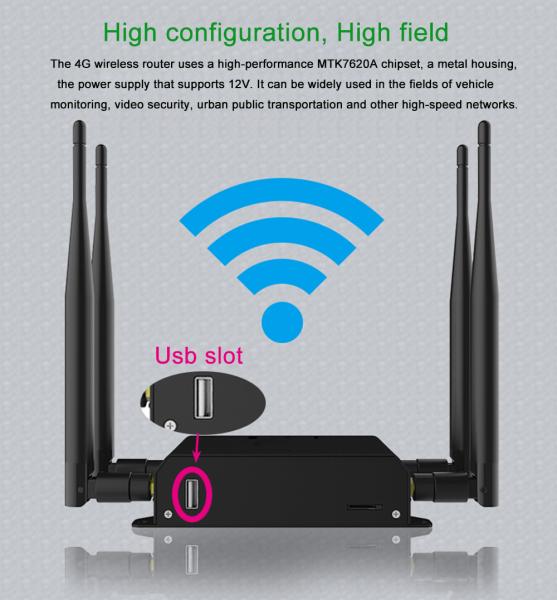

The WE826-WD uses the latest MT7620A Chipset wireless solution, performs better and more function. Stable wireless performance, more functions , 2.4G 300Mbps.Also support 3G&4G (3G,4G PCIE mode is necessary). This device has Wide Area Network VPN tunnel, Local Area Network Wi-Fi security authentication, 4G / 3G / and watchdog functions etc, to achieve wireless LAN seamless connection, automatic network redial to provide users with high-speed, secure, reliable mobile broadband services. Provide 1 USB2.0 interface, 1 Micro slot.

2. Product Feature:

  • Support 4G / 3G watchdog function, automatic network redial.
  • Support 802.11N/802.11G/802.11B network protocol.
  • Support 802.113/802.11U protocol, 5* 10/100M bps Auto MDI/MDIX
  • 1 USB 2.0 date interface
  • 1 Micro SD Card Slot
  • Support 3G/4G funciton

3.Product Specification

Hardware
Main Chipset MT7620A
RAM DDR2 128MB (MAX DDR2 256MB)
SPI FLASH 16MB (MAX 32MB)
Protocol IEEE 802.11n, IEEE 802.11g, IEEE 802.11b,
IEEE 802.3, IEEE 802.3u
RT Power

802.11b 18dBm±2dBm;

802.11g 15dBm±2dBm;

802.11n 15dBm±2dBm;
Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER
Work Channel

2.4GHz choose :1-13

5GHz choose :149, 153, 157, 161, 165
Wireless Rate Max 300Mbps
Work Frequency 2.4GHz
Antenna 4*detachable antennas
Interface

1*PCI-E slot

1*SIM card slot

1*USB 2.0 port

1*Micro SD card slot

1*10/100/100M WAN port(Auto MDI/MDIX)
4*10/100/100M LAN port(Auto MDI/MDIX)
LED Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button Reset/WPS
Max Power consumption < 12W
Dimension(L*W*H) 141*85*26MM
Software
WAN Type PPPoE,Dynamic IP, Static IP
Work Mode

AP;

Router;
DHCP Server, Client, DHCP Client List, Address Reservation
Port Forwareding Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding
DDNS Support
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Band Ctrl Support
Static Router Support
System Log Support
Other Function Mac clone
NTP Synchronize
Web firmware upgrade
Others
Work Environments

Operating Temperature:0℃ ~ 40℃；
Storage Temperature:-40℃~ 70℃；

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Adapter 12V 1A
Authentication CE, FCC, RoHs
Other accessories

Power adapter
