Dual LTE 3G 4G Wireless Modem Router With 2 Sim Slots MTK7628 Chipset
Dual LTE 3G 4G Wireless Modem Router With 2 Sim Slots MTK7628 Chipset
Dual LTE 3G 4G Wireless Modem Router With 2 Sim Slots MTK7628 Chipset
Dual LTE 3G 4G Wireless Modem Router With 2 Sim Slots MTK7628 Chipset
Specifications
Brand Name :
OEM/ZBT
Model Number :
WE5928
Certification :
CCC,CE,ROHS, FCC
Place of Origin :
Shenzhen-China
MOQ :
1pcs
Price :
Negotination
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs every week
Delivery Time :
Samples: 5 days; Bulk order: 25-30 days
Packaging Details :
1pcs device/1 packing box; 20pcs device with packing box/1 carton
Product Name :
MTK7628 Dual Sim Router Wireless 3G 4G Wifi Router With Dual 4G Modems
Chipset :
MTK7628
Flash :
8MB Flash
RAM :
64MB RAM
Hardware watchdog :
Support
3G/4G :
Dual 3G/4G modems
Wireless Rate :
300Mbps
Interface :
1 WAN port+3 LAN ports+1 TF slot+2 SIM slots
Description

Dual LTE Modem Wireless Router , 3G 4G Wifi Router With 2 Sim Slots

Product Feature

  • Support 802.11N/802.11G/802.11B network protocol, the max transmission rate could be 2.4G 300Mbps
  • Support 802.113/802.11U protocol, 3* 10/100M bps Auto MDI/MDIX
  • 1 Micro SD Card Slot
  • Support 3G/4G
  • With hardware watchdog, support redail up Internet after loosing Internet
  • Preload English openwrt firmware, support flash customer's firmware

Dual LTE Modem Wireless Router , 3G 4G Wifi Router With 2 Sim Slots

Product Description

The WE5928uses the latest MT7628N wireless solution, performs better and more function. Stable wireless performance, more functions , 2.4G 300Mbps, Also support 3G&4G function.One SD card slot. Beautiful share design.It is best choice to use home,office and other engineering project.

Dual LTE Modem Wireless Router , 3G 4G Wifi Router With 2 Sim Slots

Product Specification

Hardware
Main Chipset MT7628NN
RAM DDR2 64MB (MAX DDR2 128MB)
SPI FLASH 8MB (MAX 16MB)
Protocol IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE 802.3u
RT Power

802.11b 18dBm±2dBm;

802.11g 15dBm±2dBm;

802.11n 15dBm±2dBm;
Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER
Work Channel 2.4GHz choose :1-13
Wireless Rate Max 300Mbps
Work Frequency 2.4GHz
Antenna 2* 2.4G 5dBi antenna,2*4G 5dBi antenna, 2*4G FPC antenna
Interface

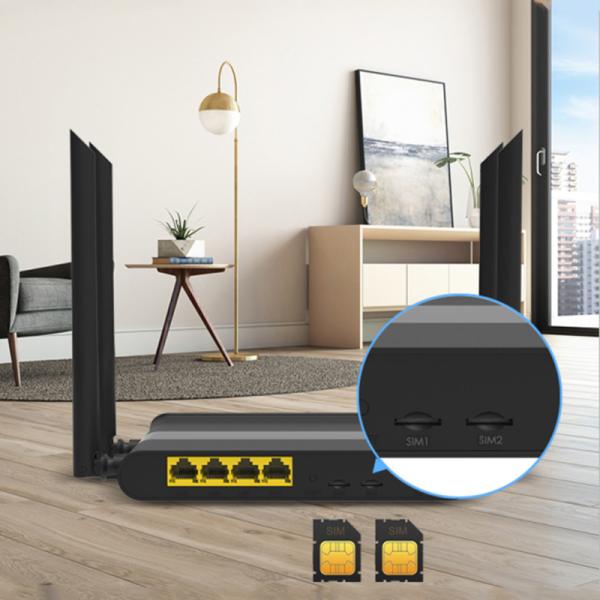

2*SIM card slot

1*Micro SD card slot

1*10/100M WAN port(Auto MDI/MDIX)
3*10/100M LAN port(Auto MDI/MDIX)
LED Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,
Button Reset/WPS
Max Power consumption < 12W
Others
Work Environments

Operating Temperature:0℃ ~ 40℃；
Storage Temperature:-40℃~ 70℃；

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Adapter 9V 1A
Authentication CE, FCC, RoHs
Other accessories

Power adapter

Dual LTE Modem Wireless Router , 3G 4G Wifi Router With 2 Sim Slots

FAQ

Can you printing Customer logo on products?

Yes, we can printing your logo on products.

Do you provide PCBA board order only?

Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

Can you desin products as per customer's requirements?

Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

Do you....?

Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
