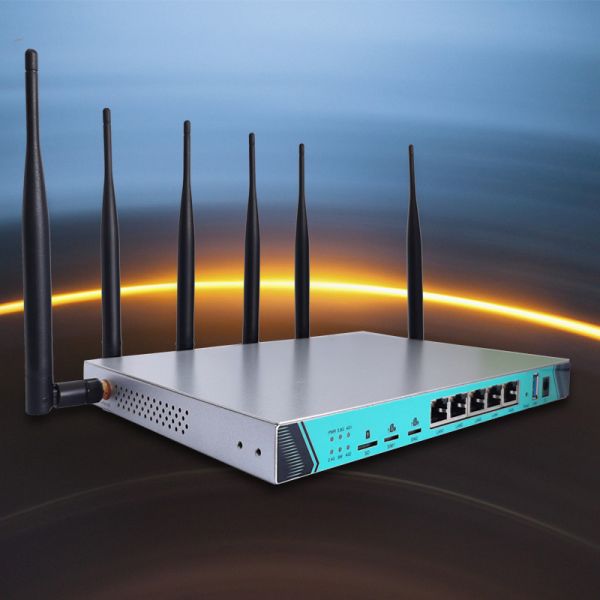

High Speed 3G 4G Wifi Router 1200mps Dual Band Gigabit 1 USB 3.0 Port Metal Case
High Speed 3G 4G Wifi Router 1200mps Dual Band Gigabit 1 USB 3.0 Port Metal Case
High Speed 3G 4G Wifi Router 1200mps Dual Band Gigabit 1 USB 3.0 Port Metal Case
High Speed 3G 4G Wifi Router 1200mps Dual Band Gigabit 1 USB 3.0 Port Metal Case
Specifications
Brand Name :
ZBT
Model Number :
ZBT-WG3526
Certification :
CE,FCC,roHs
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram and PayPal
Supply Ability :
100000pcs/Month
Delivery Time :
5-8 working days for sample order
Packaging Details :
10pcs/CTN, Carton size:482*320*350mm,15kg/Carton
CPU :
MTK7621A
Frequency band :
2.4Ghz&5.8Ghz
3G/4G function :
Support
Wireless Speed :
1200Mbps
Flash/RAM :
16MB Flash/512MB RAM
Material :
Metal Case
Antennas :
Six Detachable Antennas (If Choose 4G module)
Ethernet Ports :
5 gigabit 1wan+4lan
Description

Product Features:

  • Latest Dual core network chipset MT7621,Clock Frequency get 880Mhz
  • Provide 5 gigabit Auto MDI/MDIX Ethernet port
  • 1 USB 3.0 port
  • Provide 1 Micro SD Card slot+1 mini PCIE slot+1 SIM card slot
  • support IEEE IEEE802.11AC/N/G/B/A wireless protocol
  • The transmission rate get to 1200Mbps

Wireless:

Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps, 4×5Dbi high gain antennas, perform better and cover larger.

Specification:

Hardware Specification
Main Chipset MT7621/Dual Core /880Mhz
RAM DDR3 RAM 512MB (MAX512MB)/DDR2 RAM 128MB(MAX 256MB)
FLASH SPI FLASH 16MB (MAX32MB)
Protocol Standard

IEEE 802.11ac,IEEE 802.11a

IEEE 802.11n,IEEE 802.11g,IEEE 802.11b;
IEEE 802.3,IEEE 802.3u;
Wireless Rate

5G : 900Mbps

2.4G: 300Mbps
Work Frequency 2.4GHz/5G
Antenna 4 * 5dBi high gain antenna
Interface

1*10/100M/1000M WAN Port, Auto MDI/MDIX
4*10/100M/1000M LAN Port, Auto MDI/MDIX

1*USB 3.0 port

1*SD Card Slot
LED PWR.SYS.USB.2G.5G.WAN.3.2.1.0
Button 1*RESET
Power consumption < 30W
Adapter DC 12V2.5A

Dimension

(L*W*H)
Software
Management

IP:192.168.1.1

USER/PW admin/admin
WAN Type PPPoE,DynamicIP,Static IP
Work Mode

AP;

Router;
DHCP Server, Client, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding
DDNS Support
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Band Ctrl Support
Static Router Support
System Log Support
Other Function Mac clone
NTP Synchronize
Web firmware upgrade
Others
Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Authentication
Other accessories

High Speed 3G 4G Wifi Router 1200mps Dual Band Gigabit 1 USB 3.0 Port Metal CaseHigh Speed 3G 4G Wifi Router 1200mps Dual Band Gigabit 1 USB 3.0 Port Metal Case

FAQ

Q:Do you provide customer LOGO?

A:Yes, we can provide customer LOGO on firmware and hardware. The MOQ is 1000pcs

Q:Do you accept PCBA orders only?

A:Of course, as a OEM/ODM manfuactuer, we can provide PCBA in a short time with good quality.

Q:Do you provide firmware support?

A:Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.

Q:Do you....?

A:Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
