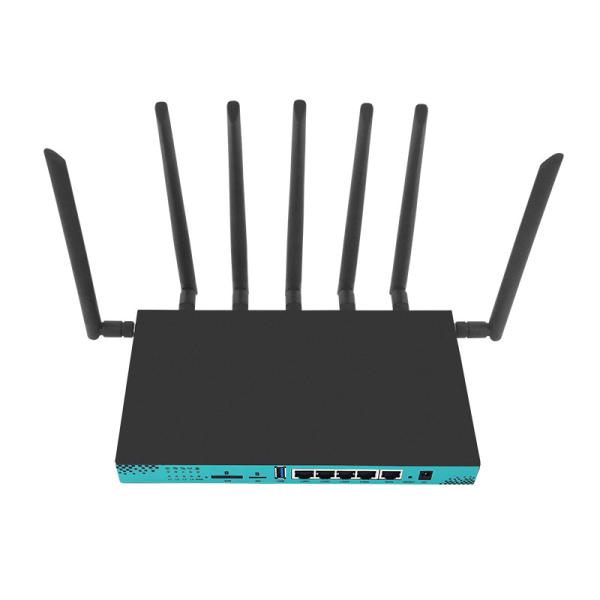

11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
11ac 1000Mbps MTK7621A 5G Wireless Modem DC 12V With Sim Card Slot
Specifications
Brand Name :
ZBT & OEM
Model Number :
WG1608
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
1pc for sample, 100pcs for bulk order
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs
Delivery Time :
For samples 5-7days；for bulk order 25-30days
Packaging Details :
1pc/Gift box, 20pcs/Carton
Chipset :
MTK7621A
Flash :
16MB
RAM :
256MB
Wi-Fi Supported Frequency :
2.4G & 5.8G
WAN Ports :
1
LAN Ports :
4
Wifi Speed :
1200Mbps
Interface :
M.2/USB3.0
Antenna :
6* 5dBi Antennas
System :
Openwrt
Description

Features

①.Support 802.11ac / 802.11a / 802.11n / 802.11g / 802.11b network protocol, the max transmission rate could be 1200Mbps(2.4G 300Mbps+ 5G 867Mbps)

②.5* 10/100/1000Mbps Auto MDI/MDIX LAN/WAN gigabit ports

③.1 USB 3.0 data interface

④.1 Micro TF Card Slot

⑤.Built-in USB3.0 MINI-PCIE interface to install 4G modules to support 3G & 4G functions.And also built-in USB3.0 M.2 interface to install 5G module to support3G& 4G&5G function.But can only choose one of two to install in side of router.

⑥.Support 11AC,dual band 2.4&5.8G.

Hardware
Main Chipset MT7621A (880MHz)
2.4G Chip set MT7603EN
5.8G Chip set MT7613AEN
RAM DDR3 256MB (MAX DDR3 512MB)
SPI FLASH 16MB (MAX 32MB)
Protocol IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac,IEEE802.11a
IEEE 802.3,IEEE 802.3u
RT Power

11n:16dBm±1dBm

11g: 16dBm±1dBm

11b: 18dBm±1dBm

11a: 18dBm±1dBm

11ac: 17dBm±1dBm
Reception Sensitivity

11N HT20 MCS7: -70dBm

11N HT40 MCS7: -68dBm

11G 54Mbps: -72dBm

11B 11Mbps: -85dBm

11A 54Mbps: -72dBm

11AC VHT20 MCS8: -65dBm
Work Channel

2.4GHz choose :1-13

5GHz choose :149,153,157,161,165
Wireless Rate Max 1200Mbps
Work Frequency 2.4GHz, 5.8GHz
Antenna 2* 5dbi high-gain dual-band antennas; 4* 5dbi high-gain 5G antennas or 2* 5dbi high-gain 4G antennas, depend on the type of optional module.
Interface

Built-in 1* USB3.0 MINI-PCIE interface, 1* USB3.0 M.2 interface, MINI-PCIE and M.2 interface can only choose one.

1 *SIM card slot

1 *USB 3.0 port

1 *Micro TF card slot

1* DC interface

1 *10/100/1000M WAN port(Auto MDI/MDIX)
4 *10/100/1000M LAN port(Auto MDI/MDIX)
4G/5G Support, but 4G module and 5G module can only choose one
LED

Power / 2.4G / 5.8G / 4G or 5G / external network

LAN1 / LAN2 / LAN3 / LAN4 / WAN
Button Reset Button
Max Power consumption < 20W
Dimension(L*W*H) Product size:240MM*136MM*25MM
Software
WAN Type PPPoE.Dynamic IP. Static IP
Work Mode Router;
DHCP Server, Client, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Firewall Security

Dos, SPI Firewall

IP Address Filter/MAC Address Filter/ Domain Filter

IP and MAC Address Binding
DDNS Support
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Band Ctrl Support
Static Router Support
System Log Support
Other Function Mac clone
NTP Synchronize
Web firmware upgrade
Others
Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Adapter DC 12V 2A
