Specifications
Brand Name :
ZBT
Model Number :
ZBT-WE826-T2
Certification :
FCC/CE
Place of Origin :
China
MOQ :
1unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000units per month
Delivery Time :
3-25days
Packaging Details :
20unit/carton
Color :
Black
RAM :
DDR2 128MB (MAX DDR2 256MB)
Flash :
16MB (MAX 32MB)
Wireless Rate :
300Mbps
Antenna :
2* 5dBi antenna or 4*5dbi external antenna (With 3G/4G)
Main Chipset :
MT7620A
Description

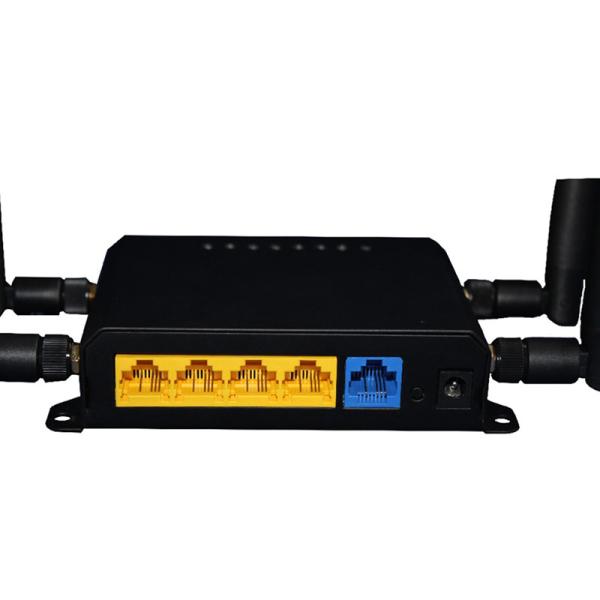

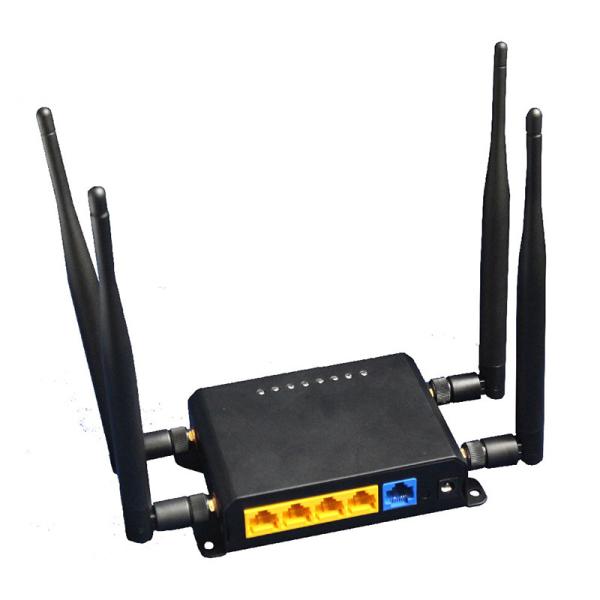

300Mbps Router LTE Wifi Router 4G Lte Wireless Router

Simple Description

The WE826-T2 uses the latest wireless solution, performs better and more function. Stable wireless performance, more functions , 2.4G 300Mbps, Also support 3G, 4G (3G, 4G PCIE module is necessary), it could also dial-up via the USB port (should mount the 3G,4G network card). Provide 1 USB2.0 interface, 1 Micro slot.

Product Feature

  • Support 802.11N/802.11G/802.11B network protocol, the max transmission rate could be 2.4G 300Mbps
  • Support 802.11.3/802.3U protocol, 5* 10/100M bps Auto MDI/MDIX
  • 1 USB 2.0 date interface
  • 1 Micro SD Card Slot
  • Support 3G/4G
  • Many kinds of encryptions to protect your data transmission;

Specification

Hardware
Main Chipset MT7620A
RAM DDR2 128MB (MAX DDR2 256MB)
SPI FLASH 16MB (MAX 32MB)
Protocol IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac, IEEE802.11a,
IEEE 802.3, IEEE 802.3u
RT Power

802.11b 18dBm±2dBm;

802.11g 15dBm±2dBm;

802.11n 15dBm±2dBm;

Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

Work Channel 2.4GHz choose: 1-13
Wireless Rate Max. 300Mbps
Work Frequency 2.4GHz
Antenna 2* 5dBi antenna or 4*5dbi external antenna (With 3G/4G)
Interface

1*PCI-E slot

1*SIM card slot

1*USB 2.0 port

1*Micro SD card slot

1*10/100/100M WAN port (Auto MDI/MDIX)
4*10/100/100M LAN port (Auto MDI/MDIX)

LED Power, USB, 2.4G, WAN, LAN1, LAN2, LAN3, LAN4
Button Reset
Max Power consumption < 12W
Others
Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing

Adapter 12V 1A
Authentication CE, FCC, RoHs
Other accessories

Power adapter, Ethernet cable

company Profile

SHENZHEN ZHIBOTONG (ZBT) Electronics Co., LTD established in 2010, located at Shenzhen, China. ZBT is a manufacturer professional in R&D and producing network equipments, products are included POE switch, Access Point, openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G wifi router, mobile router, Gpon products. ZBT also is a wifi coverage sloutions provider, provides the solution for hotel, school,hospital,enterprise,vehicle field etc.ZBT with 30 people R&D team and around 500 people in factory, 10,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, ZBT's products have exported to over 30 countries and regions.Adhere to the conception of 'High Quality, High Performance & High Satisfaction' , Each year ZBT would taken out more than 35% of the annual turnover as R&D funds to develop new products so as to satisfy clients' new coming requests.Customers' high satisfaction is ZTB's continuously pursue,high-quality&best service is ZBT's sincere promise to all clients. ZBT warmly welcome everybody joining in and build a win-win cooperation.
