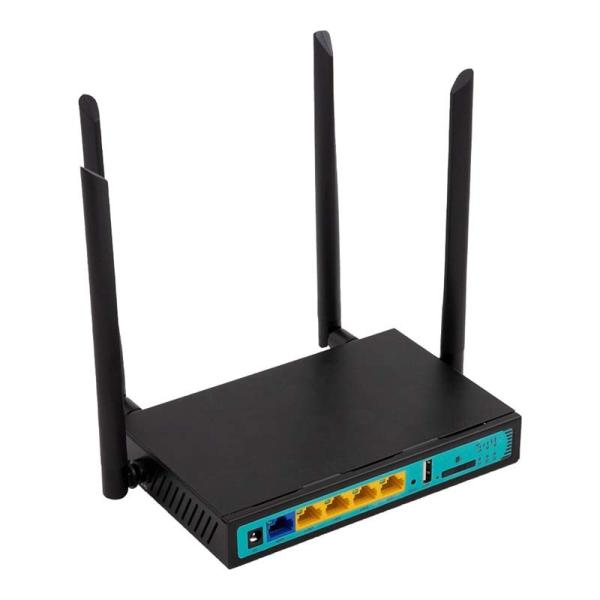

Industrial SIM Slot 4g Lte Cellular Router With Black Metal Enclosure
Industrial SIM Slot 4g Lte Cellular Router With Black Metal Enclosure
Industrial SIM Slot 4g Lte Cellular Router With Black Metal Enclosure
Industrial SIM Slot 4g Lte Cellular Router With Black Metal Enclosure
Specifications
Brand Name :
OEM/ZBT
Model Number :
WE2416
Certification :
CCC, CE, FCC, ROHS
Place of Origin :
Shenzhen
MOQ :
1
Price :
Check with Supplier
Payment Terms :
T/T, Western Union, Paypal, Wechat, Alipay
Supply Ability :
10000pcs per week
Delivery Time :
For samples: 3-5 days; For Bulk order: 25-30 days
Packaging Details :
1pcs device/1 packing box; 20pcs with packing box/1 carton
Product Feature :
Celluar WiFi Router LTE Wifi Router With Industrial SIM Slot
Chipset :
QCA9531
Flash :
16MB Flash
RAM :
128MB RAM
Wireless Rate :
2.4G, 300Mbps
Enclosure :
Black Metal Enclosure
Description

Celluar WiFi Router LTE Wifi Router 3G 4G router With Industrial SIM Slot

Product Description

ZBT-WE2416

  • QCA9531 chipset
  • 16MB Flash+128MB RAM
  • 2.4G 300Mbps wireless rate
  • 1*WAN port+4*LAN ports+1*USB port+1*TF card slot
  • 1*SIM card slot (Lock version)
  • Default version is Mini-PCIE slot, Reserved design M.2 interface for 5G module (If you need M.2 interface, please tell me in advance)
  • Preload English openwrt firmware, support flash customer firmware

Celluar WiFi Router LTE Wifi Router 3G 4G router With Industrial SIM Slot

Product Specification

Hardware
Main Chipset QCA 9531 chipset
RAM DDR2 128MB
SPI FLASH 16MB
Protocol IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a
IEEE 802.3, IEEE 802.3u
RT Power

802.11b 18dBm±2dBm;

802.11g 15dBm±2dBm;

802.11n 15dBm±2dBm;
Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER
Work Channel 2.4GHz choose :1-13
Wireless Rate Max 300Mbps
Work Frequency 2.4GHz
Antenna 4 removable antenna (With 3G or 4G module)
Interface

1 PCI-E slot

1 SIM card slot

1 USB 2.0 port

1 Micro SD card slot

1 10/100M WAN port(Auto MDI/MDIX)
4 10/100M LAN port(Auto MDI/MDIX)
LED Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button Reset/WPS
Max Power consumption < 12W
Dimension(L*W*H) 141*85*26MM
Others
Work Environments

Operating Temperature:0℃ ~ 40℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Adapter 12V 1A
Authentication

FCC & CE certifications

FAQ

Can you printing Customer logo on products?

Yes, we can printing your logo on products.

Do you provide PCBA board order only?

Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

Can you desin products as per customer's requirements?

Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

Do you....?

Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!

Celluar WiFi Router LTE Wifi Router 3G 4G router With Industrial SIM Slot

Product Application Pictuers

Antennas Choices

According to different application, maybe some customers need other kinds of antennas, the below is some antennas you can check. The first version is our original version antennas, if you need patch antennas or sucker antennas, please contact me in advance.

Industrial SIM Slot 4g Lte Cellular Router With Black Metal Enclosure

Celluar WiFi Router LTE Wifi Router 3G 4G router With Industrial SIM Slot
