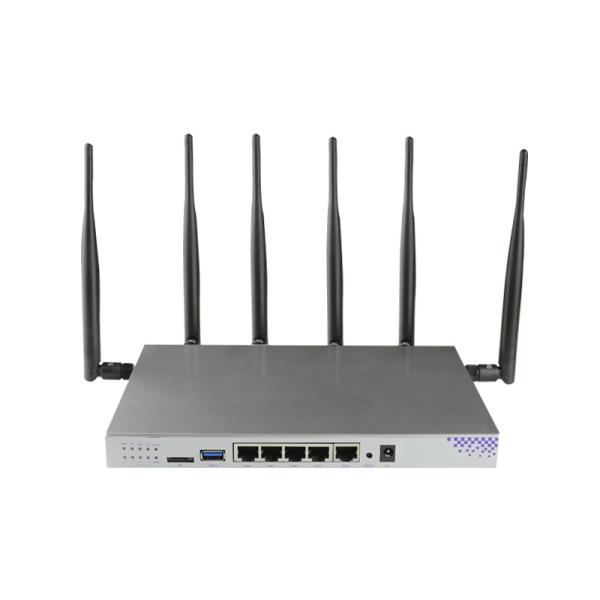

6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
6 Antennas LTE Wifi Router 1200Mbps Gigabit Dual Band 4G USB 3.0 DC 12V 2.5A
Specifications
Brand Name :
ZBT
Model Number :
ZBT-WG3526
Certification :
FCC/CE
Place of Origin :
China
MOQ :
1unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000units per month
Delivery Time :
3-25days
Packaging Details :
10units/carton
Main Chipset :
MT7621/Duabl Core /880Mhz
RAM :
DDR3 RAM 128MB(MAX 512MB)
FLASH :
SPI FLASH 16MB(MAX 32MB)
Work Frequency :
2.4GHz/5G
Antenna :
6* 5dBi Omnidirectional antennas
Adapter :
DC 12V2.5A
Description

6 Antennas 1200Mbps Gigabit Dual band 4G Wireless Router USB 3.0

Simply Description

Hardware

ZBT-WG3526 uses the latest MTK wireless solution, the MT7621, the clock frequency is as high as 880MHZ, provide 5 gigabit Auto MDI/MDIX Ethernet port, 1×USB 3.0 port ,1×Micro SD card ,1 X SATA port.

Wireless

Support IEEE802.11ac/n/g/b/a wireless protocol, max wireless rate could be 1200Mbps , 4×5Dbi high gain antennas , perform better and cover larger.

Software

The original SDK develop based on the Linux, which is SDK4.2, included the certification of the 802.11AC,IPv6 and Win8. Also provide the driver of the VPN, audio and the touch screen. The L7 Qos work perfectly with the HNAT/HQos , offer the Auto QoS for the Internet routers and SMB routers.

Product Feature

  • Latest Dual core network chipset MT7621,Clock Frequency get 880Mhz
  • Provide 5 gigabit Auto MDI/MDIX Ethernet port
  • 1 USB 3.0 port+1 SATA port
  • Provide 1 Micro SD Card slot+1 mini PCIE slot+1 SIM card slot
  • support IEEE IEEE802.11AC/N/G/B/A wireless protocol
  • The transmission rate get to 1200Mbps

Specification

Hardware Specification
Main Chipset MT7621/Dual Core/880Mhz
RAM DDR3 RAM 512MB (MAX512MB)
FLASH SPI FLASH 16MB (MAX32MB)
Protocol Standard

IEEE 802.11ac,IEEE 802.11a

IEEE 802.11n,IEEE 802.11g,IEEE 802.11b；
IEEE 802.3,IEEE 802.3u；
Wireless Rate

5G : 900Mbps

2.4G: 300Mbps
Work Frequency 2.4GHz/5.8GHz
Antenna 4 * 5dBi high gain antenna or 6 external antenna (Adding 3G or 4G module)
Interface

1*10/100M/1000M WAN Port, Auto MDI/MDIX
4*10/100M/1000M LAN Port, Auto MDI/MDIX

1*USB 3.0 port

1*Mini-PCIE slot

1*SATA port

1 SIM card slot
LED PWR.SYS.USB.2G.5G.WAN, LAN1-4
Button 1*RESET
Power consumption < 24W
Adapter DC 12V 2A
Others
Work Environments

Operating Temperature:-10℃ ~ 60℃；
Storage Temperature:-40℃~ 70℃；

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Authentication FCC, CE, ROHS
