QCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog Function
QCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog Function
QCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog Function
QCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog Function
QCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog Function
QCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog Function
QCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog Function
QCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog Function
Specifications
Brand Name :
ZBT
Model Number :
ZBT-WE826-Q
Certification :
FCC/CE
Place of Origin :
China
MOQ :
1unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000units per month
Delivery Time :
3-25days
Packaging Details :
20units/carton
Main Chipset :
QCA 9531 chipset
RAM :
DDR2 128MB
SPI FLASH :
16MB
Work Channel :
2.4GHz choose ：1-13
Wireless Rate :
Max 300Mbps
Work Frequency :
2.4GHz
Antenna :
4 removable antenna (With 3G or 4G module)
Button :
Reset/WPS
Max Power consumption :
< 12W
Dimension（L*W*H） :
141*85*26MM
Description

QCA9531 Chipset Wireless Router 300Mbps 2.4G 4G Lte With Watchdog Function

Simply Description

The WE826-Q uses the latest wireless solution, performance is better and more functions. Stable wireless signal, stronger scalability, the Max transmission rate can up to 1200Mbps (the 11ac PCIE mode is necessary). 2.4GHz up to 300Mbps, support 3G,4G (3G,4G PCIE module is necessary), it could also dial-up via the USB port (should mount the 3G,4G network card and also need you have your own firmware to support that), also support watchdog feature. Provide 1 USB2.0 interface, 1 Micro SD slot .

Product Feature

  • Support 802.11n/802.11g/802.11b network protocol, support 802.3/802.11u protocol, 5* 10/100Mbps Auto MDI/MDIX
  • 1 USB 2.0 interface
  • 1 Micro SD Card Slot
  • Support 3G/4G
  • Support watchdog feature
  • Many kinds of way to protect your data transmission

Product Specification

Band&Frequency
LTE

FDD LTE: B1/B3/B4/B5/B7/B8/B28

TDD LTE: B40
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
Hardware
Main Chipset QCA 9531 chipset
RAM DDR2 128MB
SPI FLASH 16MB
Protocol IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a
IEEE 802.3, IEEE 802.3u
RT Power

802.11b 18dBm±2dBm;

802.11g 15dBm±2dBm;

802.11n 15dBm±2dBm;
Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER
Work Channel 2.4GHz choose :1-13
Wireless Rate Max 300Mbps
Work Frequency 2.4GHz
Antenna 4 removable antenna (With 3G or 4G module)
Interface

1 PCI-E slot

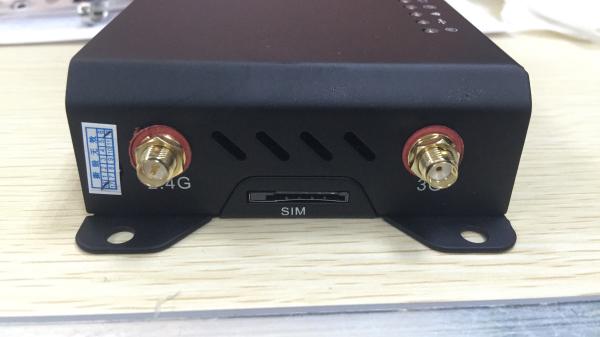

1 SIM card slot

1 USB 2.0 port

1 Micro SD card slot

1 10/100M WAN port(Auto MDI/MDIX)
4 10/100M LAN port(Auto MDI/MDIX)
LED Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
Button Reset/WPS
Max Power consumption < 12W
Dimension(L*W*H) 141*85*26MM
Others
Work Environments

Operating Temperature:-20℃ ~ 70℃;
Storage Temperature:-40℃~ 70℃;

Operating Humidity:10%~90% non-condensing;
Storage Humidity:10%~90% non-condensing.
Adapter 12V 1A
Authentication FCC & CE certifications

QCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog FunctionQCA9531 Chipset Wireless Internet Router 300Mbps 2.4G 4G Lte With Watchdog Function
