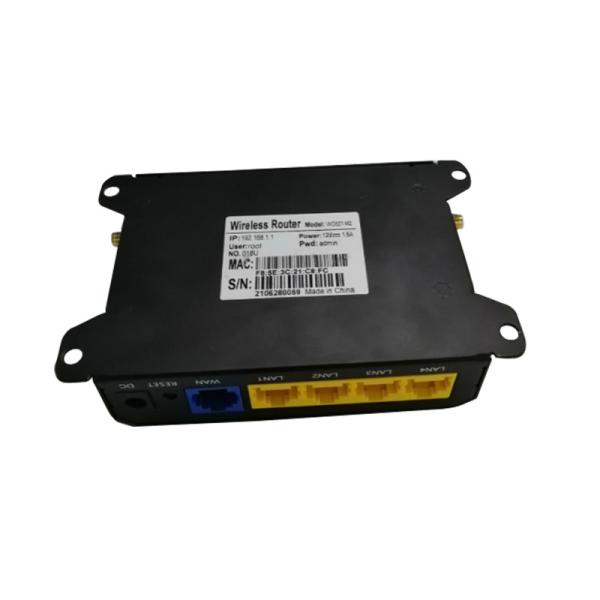

MT7621DA 12V 2A 5G Wireless Router 5dBi Openwrt With Gigabit Ports
MT7621DA 12V 2A 5G Wireless Router 5dBi Openwrt With Gigabit Ports
MT7621DA 12V 2A 5G Wireless Router 5dBi Openwrt With Gigabit Ports
MT7621DA 12V 2A 5G Wireless Router 5dBi Openwrt With Gigabit Ports
Specifications
Brand Name :
OEM/ZBT
Model Number :
WG827
Certification :
CE,FCC, ROHS
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
8000/Month
Delivery Time :
3-5 working days for sample
Packaging Details :
Paper packing
Main Chipset :
MT7621DA
RAM :
128MB
SPI FLASH :
16MB
Wireless Speed :
2.4G, 300Mbps
Color :
Black
System :
Openwrt
Interface :
1 Gigabit WAN+4 Gigabit LAN+1 Drawer SIM Slot
Antenna :
6* 5dBi external antennas(2*2.4G,4*5G SIM)
Warranty :
1 Year
Product Name :
5G CPE Router, 5G Wireless Router With Gigabit Ports MTK7621 Chipset
Description

5G CPE Router, 5G Wireless Router With Gigabit Ports MTK7621 Chipset

WG827 is used in the latest Mediatek MT7621DA wireless solution. Stable wireless performance. 2.4G wireless rate is 300Mbps. 5 Gigabit Ports, including 1 WAN port+4 LAN ports.

Production Feature

  1. Support 802.11N/802.11G/802.11B network protocol, the max transmission rate could be 300Mbps.
  2. 5*10/100/1000 Mbps Ports (1 WAN port+4 Lan ports)
  3. Support 4G/5G function (It is need install 4G/5G module in side of router)
  4. Built in M.2 interface to install 4G/5G module.
  5. Support WPA, WPA2 encryption to protect your data transmission.
  6. Small size 5G wifi router

Product Specification

Hardware
Main Chipset MT7621DA
RAM DDR3:128MB (MAX :128MB)
SPI FLASH 16MB (MAX:32MB)
Protocol IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE 802.3u
RT Power

802.11b 18dBm±2dBm;

802.11g 15dBm±2dBm;

802.11n 15dBm±2dBm;
Reception Sensitivity

802.11b: -83dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER
Work Channel 2.4GHz choose :1-13
Wireless Rate Max 300Mbps
Work Frequency 2.4GHz
Antenna 6*detachable 5dBi antenna
Interface

1*M.2 slot (Default),reserve PCI-E interface design.

1* Standard SIM card slot

1*10/100/1000M WAN port(Auto MDI/MDIX)
4*10/100/1000M LAN ports(Auto MDI/MDIX)
LED 1*LED state indication ( 1).Boot:Red.2).Finish boot no connected internet:Green 3).Finished boot and connected internet:Blue)
Button Reset
Max Power consumption < 12W
Dimension(L*W*H) 141*85*26MM
Others
Work Environments

Operating Temperature:0℃ ~ 40℃；
Storage Temperature:-40℃~ 70℃；

Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Adapter 12V 2A
Authentication CE, FCC, RoHs
Other accessories

Power adapter

MT7621DA 12V 2A 5G Wireless Router 5dBi Openwrt With Gigabit PortsMT7621DA 12V 2A 5G Wireless Router 5dBi Openwrt With Gigabit Ports
