COG12864-16 128x64 Dots FSTN Transflective LCD Module with Wide Temperature Operation for Industrial Display
COG12864-16 128x64 Dots FSTN Transflective LCD Module with Wide Temperature Operation for Industrial Display
Specifications
Brand Name :
YZY
Model Number :
YMG12864FG-X06
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
$2~.2.99/pieces
Payment Terms :
T/T
Supply Ability :
10000 pieces
Delivery Time :
14-60 days
Description
COG12864-16 128x64 Dots LCD Module FSTN Transflective Industrial Display Screen
This industrial grade COG12864-16 128x64 dot matrix LCD module adopts FSTN positive transflective structure and COG packaging technology, driven by ST7565R driver IC. It supports 3.0V working voltage, white LED backlight, 6 o'clock viewing direction and wide temperature operation, with low power consumption, high stability and RoHS compliance. Widely used in industrial control, measuring instruments, smart equipment, automotive electronics and embedded display systems with high reliability requirements.
Product Specifications
Display Type FSTN Positive Transflective Monochrome LCD
Resolution 128 x 64 Dots
Module Model COG12864-16
Driver IC ST7565R
Drive Mode 1/64 Duty, 1/9 Bias
Operating Voltage VDD=3.0V, VLCD=9.3V
Viewing Direction 6 O'Clock
Backlight White LED, 2.9-3.3V, 90mA
Operating Temp -20℃ ~ +70℃
Storage Temp -30℃ ~ +80℃
Connection Type COG (Chip On Glass)
Dimension 76.0*48.0*5.0 mm
Certification RoHS Compliant
Tolerance Unspecified Tolerance ±0.2mm
Product Features
  • 128x64 standard dot matrix, FSTN positive transflective display effect
  • COG ultra-thin structure, small outline, easy for embedded installation
  • ST7565R dedicated driver, stable drive and long service life
  • White LED backlight, uniform brightness, low power consumption
  • Wide temperature range, suitable for harsh industrial environments
  • RoHS compliant, environmentally friendly, meets global export standards
  • 32PIN definition, compatible with mainstream industrial control interfaces
Applications
  • Industrial control equipment and operation panels
  • Electronic measuring instruments and meters
  • Smart home and portable electronic devices
  • Automotive electronics and vehicle-mounted displays
  • Medical auxiliary instruments and communication equipment
  • Embedded system display modules and industrial terminals

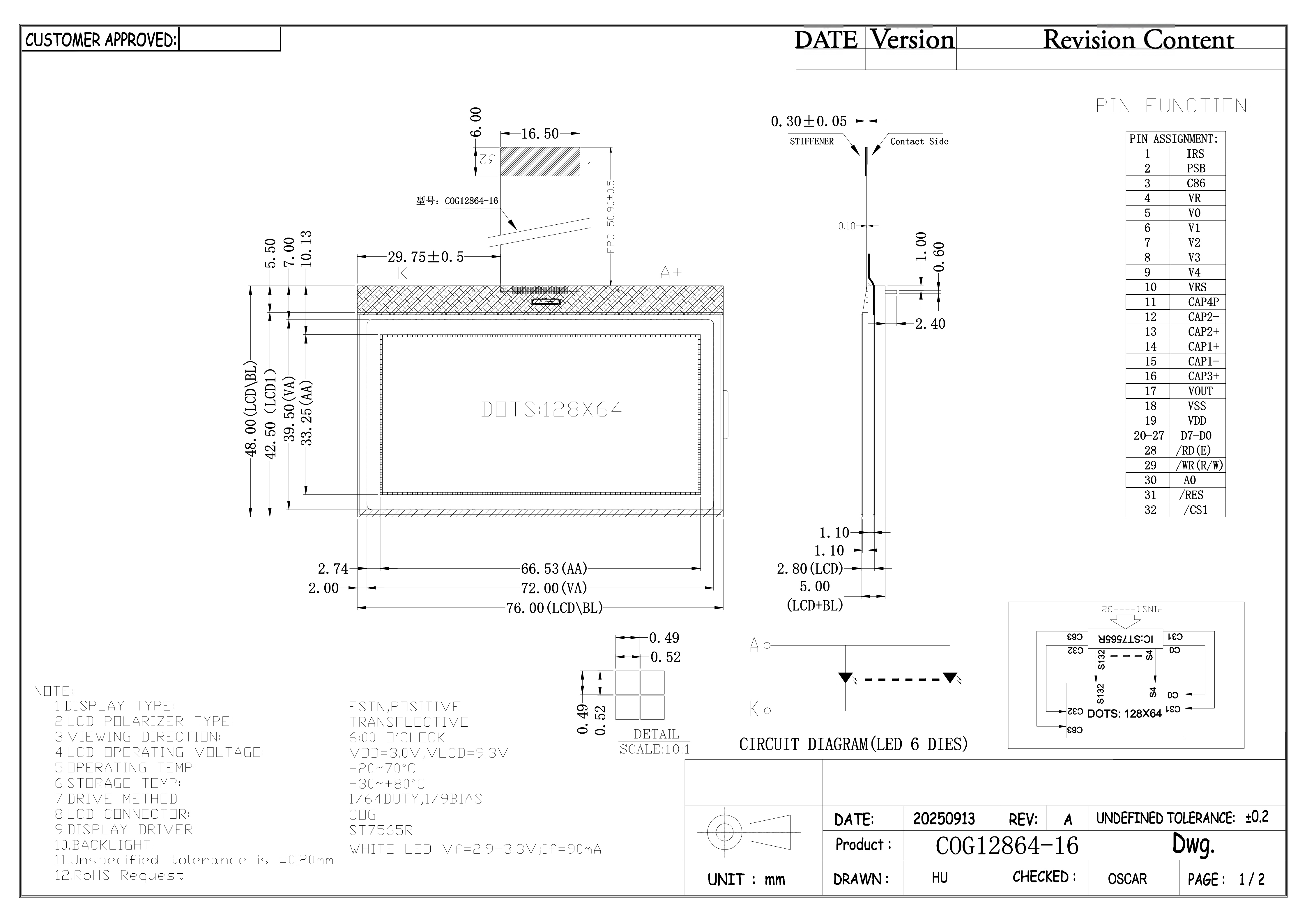

Dimension & Drawing
COG12864-16 128x64 Dots FSTN Transflective LCD Module with Wide Temperature Operation for Industrial Display
Product Application
COG12864-16 128x64 Dots FSTN Transflective LCD Module with Wide Temperature Operation for Industrial Display
Shipping & Delivery
COG12864-16 128x64 Dots FSTN Transflective LCD Module with Wide Temperature Operation for Industrial Display
