COG12864-18 128x64 DOTS Industrial Monochrome COG LCD Display
COG12864-18 128x64 DOTS Industrial Monochrome COG LCD Display
Specifications
Brand Name :
YZY
Model Number :
YMG12864FG-X07
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
$1.99~.2.99/pieces
Payment Terms :
T/T
Supply Ability :
10000 pieces
Delivery Time :
14-60 days
Description
COG12864-18 128x64 Dot Matrix LCD Module
This industrial grade COG12864-18 128x64 dot matrix LCD display module adopts FSTN positive transflective display structure and COG+BL integrated packaging design, driven by ST7567A dedicated driver chip. It features 3.3V operating voltage, white LED backlight, 6 o'clock viewing direction, wide temperature working range and ultra-low power consumption, with stable performance, RoHS compliance and compact size, widely applied in industrial control, measuring instruments, portable electronics and embedded display systems with high reliability demands.
Product Specifications
Display Type FSTN Positive Transflective Monochrome LCD
Resolution 128 x 64 Dots
Module Model COG12864-18
Driver IC ST7567A
Drive Mode 1/64 Duty, 1/9 Bias
Operating Voltage VDD=3.3V, VLCD=8.5V
Viewing Direction 6 O'Clock
Backlight White LED, Vf=3.0±0.2V, If=45mA
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Connection Type COG + BL, 14PIN Interface
Outline Dimension 43.7*33.8*3.1(mm)
Unspecified Tolerance ±0.2mm
Certification RoHS Compliant
Product Features
  • Standard 128x64 dot matrix, FSTN positive transflective clear display effect
  • COG ultra-thin integrated design, small outline, easy for embedded installation
  • ST7567A special driver, strong anti-interference and long service life
  • White LED backlight with uniform brightness, low power consumption and high stability
  • Wide temperature adaptation, suitable for harsh industrial application environments
  • 14PIN standard interface, simple circuit connection and strong compatibility
  • RoHS environmentally friendly certification, in line with global export standards
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Electronic measuring instruments, meters and testing equipment
  • Portable electronic products and small smart devices
  • Automotive electronics and vehicle-mounted auxiliary display
  • Medical testing instruments and communication terminal equipment
  • Embedded system modules and industrial intelligent terminals

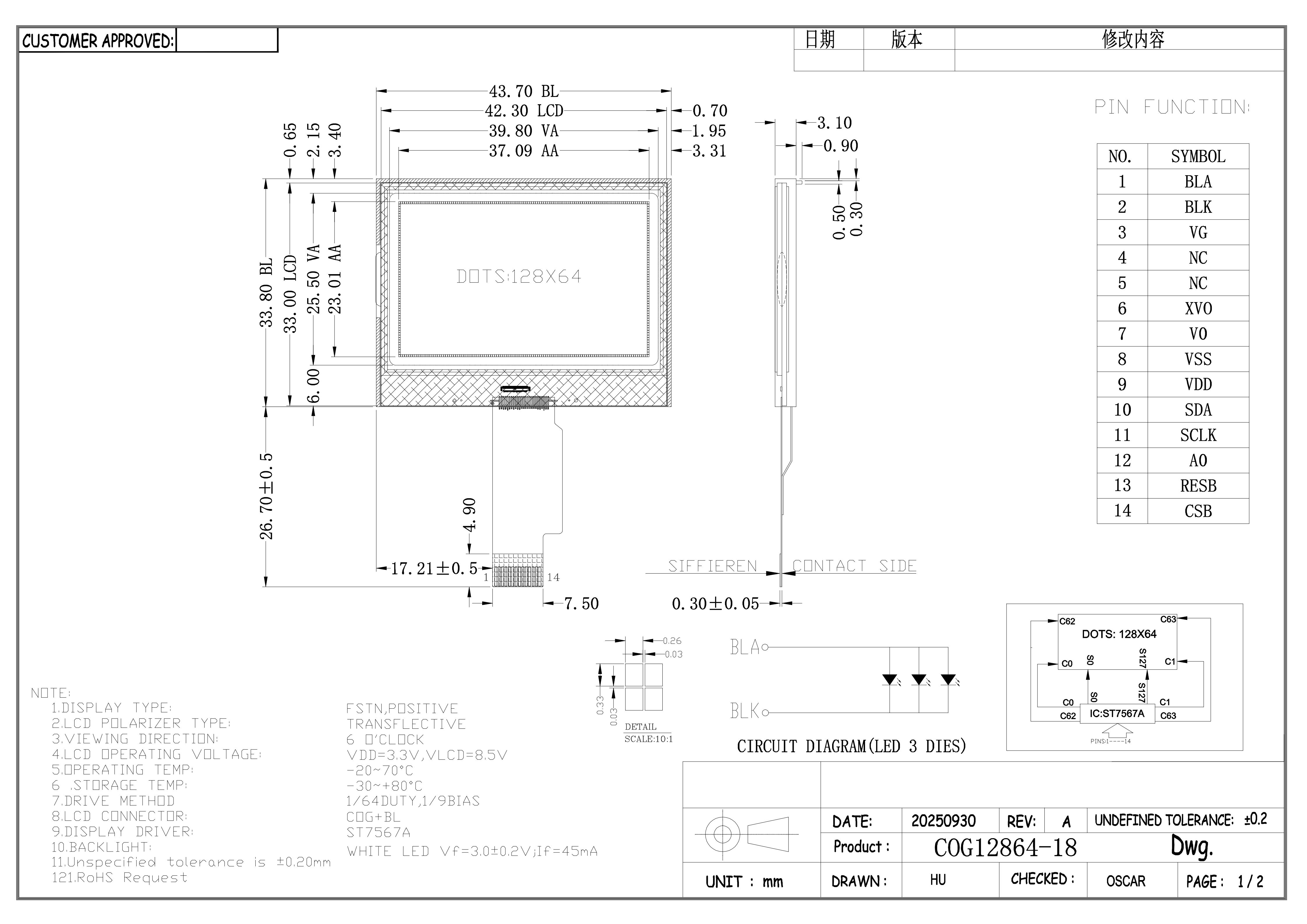

Dimension Drawing
COG12864-18 128x64 DOTS Industrial Monochrome COG LCD Display
