COG12864-21 128x64 FSTN Positive Transmissive LCD Module ST7567 Driver
COG12864-21 128x64 FSTN Positive Transmissive LCD Module ST7567 Driver
Specifications
Brand Name :
YZY
Model Number :
YMG12864FG-X08
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
$1.46~1.86/pieces
Payment Terms :
T/T
Supply Ability :
10000 pieces
Delivery Time :
14-60 days
Description
COG12864-21 128x64 FSTN Positive Transmissive LCD Module ST7567 Driver
This industrial grade COG12864-21 128x64 dot matrix LCD display module adopts FSTN positive transmissive structure and COG+BL integrated packaging, driven by ST7567 professional driver chip. It supports 3.0V operating voltage, white LED backlight, 6 o'clock viewing direction and wide temperature range, with ultra-low power consumption, stable performance, RoHS compliance and compact outline, widely used in industrial control, measuring instruments, portable electronics, smart devices and embedded display systems with high reliability requirements.
Product Specifications
Display Type FSTN Positive Transmissive Monochrome LCD
Resolution 128 x 64 Dots
Module Model COG12864-21
Driver IC ST7567
Drive Mode 1/64 Duty, 1/9 Bias
Operating Voltage VDD=3.0V, VLCD=8.5V
Viewing Direction 6 O'Clock
Backlight White LED, Vf=2.8-3.2V, If=30mA
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Connection Type COG + BL, 10PIN Interface
Outline Dimension 49.0*39.6*10.5(mm)
Unspecified Tolerance ±0.2mm
Certification RoHS Compliant
Product Features
  • Standard 128x64 dot matrix, FSTN positive transmissive high-definition display effect
  • COG ultra-thin integrated design, compact size, easy for embedded installation and application
  • ST7567 special driver chip, strong anti-interference ability and long service life
  • White LED backlight with uniform brightness, low power consumption and high stability
  • Wide temperature adaptation, suitable for various harsh industrial application environments
  • 10PIN standard interface, simple circuit connection and strong system compatibility
  • RoHS environmentally friendly certification, fully in line with global market export standards
Product Applications
  • Industrial control equipment and intelligent operation panels
  • Electronic measuring instruments, meters and precision testing equipment
  • Portable electronic products and small intelligent electronic devices
  • Automotive electronics and vehicle-mounted auxiliary display modules
  • Medical testing instruments and communication terminal equipment
  • Embedded system modules and industrial intelligent control terminals

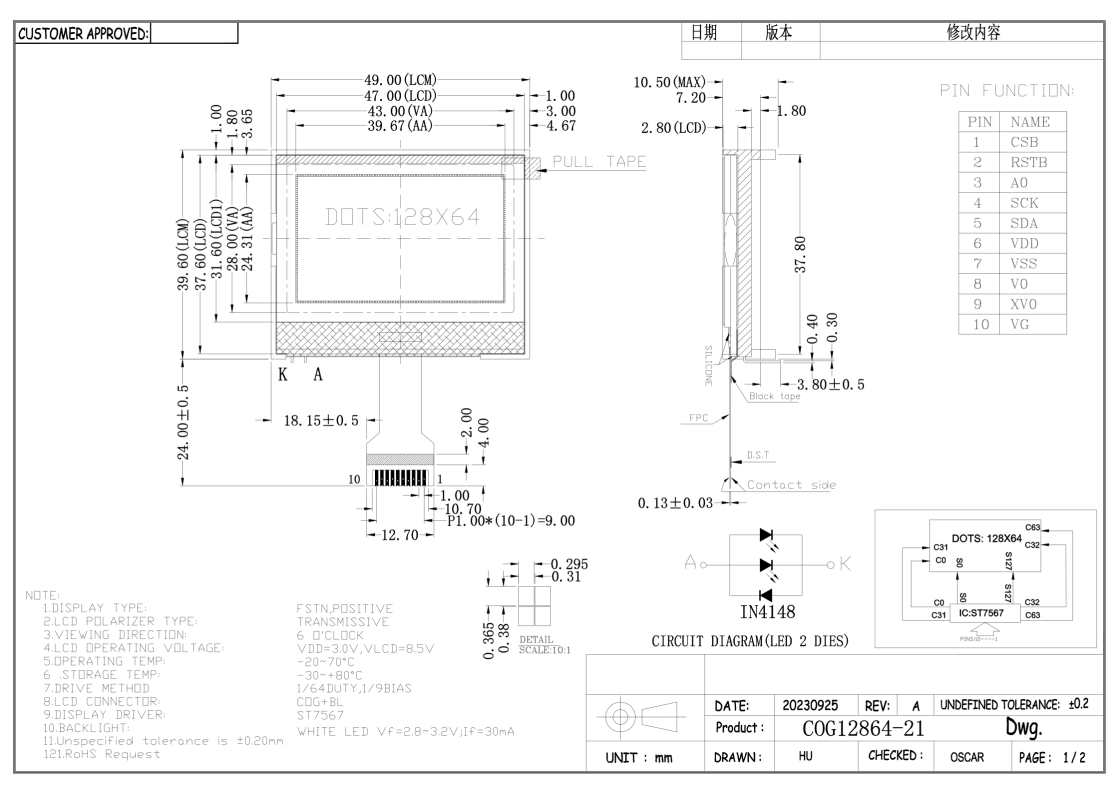

Dimension Drawing
COG12864-21 128x64 FSTN Positive Transmissive LCD Module ST7567 Driver
Product Application
COG12864-21 128x64 FSTN Positive Transmissive LCD Module ST7567 Driver
Shipping and Delivery
COG12864-21 128x64 FSTN Positive Transmissive LCD Module ST7567 Driver
