MIPI DSI Display Driver Board With HDMI 1.4 Input / 12V Power / 5V USB Interface
MIPI DSI Display Driver Board With HDMI 1.4 Input / 12V Power / 5V USB Interface
MIPI DSI Display Driver Board With HDMI 1.4 Input / 12V Power / 5V USB Interface
MIPI DSI Display Driver Board With HDMI 1.4 Input / 12V Power / 5V USB Interface
Specifications
Brand Name :
YZY
Model Number :
YZY_H2M8118_V2.0
Certification :
RoHS/CE/CB
Place of Origin :
Guangdong, China
MOQ :
500
Price :
10.06-13.65/pc
Payment Terms :
,T/T,D/P,D/A,Western Union
Supply Ability :
5000/month
Delivery Time :
14-30days
Packaging Details :
30pcs/box
Description
MIPI DSI Display Driver Board with HDMI 1.4 Input, 12V Power & 5V USB Interface
800*1280 Resolution -20~70°C Operating MIPI 31 PINHigh Compatibility(Windows, Android, Raspberry Pi)
Product Features

The H2M8118_V2.0 is a multi-functional LCD monitor driver board from Shenzhen Yingzhanying Technology Co., Ltd., supporting MIPI screen resolutions ranging from 480×480 to 1200×1920 and a default maximum backlight current of 180mA. It features 1 HDMI 1.4 input (via CN3 standard HDMI interface) and 1 MIPI DSI output (FPC1, 0.5mm-40Pin) that supports 1~4 lanes with a maximum data rate of 1.5Gb/s per lane, along with display scaling functionality. For user control, it is equipped with a CN5 1.25mm-8Pin key interface (allowing adjustment of backlight current, contrast, color temperature, etc.) with keys including MENU (confirm), EXIT, LEFT (shift down/decrease), RIGHT (shift up/increase), and POWER, plus LEDG (green) and LEDR (red) indicator lights. For touch functionality, it has an FPC2 0.5mm-6Pin IIC touch interface (default non-functional) that supports touch solutions like GT911, CST830, and FT6336.Power options include 12V DC input (via CN1, 2.0mm-4Pin connector) and 5V&USB input (via CN4, standard 16Pin Type-C connector). Operating within a working temperature range of 0℃~+40℃ (storage temperature: -10℃~+50℃) and a relative humidity of ≤80% (non-condensing), it requires attention to avoiding strong static electricity and correct connection of wires before power-on. With its integrated input/output interfaces, adjustable display parameters, and compatible touch solutions, the H2M8118_V2.0 serves as a practical and versatile solution for various LCD monitor application scenarios.

Brand Name YZY Driver board
Place of Origin
 Guangdong, China
Type HDMI-to-MIPI Interface LCD Driver Board Item No. H2M8118_V2.0
Interface HDMI+MIPI Outline Dimensions 65mm *45mm
Operating Temp. 0~+40 °C Storage Temp. -10~+50°C
Highlight MIPI Interface LCD Driver Board The minimum resolution is 480*480, and the maximum is 1200*1920.

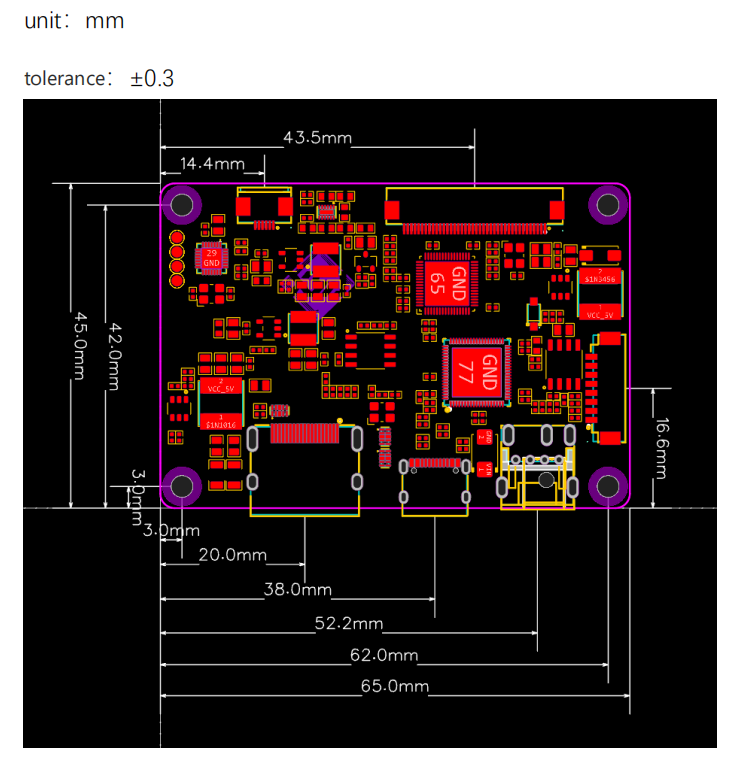

Technical Drawing

MIPI DSI Display Driver Board With HDMI 1.4 Input / 12V Power / 5V USB Interface

LCD Display LVDS Interface PIN Definition
PIN Signal Description
1-2 LED+ 背光灯条正极
3-4 V5N(VNQ) +5N(VNQ)
5-7 V5N(VNQ) -5N(VNQ)
8 NC
9-10 LED- 背光灯条负极
11 GND Ground
12-15 NC
16 GND Ground
17-18 NC
19 GND Ground
20 MPLDP Positive MIPI differential Data 3
21 MPLDN Negative MIPI differential Data 3
22 GND Ground
23 MPLDP Positive MIPI differential Data 2
24 MPLDN Negative MIPI differential Data 2
25 GND Ground
26 MPLDP Positive MIPI differential Clock
27 MPLDN Negative MIPI differential Clock
28 GND Ground
29 MPLDP Positive MIPI differential Data 1
30 MPLDN Negative MIPI differential Data 1
31 GND Ground
32 MPLDP Positive MIPI differential Data 0
33 MPLDN Negative MIPI differential Data 0
34 GND Ground
35 NC
36 NC
37 RESET Panel Reset pin
38 GND Ground
39 VDD Power (3.3V/3.3VL, 默认3.3V)
40 NC
Note: If the interface definition is different, the red wire sequence can be adjusted to facilitate the connection of the flat cable.

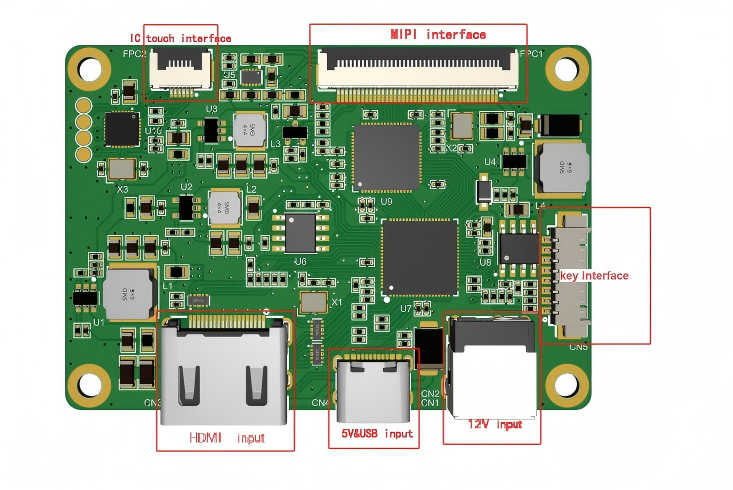

Product Picture

The H2M8118_V2.0 from Shenzhen Yingzhanying Technology is a multi-functional LCD monitor driver board, featuring HDMI 1.4 input (CN3), MIPI DSI output (FPC1, 0.5mm-40Pin, 1~4 lanes up to 1.5Gb/s/lane) and IIC touch interface (FPC2, supports GT911/CST830/FT6336). It works with MIPI screens (480×480 to 1200×1920), allows CN5 key adjustment of backlight (max 180mA), contrast and color temperature, and has dual power options (12V CN1, 5V&USB CN4). Operating at 0℃~+40℃, it’s a practical solution for LCD applications.


MIPI DSI Display Driver Board With HDMI 1.4 Input / 12V Power / 5V USB Interface

Customization Options

The MIPI/HDMI Driver Board offers multiple customization options to meet diverse application requirements:

Logo & Silk Printing: Custom branding and markings on the board.

Board Structure: Size, dimensions, and interface layout can be adjusted to fit your system.

Interface Definition & Quantity: Interfaces can be modified or added, such as including VGA or other connectors.

Resolution & Performance: Higher resolutions and frame rates can be achieved by selecting an appropriate driver IC.
