10.1-inch LVDS LCD Driver Board with 5V Power HDMI Signal Multi-point Capacitive Touch
1024*600 Resolution -20~70°C Operating LVDS 40 PINHigh compatibility(Windows, Android, Raspberry Pi)
Product Features
The YB101WSVL-P01 is a 10.1-inch LCD monitor driver board from Shenzhen Yingzhanying Technology Co.,Ltd, supporting 1024×600 resolution. It features HDMI signal input (via CN1 interface) and multi-point capacitive touch—with J4 6Pin FPC touch interface and J5 Type-C USB for touch signal transmission. Powered by DC 5V (through J8608 Type-C connector) and equipped with a J114 0.5mm 40Pin LVDS display interface for stable image output, it also supports audio functions including a J32 3.5mm headphone jack and J14/J15 speaker connectors (each supporting up to 2.6W, with speaker output requiring a headphone driver). With a standby power consumption of <0.2W, it integrates practicality, functionality and efficiency in a compact solution.
Brand Name YZY Driver board
Place of Origin
 Guangdong, China
Type 10-inch LVDS Interface LCD Driver Board Item No. YB101WSVL-P01
Interface HDMI+RGB Outline Dimensions 235*159.98mm
Operating Temp. -20 ~ +70 °C Expand Button panel speaker
Highlight LVDS 40PIN Industrial Control Specification High Compatibility Driver Board

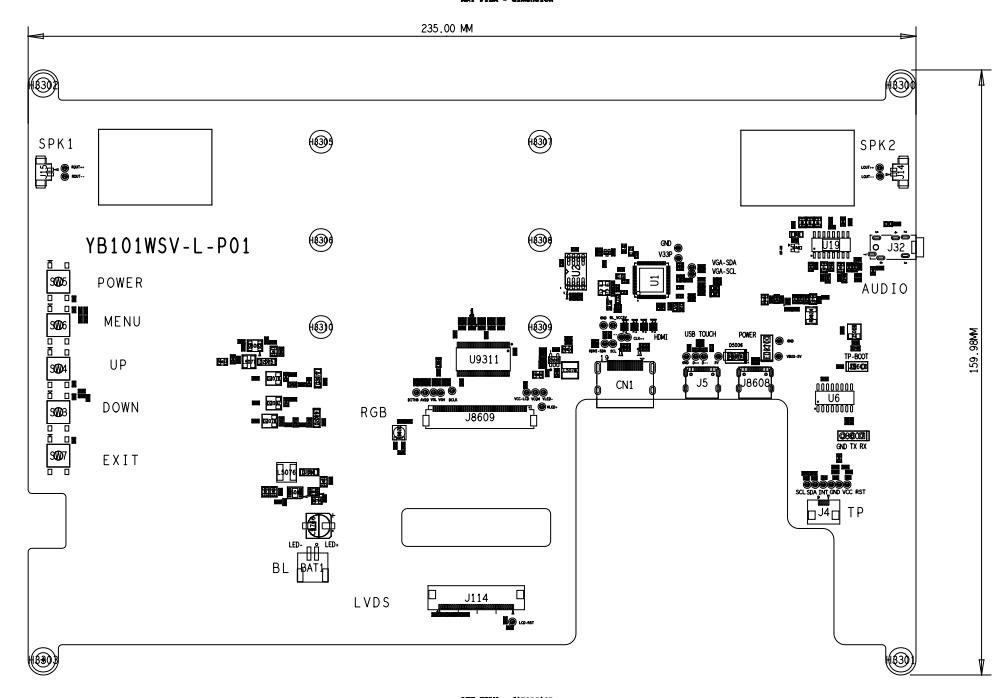

Technical Drawing

10.1 Inch LVDS LCD Driver Board With 5V Power HDMI Signal Multi Point Capacitive Touch

LCD Display RGB Interface PIN Definition
PIN Signal Description
1 VCOM Common Voltage
2-3 VDD Power Voltage for digital circuit
4 NC No connection
5 RESET Global reset pin,Active low to enter reset state.Suggest to connecting with an RC circuit for stability.Normal pull high.(R=10K ohm,C=0.1uF) Note:If RC is not added,users must follow rule:T25=50ms to keep low power.
6 STBYB Standby mode,Normal pulled high STBYB=1:normal operation; STBYB=0,timing controller,source driver will turn off,all output are High-Z.
7 GND Ground
8 RXN0- -LVDS differential data input
9 RXN0+ +LVDS differential data input
10 GND Ground
11 RXN1- -LVDS differential data input
12 RXN1+ +LVDS differential data input
13 GND Ground
14 RXN2- -LVDS differential data input
15 RXN2+ +LVDS differential data input
16 GND Ground
17 RXCLKN- -LVDS differential clock input
18 RXCLKN+ +LVDS differential clock input
19 GND Ground
20 RXN3- -LVDS differential data input
21 RXN3+ +LVDS differential data input
22 GND Ground
23-24 NC No connection
25 GND Ground
26-27 NC No connection
28 SELB 6bit/8bit mode select(Note 1)
29 AVDD Power for Analog Circuit
30 GND Ground
31-32 LED- LED Cathode
33 L/R Horizontal inversion(Note 2)
34 U/D Vertical inversion(Note 2)
35 VGL Gate OFF Voltage
36-37 NC No connection
38 VGH Gate ON Voltage
39-40 LED+ LED Anode
35 NC
36 GND Power Ground
37 NC
38 NC
39 NC
40 NC

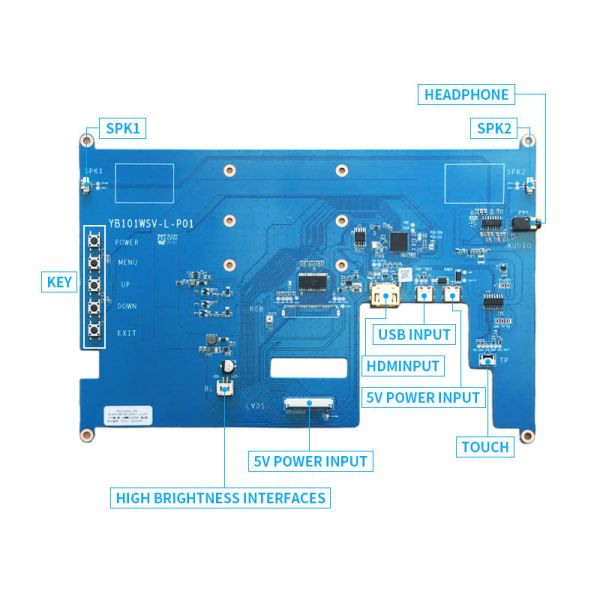

Product Picture

The YB101WSVL-P01 LCD Monitor Driver Board from Shenzhen Yingzhanying Technology is a compact, high-performance solution with HDMI input, MIPI DSI output, multi-point capacitive touch via I2C, dual power options (12V DC & 5V USB), and audio output, designed for reliable LCD display control in industrial and commercial applications.

10.1 Inch LVDS LCD Driver Board With 5V Power HDMI Signal Multi Point Capacitive Touch

Customization Options

The LVDS/HDMI Driver Board offers multiple customization options to meet diverse application requirements:

Logo & Silk Printing: Custom branding and markings on the board.

Board Structure: Size, dimensions, and interface layout can be adjusted to fit your system.

Interface Definition & Quantity: Interfaces can be modified or added, such as including VGA or other connectors.

Resolution & Performance: Higher resolutions and frame rates can be achieved by selecting an appropriate driver IC.
