Industrial HDMI Driver Board 30 Pin LCD Driver Board 1920×1200 60Hz Resolution
Industrial HDMI Driver Board 30 Pin LCD Driver Board 1920×1200 60Hz Resolution
Industrial HDMI Driver Board 30 Pin LCD Driver Board 1920×1200 60Hz Resolution
Industrial HDMI Driver Board 30 Pin LCD Driver Board 1920×1200 60Hz Resolution
Industrial HDMI Driver Board 30 Pin LCD Driver Board 1920×1200 60Hz Resolution
Industrial HDMI Driver Board 30 Pin LCD Driver Board 1920×1200 60Hz Resolution
Specifications
Brand Name :
YZY
Model Number :
H2E25BE_E_V3.0
Place of Origin :
China
MOQ :
500
Price :
9.99~10.99USD
Payment Terms :
T/T,L/C,D/A,D/P
Supply Ability :
500k/Month
Delivery Time :
2-4weeks
Packaging Details :
100pcs/box
Description
Industrial HDMI to EDP 30Pin Driver Board Supports Up to Full HD Resolution
UP to 1920*1200 Resolution -20~80°C Operating EDP 30PINHigh compatibility(Windows, Android, Raspberry Pi)
Product Features


The H2E25BE_E_V3.0 is a display driver board solution featuring 1 HDMI input and a 2-lane eDP output, supporting up to 1920×1200@60Hz. It supports 3.5mm headphone output and 3W dual-channel audio amplifier output. The board operates with a 12V power input and has a standby power consumption of <0.2W.
Product EDP HDMI Board Module Number H2E25BE_E_V3.0
Resolution Up to 1920*1200 Frame Rate 60HZ
Interface HDMI+DC Outline Dimensions 72.0*52.3mm
Operating Temp. -20 ~ +85 °C Touch USB External Touch
Storage Temp. -40 ~ +85 °C Expand Button panel speaker
Highlight Small EDP 30PIN Industrial Control Specification High Compatibility Driver Board

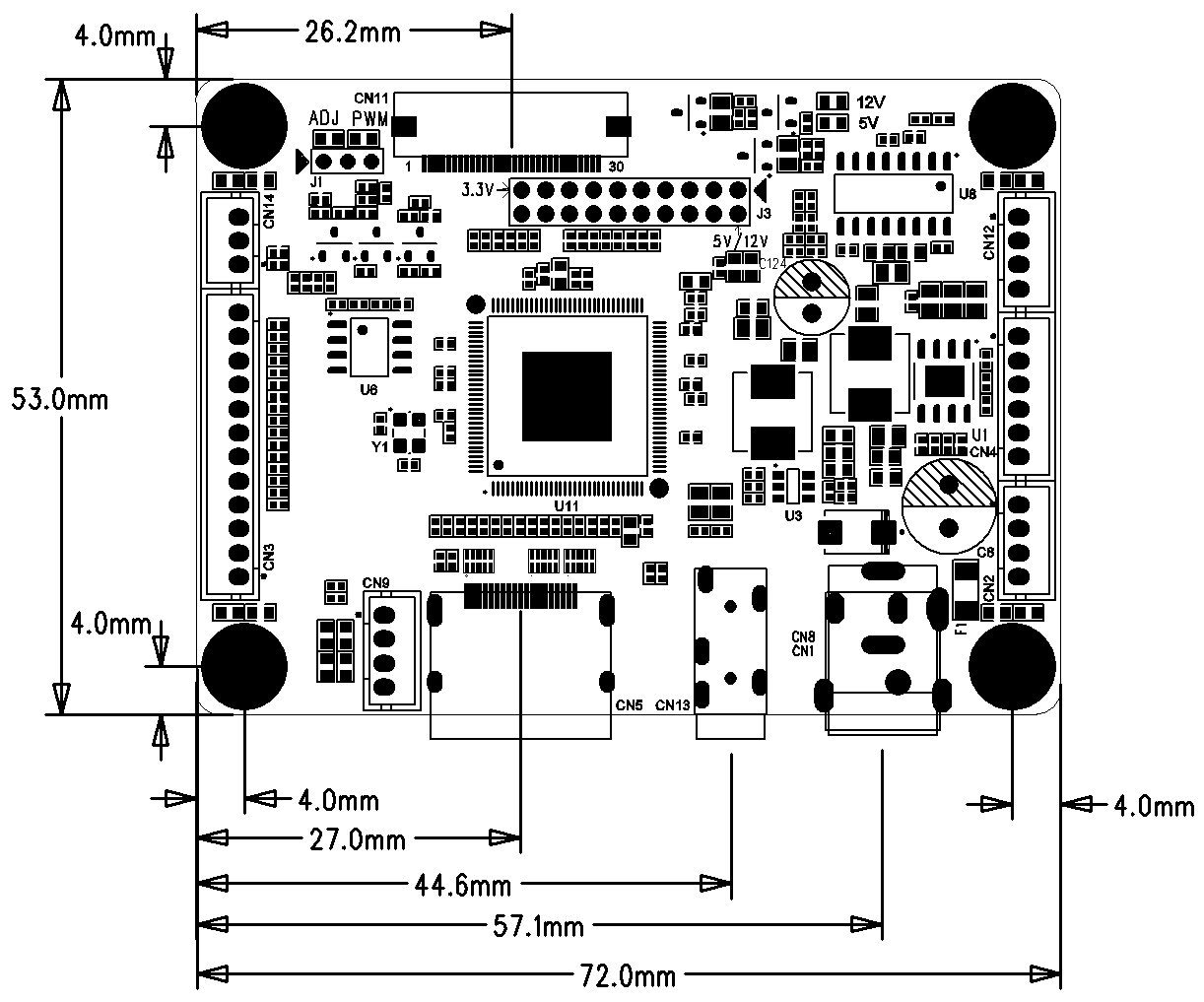

Technical Drawing

The H2E25BE_E_V3.0 is a versatile display driver board designed for high-performance visual applications. Featuring HDMI input and 2-lane eDP output, it supports resolutions up to 1920×1200@60Hz. With 3.5mm headphone output, 3W dual-channel audio, low standby power, and 12V input, it combines efficiency, quality, and flexibility in one compact solution.

Industrial HDMI Driver Board 30 Pin LCD Driver Board 1920×1200 60Hz Resolution

LCD Display EDP Interface PIN Definition


PIN Signal Description
1 NC NO Connect
2 LED_VCCS LED Power
3 LED_VCCS LED Power
4 LED_VCCS LED Power
5 LED_VCCS LED Power
6 NC NO Connect
7 NC NO Connect
8 LED_PWM LED Backlight Adjust
9 LED_EN LED Backlight Enable
10 GND Ground
11 GND Ground
12 GND Ground
13 GND Ground
14 HPD Hot Plug Detect
15 GND Ground
16 GND Ground
17 NC NO Connect
18 3V3_PANEL Panel Power
19 3V3_PANEL Panel Power
20 GND Ground
21 AUX- Component Signal for Auxiliary Channel
22 AUX+ True Signal for Auxiliary Channel
23 GND Ground
24 D0- Display Port Lane 0- Output
25 D0+ Display Port Lane 0+ Output
26 GND Ground
27 D1- Display Port Lane 1- Output
28 D1+ Display Port Lane 1+ Output
29 GND Ground
30 NC NO Connect

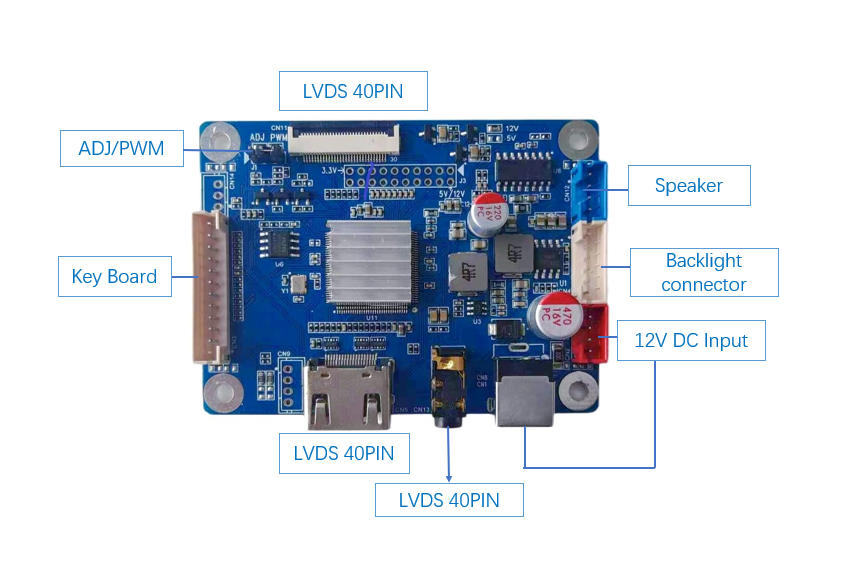

Product Picture

The H2E25BE_E_V3.0 is a versatile display driver board from Shenzhen Yingzhanying Technology. It features one HDMI input and a 2-lane eDP output, supporting resolutions up to 1920x1200@60Hz. The board includes 3.5mm headphone output and a 3W dual-channel audio amplifier. With 12V DC power input, it boasts low standby power consumption of <0.2W. It offers comprehensive control interfaces for buttons, backlight (PWM/ADJ selectable), and expandable I²C/Serial communication, making it a compact and efficient solution for various display applications.

Industrial HDMI Driver Board 30 Pin LCD Driver Board 1920×1200 60Hz Resolution


Customization Options

The EDP/HDMI Driver Board offers multiple customization options to meet diverse application requirements:

Logo & Silk Printing: Custom branding and markings on the board.

Board Structure: Size, dimensions, and interface layout can be adjusted to fit your system.

Interface Definition & Quantity: Interfaces can be modified or added, such as including VGA or other connectors.

Resolution & Performance: Higher resolutions and frame rates can be achieved by selecting an appropriate driver IC.
