5-inch RGB Interface LCD Driver Board with 5V DC Type-C Input Hd-MI Signal Input
800*480 Resolution -20~70°C Operating RGB 40 PINHigh compatibility(Windows, Android, Raspberry Pi)
Product Features
The YB050WVR-P01 is a 5-inch LCD monitor driver board from Shenzhen Yingzhanying Technology Co.,Ltd, supporting 800×480 resolution. It features HDMI signal input (via CN1 interface) and multi-point capacitive touch—with J4 6Pin FPC touch interface and J5 Type-C USB for touch signal transmission. Powered by DC 5V (through J8608 Type-C connector) and equipped with a J8609 0.5mm 40Pin RGB display interface for stable image output, it has a standby power consumption of <0.2W, combining practicality and efficiency in a compact solution.
Brand Name YZY Driver board
Place of Origin
 Guangdong, China
Type 5-inch RGB Interface LCD Driver Board Item No. YB050WVR-P01
Interface HDMI+RGB Outline Dimensions 120.7*97 mm
Operating Temp. -20 ~ +70 °C Touch Multi-point Capacitive Touch (J4 FPC-6Pin)
Storage Temp. -40 ~ +85 °C Expand Button panel speaker
Highlight Small RGB 40PIN Industrial Control Specification High Compatibility Driver Board

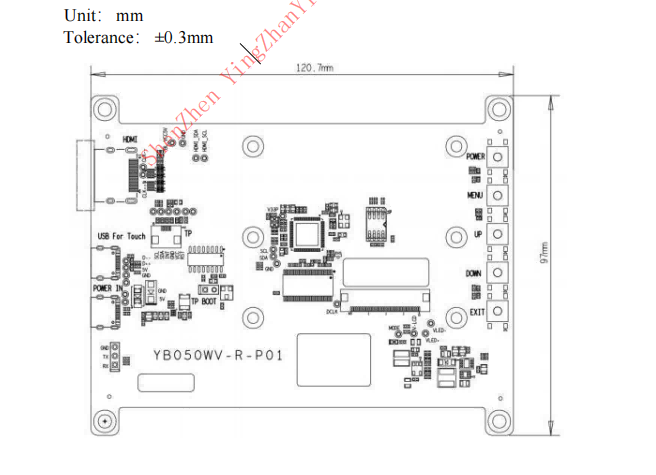

Technical Drawing

5 Inch RGB Interface LCD Driver Board With 5V DC Type C Input HDMI Signal Input

LCD Display RGB Interface PIN Definition
PIN Signal Description
1 VLED+ Power for LED backlight (Anode)
2 VLED- Power for LED backlight (Cathode)
3 GND Power Ground
4 VDD Power for Panel
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data (MSB)
21 B0 Bule data (LSB)
22 B1 Bule data
23 B2 Bule data
24 B3 Bule data
25 B4 Bule data
26 B5 Bule data
27 B6 Bule data
28 B7 Bule data (MSB)
29 GND Power Ground
30 DCLK Red data
31 MODE DE/SYNC mode select
32 HSYNC HORIZONTAL SYNC
33 VSYNC VERTICAL SYNC
34 DEN DATA ENABLE
35 NC
36 GND Power Ground
37 NC
38 NC
39 NC
40 NC

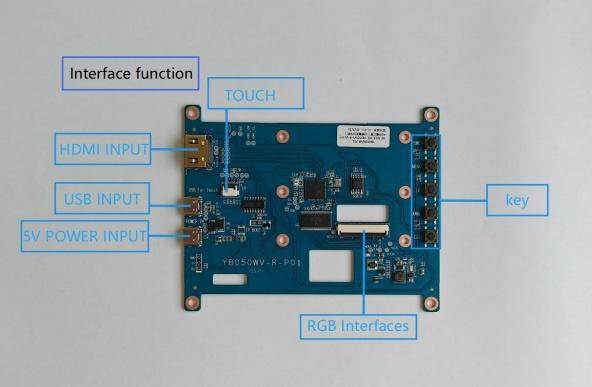

Product Picture

The YB050WVR-P01 from Shenzhen Yingzhanying Technology is a compact 5-inch LCD driver board supporting 800×480 resolution, featuring HDMI input, LVDS display output, multi-point capacitive touch, 5V power supply, audio output (headphone + dual speakers), and low standby power, ideal for efficient 5-inch LCD display applications.

5 Inch RGB Interface LCD Driver Board With 5V DC Type C Input HDMI Signal Input

Customization Options

The RGB/HDMI Driver Board offers multiple customization options to meet diverse application requirements:

Logo & Silk Printing: Custom branding and markings on the board.

Board Structure: Size, dimensions, and interface layout can be adjusted to fit your system.

Interface Definition & Quantity: Interfaces can be modified or added, such as including VGA or other connectors.

Resolution & Performance: Higher resolutions and frame rates can be achieved by selecting an appropriate driver IC.
