Specifications
Brand Name :
YZY
Model Number :
GME64128-12
Certification :
CE, ROHS
Place of Origin :
Guangdong, China
MOQ :
1000 pieces
Price :
$1.29~2.99/pieces
Payment Terms :
T/T
Supply Ability :
10000 pieces
Delivery Time :
14-60 days
Packaging Details :
8*8*4
Description

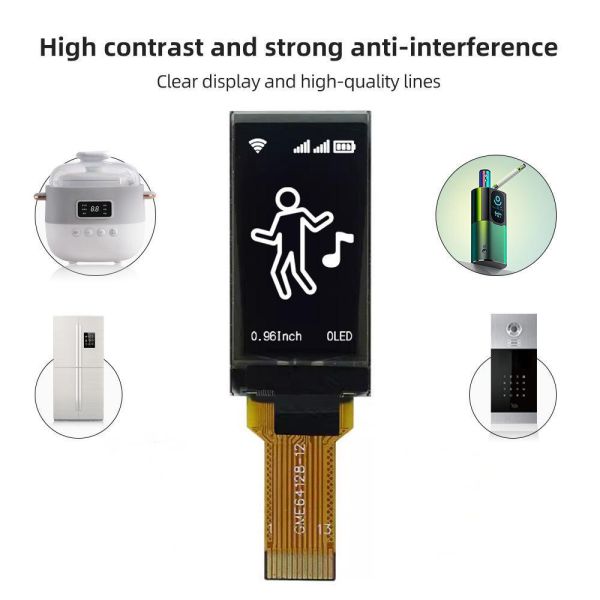

0.96 Inch OLED Display Module 128x64 Resolution with I2C/SPI Interface
This high-performance 0.96-inch OLED display module features a 128×64 dot matrix resolution and supports dual I2C/SPI interfaces for flexible integration. Equipped with SH1107 driver IC and COG (Chip on Glass) packaging, it offers an excellent aperture rate of 78% and clear visual performance. With a compact design, precise pixel parameters, and reliable structure, it's ideal for portable electronics, IoT devices, DIY projects, smart sensors, and small-scale display applications requiring high integration and space-saving solutions.
Key Specifications
Product0.96 inch OLED ModuleModule NumberGME64128-12
Resolution128(H)×64(V) dotsDisplay ColorWhite
Active Area10.86(W)×21.74(H) mmInterface TypeI2C / SPI
Pixel Pitch0.17(W)×0.17(H) mmPixel Size0.15(W)×0.15(H) mm
Driver ICSH1107Aperture Rate78%
IC Package TypeCOG (Chip on Glass)FPC P/NTBD
Product Highlights: 0.96-inch OLED display, 128×64 resolution, SH1107 driver IC, dual I2C/SPI interfaces, 78% aperture rate, 0.17×0.17mm pixel pitch, COG packaging, compact size, white monochrome display, high integration, ideal for space-constrained devices
Technical Features
  • COG (Chip on Glass) packaging technology ensures compact size and high reliability, perfect for space-limited electronic devices
  • Dual I2C/SPI interface support provides flexible connection options, compatible with mainstream MCUs (Arduino, Raspberry Pi, etc.)
  • 78% high aperture rate maximizes light transmittance, delivering clear and vivid display effects for text and simple graphics
  • Precise pixel parameters (0.17mm pitch, 0.15mm size) ensure sharp image quality and uniform display performance
  • Sturdy structural design with cover glass and polarizer protection, enhancing durability and resistance to external impacts
  • Optimized FPC design for easy soldering and integration, reducing assembly difficulty and improving production efficiency
  • Compliant with standard display module design specifications, ensuring strong compatibility with existing system architectures
Pin Definition
PINSymbol
1NC
2VPP
3VCOMH
4VDD
5IM1
6IREF
7CS
8RES
9DC
10D0
11D1
12VSS
13NC
Application Scenarios
  • Portable electronic devices (handheld meters, mini data loggers, portable detectors)
  • IoT terminals and smart sensors (environmental monitors, wireless controllers, sensor nodes)
  • DIY electronics and hobby projects (Arduino/Raspberry Pi compatible displays, maker projects)
  • Small-scale consumer electronics (smart home remote controls, mini POS machines, wearable accessories)
  • Industrial control auxiliary displays (compact PLC panels, sensor data indicators)
  • Medical portable equipment (small diagnostic devices, health monitors)
  • Automotive auxiliary displays (in-vehicle small function displays, control panels)

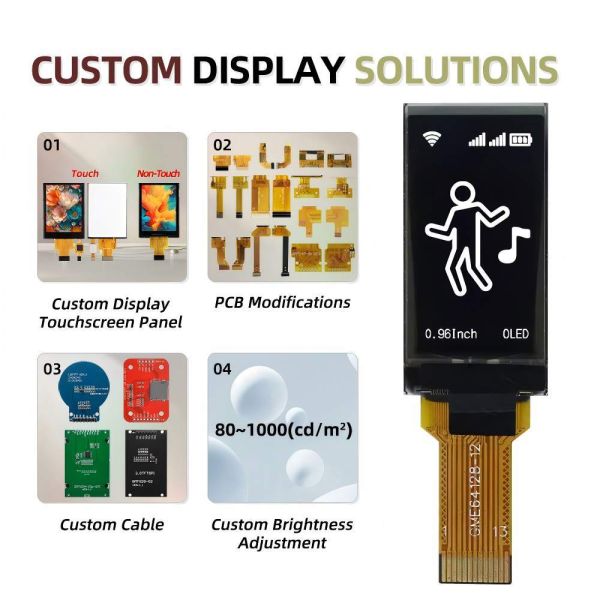

Customization Options
  • FPC Design: Flexible adjustment of FPC length and pin layout to match specific system integration requirements
  • Interface Configuration: Optimized I2C/SPI interface parameters for compatibility with special MCUs or processors
  • Polarizer Customization: Optional polarizer specifications based on viewing angle and contrast requirements
  • Packaging Solution: Custom anti-static packaging, vacuum packaging with desiccant for long-term storage and transportation
  • Quality Inspection: Enhanced quality control and testing processes for bulk orders (aging test, performance calibration)
Handling Notes
  1. Electrostatic Protection: Use anti-static bracelets and grounded tools during handling and assembly. Avoid touching FPC pins, IC chips, or display surfaces directly with bare hands to prevent electrostatic damage.
  2. Cleaning Instructions: The polarizer and cover glass surfaces are scratch-sensitive. Clean gently with lint-free cloth or specialized cleaning tape. Do not use corrosive solvents (alcohol, ketones) as they may damage the display layer.
  3. Storage Conditions: Store in sealed anti-static bags with desiccant at 0℃~30℃ and relative humidity ≤60%. Avoid direct sunlight, high temperature/humidity, or extreme cold environments. Reseal immediately after partial use.
  4. Assembly Precautions: Do not apply excessive pressure to the glass panel or bend the FPC forcibly (bending radius ≥5mm). Ensure correct pin soldering (soldering temperature ≤260℃, soldering time ≤3 seconds) to avoid damaging the FPC or IC.
  5. Operation Sequence: Follow the correct power-on/power-off sequence (VDD first, then signal pins; power off in reverse order) to protect the driver IC and extend module service life. Avoid long-term fixed-pattern display to prevent image retention.
